Xingyun Water Drop Speed Gate
COMPACT ALUMINUM ALLOY SPEED GATE

Xingyun Water Drop Speed Gate

A shared centre-column design means a single pillar supports both lanes, cutting the footprint of a dual-lane installation by roughly one column's worth of floor space. Delivers 50 persons per minute per lane, opens in under 0.5 seconds, and accepts card, QR code, and face recognition modules as optional add-ons.

50/min
Throughput
<0.5s
Opening Speed
15M cycles
Motor Lifespan
550–1200mm
Passage Width
Request a Quote Download Spec Sheet
✓ 12 Months Factory Warranty
✓ ISO 9001 & CE Certified

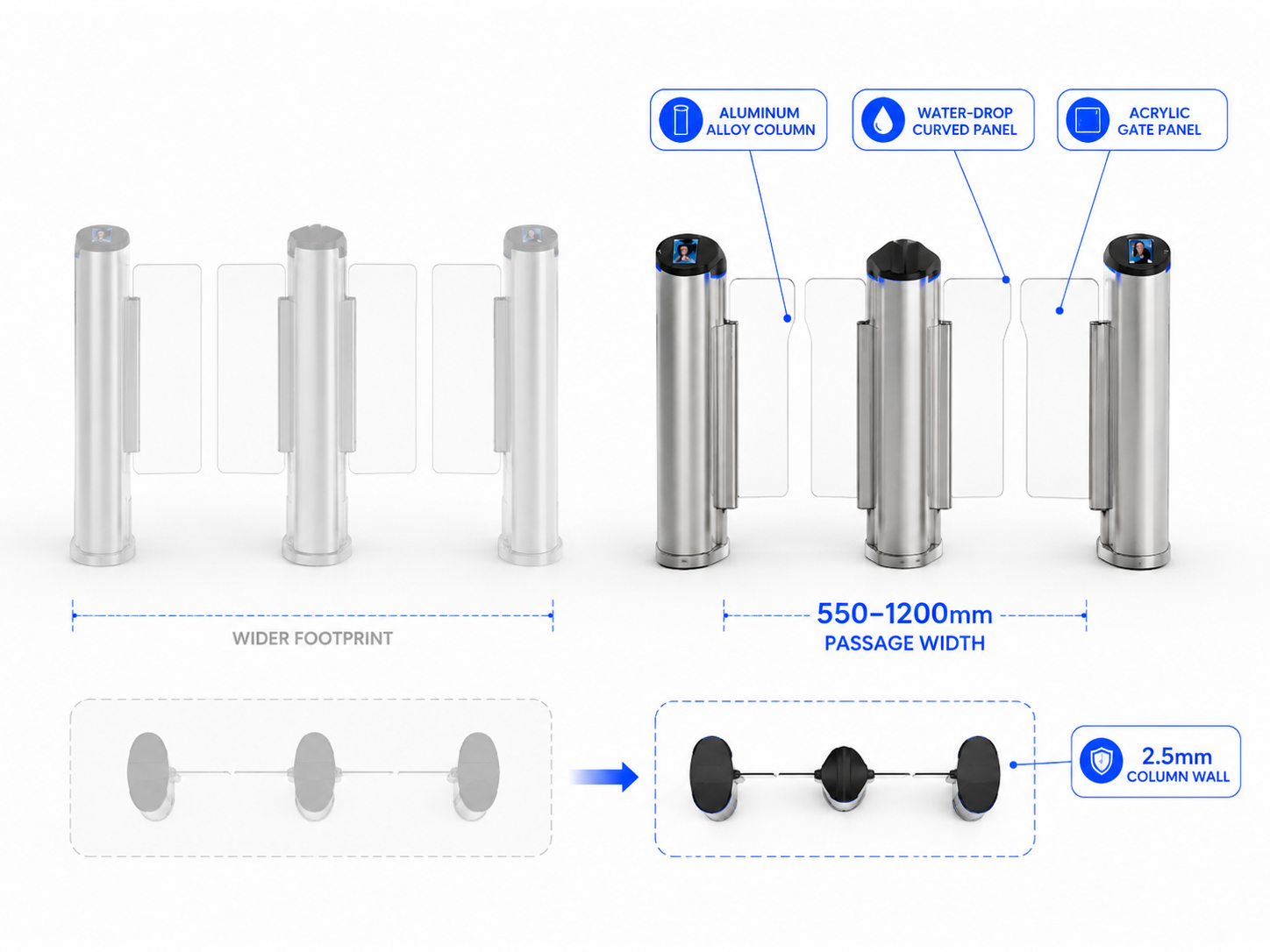

Two Lanes. One Centre Column. Half the Floor Space.

The Xingyun Water Drop gate uses a shared centre-column design — a single pillar supports both gate panels, cutting the footprint of a dual-lane installation significantly. It processes 50 persons per minute per lane, opens in under 0.5 seconds, and runs a 15-million-cycle brushless motor. Suited for shared offices, community entrances, libraries, and exhibition spaces where space is limited and budget is a priority.

Two Lanes. One Centre Column. Half the Floor Space.

Dual-Lane Control in the Space of One and a Half Gates.

Traditional dual-lane installations require three separate pillars. The Xingyun water drop design needs only two — the outer columns plus a single shared centre pillar that supports both lanes simultaneously. That removes one full column's worth of floor space and installation hardware. Water-drop profile panels keep the look clean and the passage feeling open. **Design features:**

Shared centre-column structure dual lanes, reduced footprint
Water-drop curved panel profile fluid lines, open visual feel
Full aluminum alloy chassis 2.5 mm column wall
Acrylic / tempered glass gate panels
Passage width 550–1,200 mm per lane, customizable
Dual-Lane Control in the Space of One and a Half Gates.

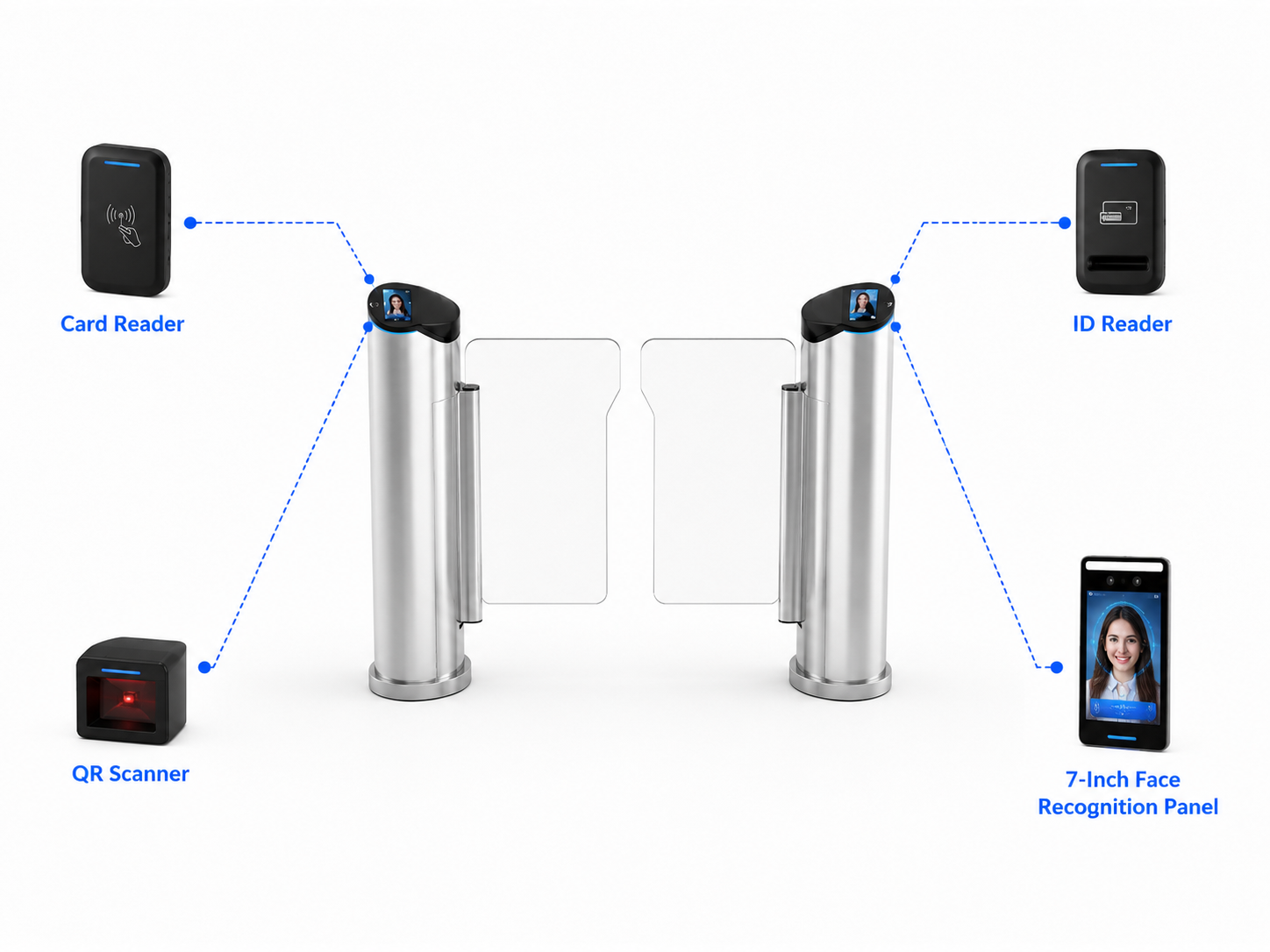

Choose the Credential Level Your Site Needs.

The Xingyun ships as a gate-only unit and accepts credential modules as add-ons: card reader, QR code scanner, ID card reader, and face recognition panel. Buy only what the site requires. All modules connect to the standard ARM controller without additional hardware. **Optional credential modules:**

IC/ID card reader add-on module
QR code scanner add-on module
ID card / passport reader add-on module
Face recognition panel add-on module (7-inch Android panel)
Remote control / button / smart terminal signal input standard
Choose the Credential Level Your Site Needs.

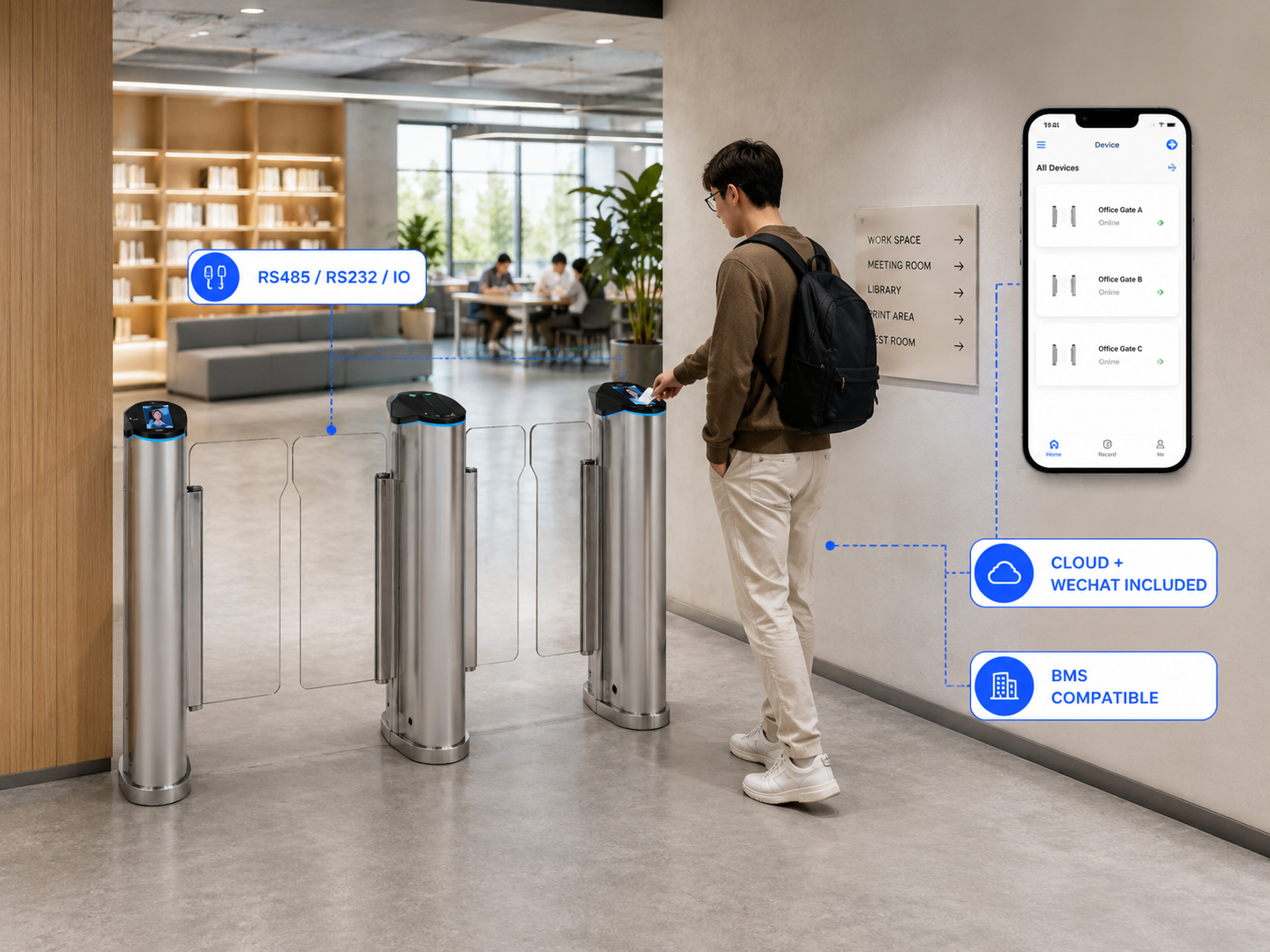

Same Standard Interfaces as Every Gate in the Range.

Gate-open signals are accepted via RS485, RS232, or IO relay. The cloud management platform and WeChat mini-program ship with every unit free of charge. Connect to existing building management or access control software on the first day without custom development. **Integration interfaces:**

RS485 / RS232 / IO gate-open signal
Cloud platform (free) + WeChat mini-program (free)
Compatible with building management systems and third-party access control software
Same Standard Interfaces as Every Gate in the Range.

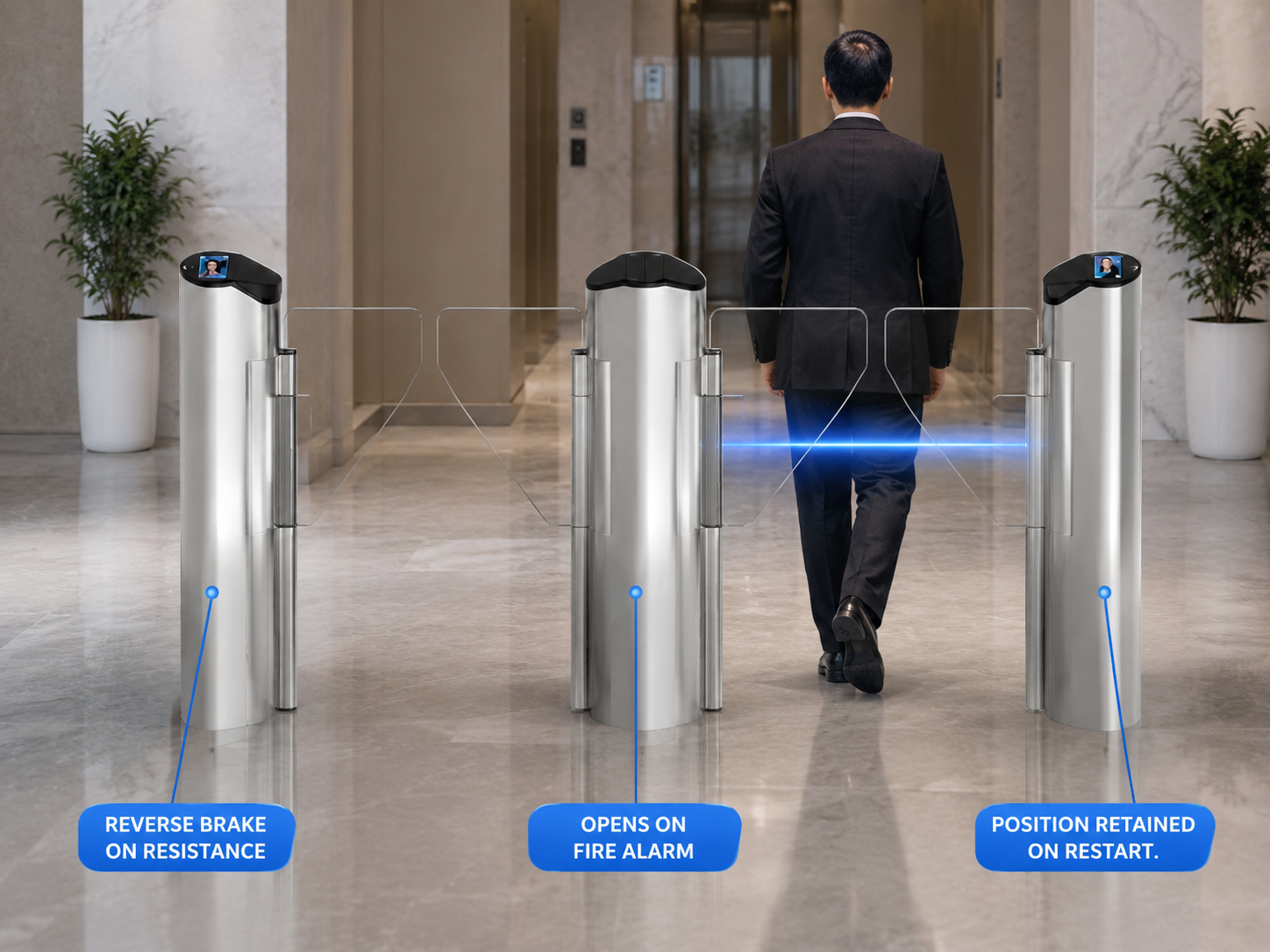

Resistance Detected. Gate Reverses. No Contact Made.

When resistance is detected mid-swing, reverse braking engages with three-stage torque compensation before the panel makes contact. Infrared sensors are available as an optional add-on for tailgate detection. On power cut or fire alarm signal, the gate opens automatically; the ARM controller retains the gate's position so no recalibration is needed on restart. **Safety features:**

Reverse braking + 3-stage torque compensation on resistance
Infrared sensor pair optional add-on (1 pair)
Fire alarm integration gate opens on power cut or fire signal
ARM industrial control core retains gate position on power restoration
Sound + strobe alert on unauthorized entry attempt
Resistance Detected. Gate Reverses. No Contact Made.

Xingyun Water Drop Speed Gate — Complete Technical Specification

Download Spec Sheet
Technical Specifications
Model (single-lane)
ES-YST-01
Model (dual-lane)
ES-YST-02
Chassis material
Aluminum alloy, column wall 2.5 mm
Gate panel material
Acrylic / tempered glass
Passage width
550–1,200 mm (customizable)
Drive motor
DC brushless linear Hall + planetary reducer integrated
Motor power
100 W (peak 350 W)
Motor lifespan
15 million continuous open/close cycles
Gate opening mode
RS485 / RS232 / IO
Infrared sensors
Optional (1 pair)
Throughput
50 persons/minute
Gate opening speed
<0.5 s (adjustable)
Power supply
DC 24 V, 15 A
Operating temperature
-20°C to +75°C
Relative humidity
0–90% (no condensation)
Usage environment
Indoor
Warranty
12 months from factory date
HOW IT WORKS

Credential In. Gate Open. 4 Steps.

Every Xingyun gate follows the same control flow — from credential check to passage — in under a second.

1

Step 1 — Identity Verification

The selected credential module — card, QR code, or face recognition panel — processes the authorization signal. The comparison runs on the ARM control core locally.

2

Step 2 — Controller Signal

The ARM industrial control core sends an open signal via RS485, RS232, or IO relay. Wiegand 26/34 output is available for third-party access control integration.

3

Step 3 — Gate Movement

The brushless motor opens the gate in under 0.5 seconds. The passage holds open for the configured dwell time. Throughput reaches 50 persons per minute per lane.

4

Step 4 — Safety & Reset

Resistance triggers reverse braking and three-stage torque compensation. On power cut, the gate opens automatically and the ARM core retains position — no recalibration on restart.

Credential In. Gate Open. 4 Steps.
COMMON QUESTIONS

What Buyers Ask Before Ordering the Xingyun Water Drop Speed Gate

The shared centre-column design replaces the middle pillar of a conventional two-lane setup with one shared column. That reduces floor space used and the number of pillars to install. The water-drop profile keeps the visual feel open while maintaining the same 50 persons/minute throughput per lane.

Infrared sensors are an optional add-on (1 pair). The base unit ships without them. Buyers who need automatic tailgate detection should add the sensor option at order time.

Card reader, QR code scanner, ID card / passport reader, and face recognition panel (7-inch Android) are all available as add-ons. The base unit accepts a remote control or external button signal as standard.

No — the Xingyun is rated for indoor use. For outdoor installation, the Xingyao Waterproof series (IP65) is the correct product.

15 million continuous open/close cycles. The brushless motor requires no brush replacement and minimal scheduled maintenance beyond periodic lubrication of mechanical parts.
