Xingyao Waterproof Speed Gate
IP65 WATERPROOF SPEED GATE

Xingyao Waterproof Speed Gate

Carries an IP65 protection rating — fully sealed against dust and resistant to direct water jets — so it installs at outdoor plazas, transport hubs, and covered entrances without a separate weather enclosure. Processes 50 persons per minute with a 15-million-cycle brushless motor, and supports face recognition, card, and QR code on one integrated panel.

IP65
Protection Rating
50/min
Throughput
<0.5s
Opening Speed
15M cycles
Motor Lifespan
Request a Quote Download Spec Sheet
✓ 12 Months Factory Warranty
✓ ISO 9001 & CE Certified

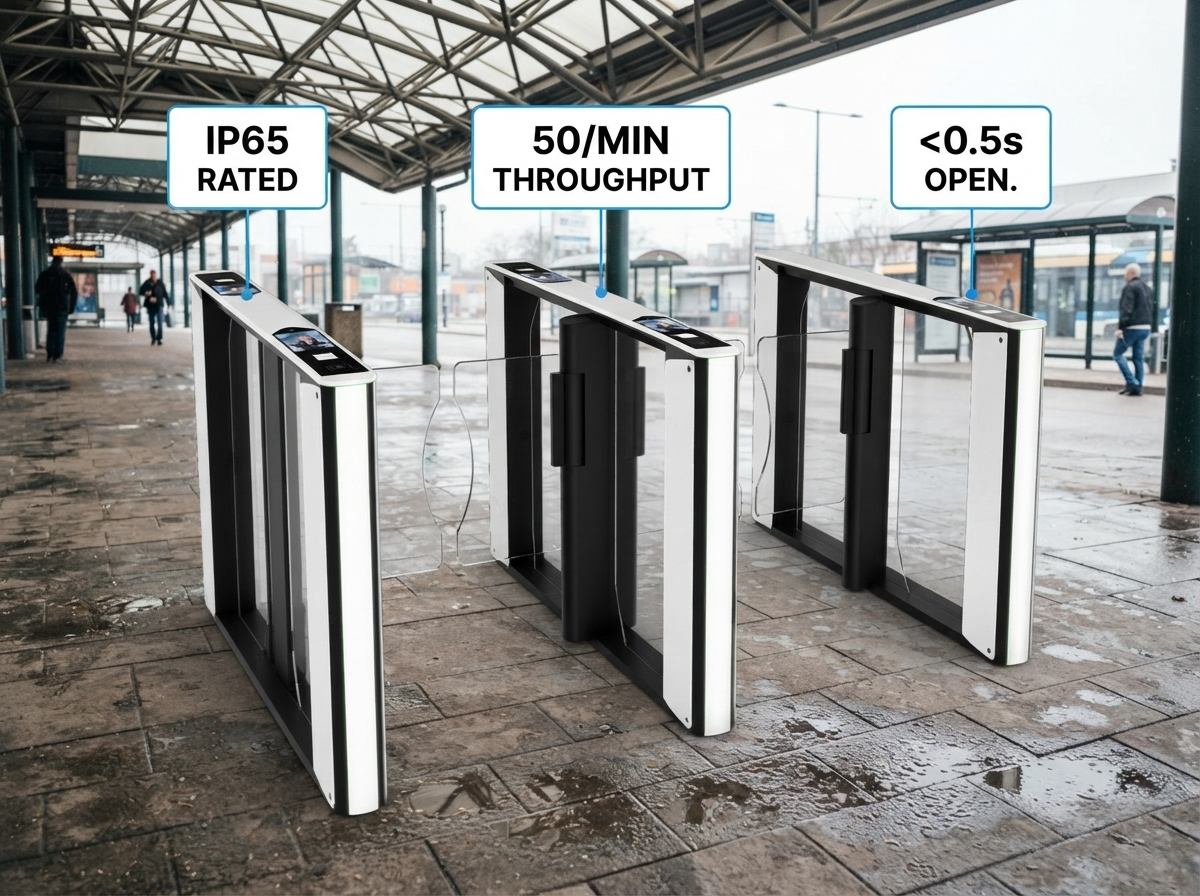

IP65-Rated. 50 People Per Minute. Built for Indoors and Out.

The Xingyao Waterproof speed gate carries an IP65 protection rating — dust-proof and water-jet resistant — so it installs at outdoor plazas, transport hubs, and covered entrances without needing a separate weather enclosure. It processes 50 persons per minute through passages from 550 mm to 1,200 mm, opens in under 0.5 seconds, and runs on a 15-million-cycle brushless motor. Face recognition, card, and QR code on one integrated panel.

IP65-Rated. 50 People Per Minute. Built for Indoors and Out.

Outdoor-Ready Without Weatherproofing Extras.

IP65 means the entire unit is sealed against dust ingress and withstands direct water jets from any direction. Core components receive additional sealing treatment. The operating temperature range spans -20°C to +75°C — stable through summer heat, cold winters, and coastal humidity. No separate canopy required for standard outdoor deployment. **Environmental specs:**

IP65 protection rating full dust seal, water-jet resistant
Operating temperature: -20°C to +75°C
Relative humidity: 0–90% (no condensation)
Usage environment: indoor and outdoor
Core components additionally sealed for long-term outdoor operation
Outdoor-Ready Without Weatherproofing Extras.

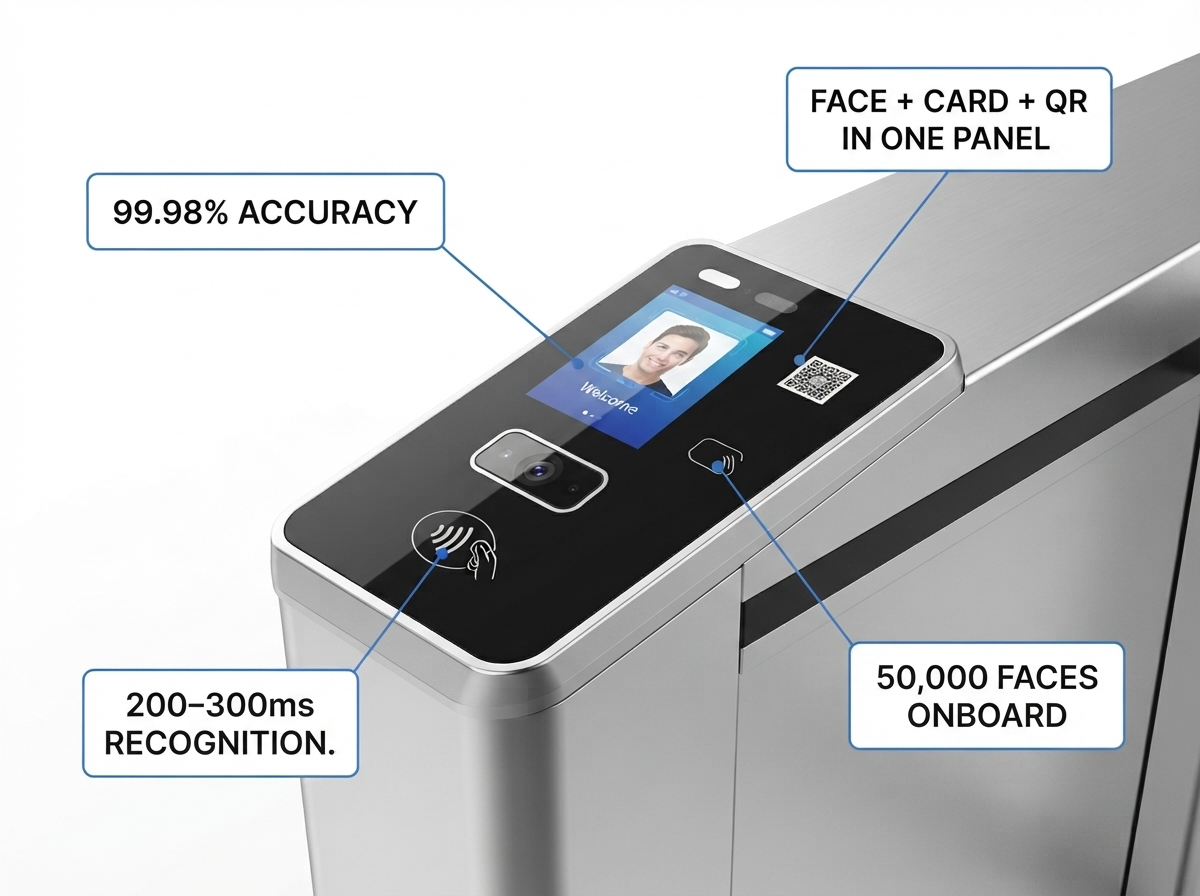

Face, Card, QR Code and ID Card. One Panel. Zero Compromise.

The integrated face recognition panel stores 50,000 face templates and recognizes at 99.98% accuracy in 200–300 ms. Card and QR code readers are built into the same unit — no external hardware bolted to the gate body. The ID card / passport module adds optional physical document verification. Multi-modal combinations run simultaneously. **Supported credential methods:** **Face panel specs (when fitted):**

Face recognition 99.98% accuracy, 200–300 ms, 50,000-face onboard capacity
IC/ID card integrated into face panel
QR code scanning integrated into face panel
ID card / passport module optional add-on
Remote control / button / smart terminal signal input
Android OS, 2 GB RAM, 32 GB storage
7-inch display, 800×1,280 resolution
2 MP RGB wide-dynamic camera + 2 MP IR camera
Recognition distance 0.5–3 m
Offline records: 100,000 with photos / 1,000,000 without photos
Face, Card, QR Code and ID Card. One Panel. Zero Compromise.

Standard Interfaces. Connects to What You Already Have.

Gate-open signals are accepted via RS485, RS232, or IO relay — the same interfaces used by most building management systems and fire alarm panels. The cloud management platform and WeChat mini-program ship with every unit at no additional cost. No server hardware purchase required. **Integration interfaces:**

RS485 / RS232 / IO gate-open signal
Cloud platform (free) + WeChat mini-program (free)
IPS high-definition display optional for advertising or wayfinding
Compatible with third-party access control software via standard IO relay
Standard Interfaces. Connects to What You Already Have.

Anti-Crush. Anti-Tailgate. Fires Open It Automatically.

When resistance is detected mid-swing, reverse braking engages with three-stage torque compensation before contact. Six infrared sensor pairs (seven optional) monitor the passage continuously; a second person following through triggers an immediate re-close. On power cut or fire alarm signal, the gate opens and locks open — the ARM industrial controller retains the gate's absolute position so no recalibration is needed on restart. **Safety features:**

Reverse braking + 3-stage torque compensation on resistance
6 infrared sensor pairs standard, 7 pairs optional
Fire alarm integration gate opens automatically on power cut or fire signal
ARM industrial control core retains gate position on power restoration
Sound + strobe alert on unauthorized entry attempt
Three-state indicator light for clear passage status
Anti-Crush. Anti-Tailgate. Fires Open It Automatically.

Xingyao Waterproof Aluminum Alloy Speed Gate — Complete Technical Specification

Download Spec Sheet
Technical Specifications
Models (without face panel)
ES-XY-ST01 (single-lane) / ES-XY-ST02 (dual-lane)
Models (with face panel)
ES-XY-STF01 / ES-XY-STF02-S / ES-XY-STF02-D
Chassis material
Full aluminum alloy — top cover 6 mm, column wall 3 mm
Gate panel material
Acrylic / tempered glass
Passage width
550–1,200 mm (customizable)
Drive motor
DC brushless linear Hall + planetary reducer integrated
Motor power
100 W (peak 350 W)
Motor lifespan
15 million continuous open/close cycles
Gate opening mode
RS485 / RS232 / IO
Infrared sensors
6 pairs standard (7 pairs optional)
Throughput
50 persons/minute
Gate opening speed
<0.5 s (adjustable)
Power supply
DC 24 V, 15 A
IP rating
IP65
Operating temperature
-20°C to +75°C
Relative humidity
0–90% (no condensation)
Usage environment
Indoor and outdoor
Face panel OS
Android
Face panel RAM / Storage
2 GB / 32 GB
Face panel display
7-inch, 800×1,280
Face capacity
50,000 faces
Offline records
100,000 (with photos) / 1,000,000 (without photos)
Recognition distance
0.5–3 m
Recognition speed
200–300 ms
Camera
2 MP RGB wide-dynamic + 2 MP IR
Warranty
12 months from factory date
HOW IT WORKS

Credential In. Gate Open. 4 Steps.

Every Xingyao Waterproof gate follows the same control flow — from identity check to passage — in under a second.

1

Step 1 — Identity Verification

The face recognition panel detects the user at 0.5–3 m and completes recognition in 200–300 ms at 99.98% accuracy. The onboard processor handles the comparison locally — no cloud round-trip needed. Card or QR readers run in parallel if that credential is selected.

2

Step 2 — Controller Signal

The ARM industrial control core receives the verification result and sends an open signal via RS485, RS232, or IO relay. Wiegand 26/34 output is available for third-party platform integration.

3

Step 3 — Gate Movement

The brushless motor opens the gate in under 0.5 seconds. The passage stays open for the configured dwell time before resetting. Throughput reaches 50 persons per minute at continuous flow.

4

Step 4 — Safety & Reset

Resistance triggers reverse braking and three-stage torque compensation. Infrared sensors re-close the gate on tailgate detection. On power cut, the gate opens automatically and the ARM core retains position — no recalibration on restart.

Credential In. Gate Open. 4 Steps.
COMMON QUESTIONS

What Buyers Ask Before Ordering the Xingyao Waterproof Speed Gate

IP65. That means fully sealed against dust and resistant to direct water jets from any direction. It deploys outdoors without a separate weather enclosure across its -20°C to +75°C operating temperature range.

50 persons per minute in continuous flow. The gate opens in under 0.5 seconds and the passage width is configurable from 550 mm to 1,200 mm to match the site layout.

Gate-open signals are accepted via RS485, RS232, or IO relay — standard on most building management and access control platforms. The cloud platform and WeChat mini-program ship with every unit free of charge.

50,000 face templates stored locally. Recognition runs at 99.98% accuracy in 200–300 ms without a cloud connection. Offline record capacity is 100,000 entries with photos or 1,000,000 without.

Yes. Reverse braking and three-stage torque compensation engage automatically when resistance is detected — a hardware-level response, not software-dependent. The gate reverses before contact is made.

Standard orders ship from EASCO's Shenzhen factory within the quoted production window. Contact EASCO via WhatsApp (+86 13711422283) or email hwenyin280@gmail.com with your model, lane count, passage width, and destination for a confirmed lead time and quote.
