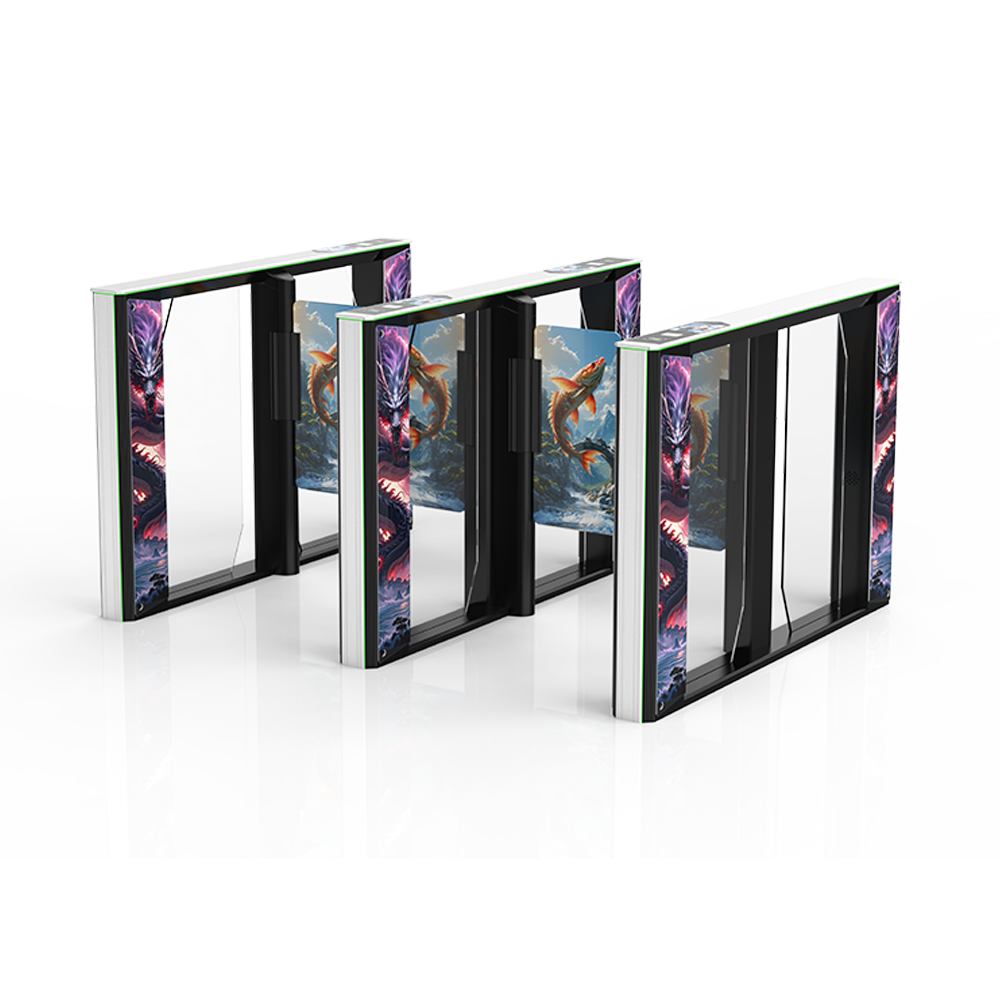

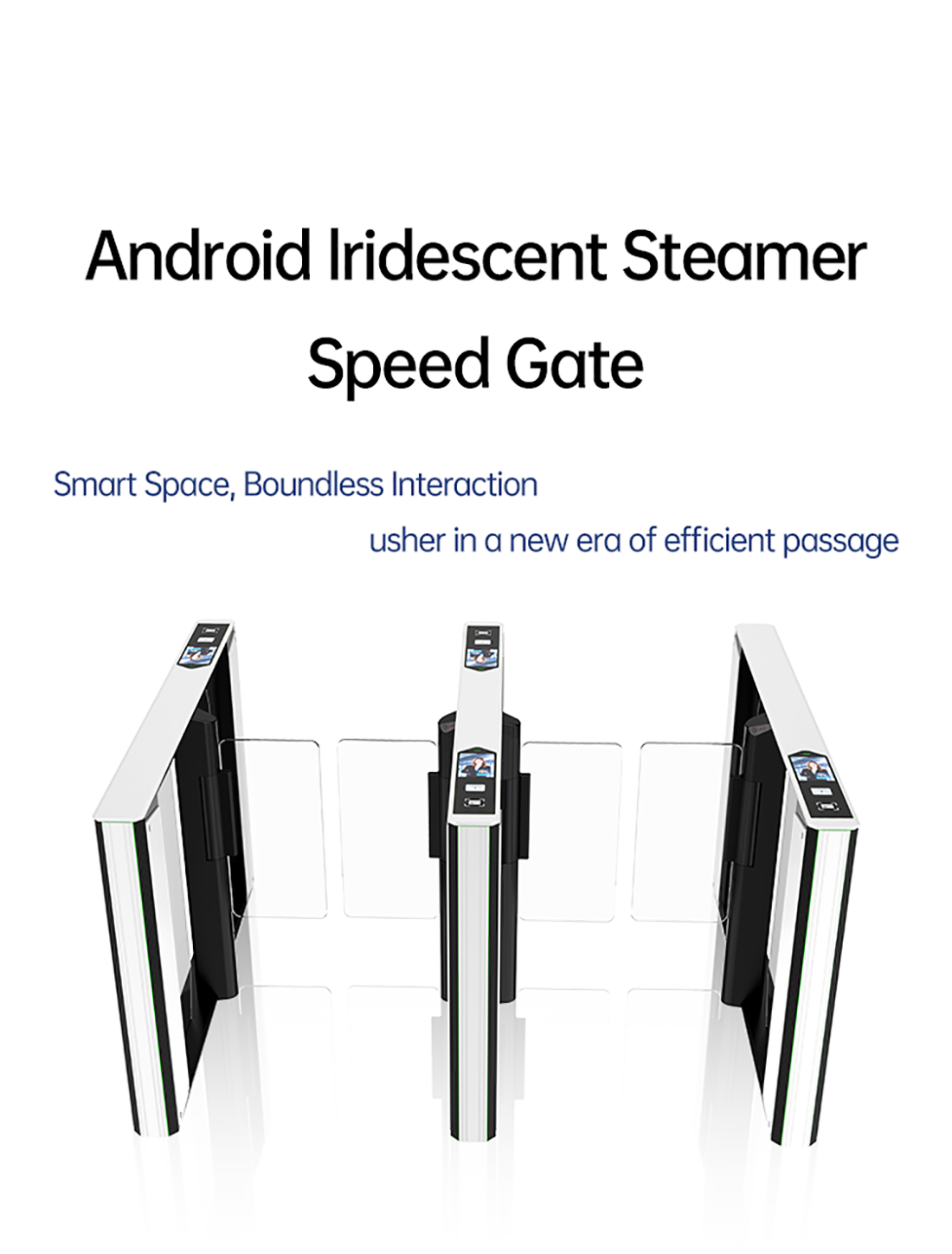

JF1 Face + Card Reading + QR Code Recognition+Android Speed Gate

share
copy Link
Facebook
X
LinkedIn
Pinterest
Operating System Android
Memory 2G
Storage 32G
Display Screen 7 inches, resolution 800*1280
Face Capacity 100,000 faces
Offline Records 100,000 records (including photos), 1,000,000 records (excluding photos)
Recognition Distance 0.5m - 3m
Recognition Speed 200 - 300ms
Face Recognition Accuracy 99.98%
RGB Camera 2 million high-definition pixels, wide dynamic range
Infrared Camera 2 million high-definition pixels
System Languages Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Turkish, Italian, French, Hebrew (other languages supported via customization)
Chat for more Info
Leave your message
DetailProduct ParametersProduct DimensionCompany InformationPackaged and shipped

星际英文_01-1.png星际英文_01-2.png星际英文_02-1.png星际英文_02-2.png星际英文_03.png星际英文_04.png星际英文_05.png星际英文_06.png

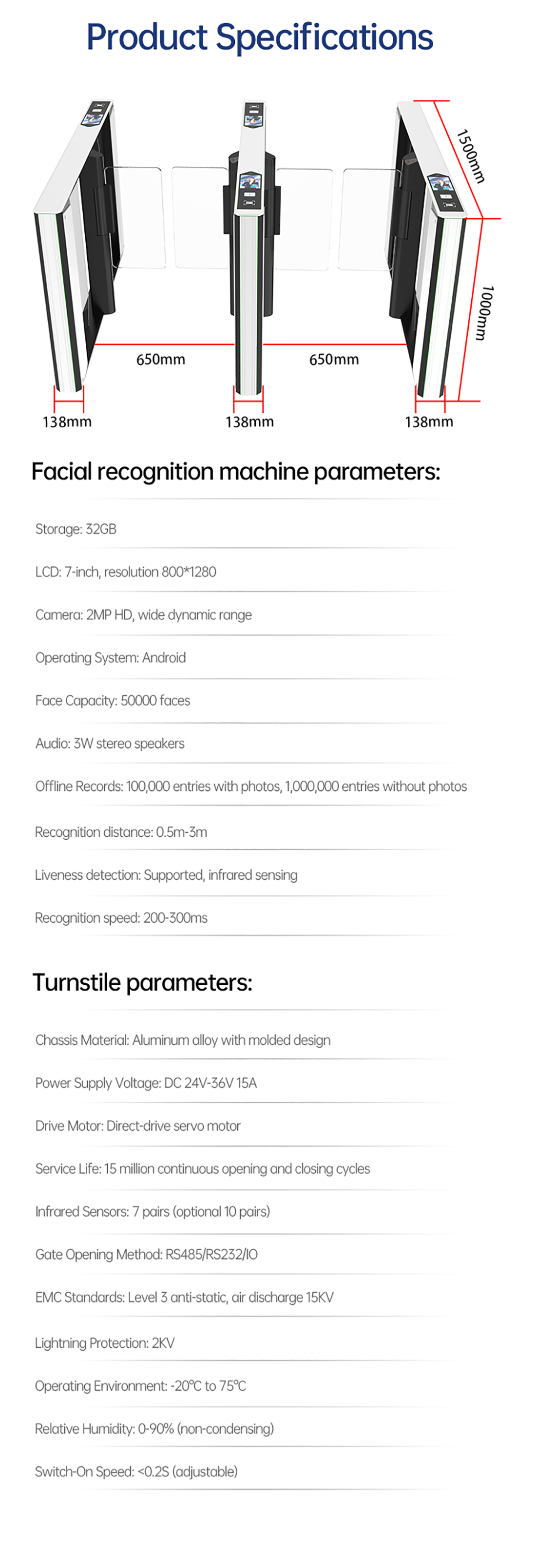

Face Recognition Device Parameters

* Operating System: Android
* Memory: 2G
* Storage: 32G
* Display Screen: 7 inches, resolution 800*1280
* Face Capacity: 100,000 faces
* Offline Records: 100,000 records (including photos), 1,000,000 records (excluding photos)
* Recognition Distance: 0.5m - 3m
* Recognition Speed: 200 - 300ms
* Face Recognition Accuracy: 99.98%
* RGB Camera: 2 million high-definition pixels, wide dynamic range
* Infrared Camera: 2 million high-definition pixels
* System Languages: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Turkish, Italian, French, Hebrew (other
   languages supported via customization)

Turnstile Parameters

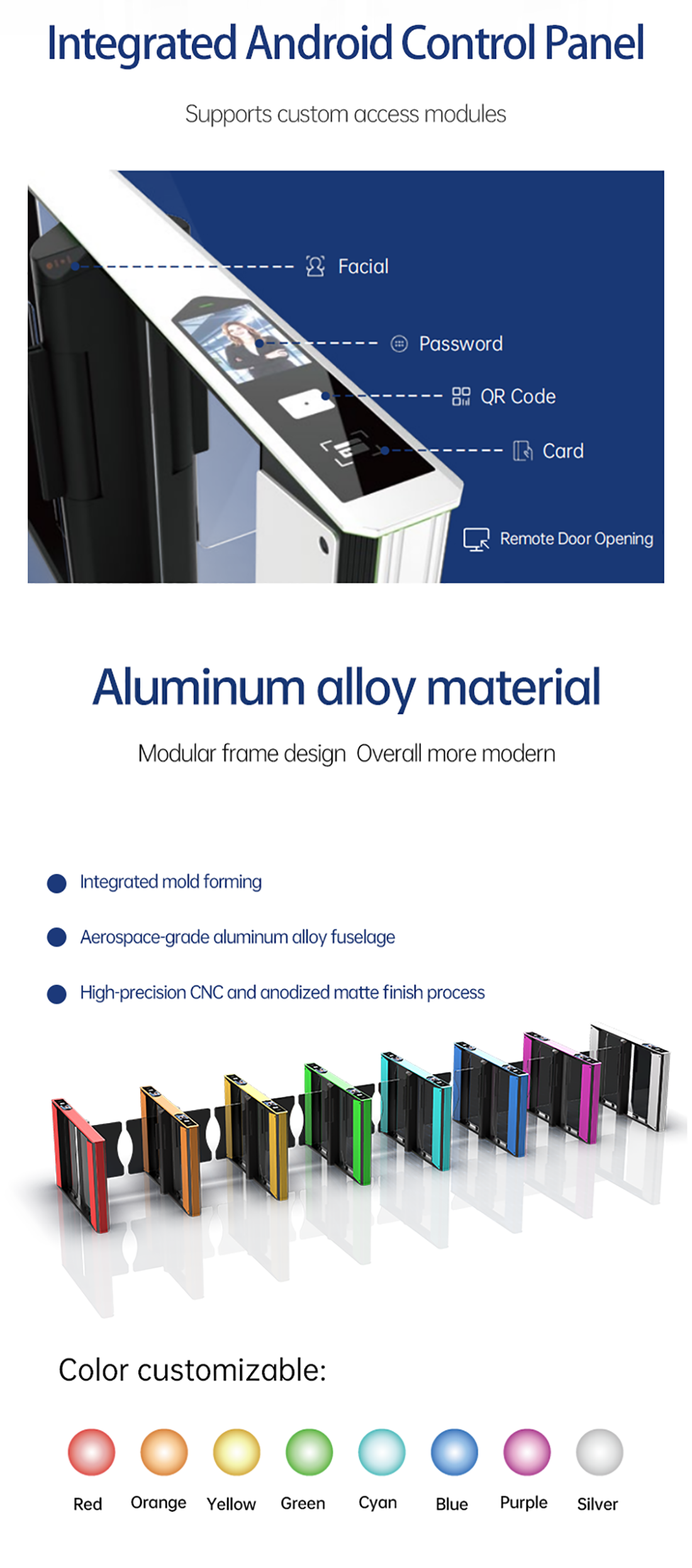

Chassis Material
Full aluminum alloy material for the whole machine (custom mold), top cover thickness 10mm, column thickness 3mm
Production Process
Integrated mold forming, high-precision CNC
Passage Width
650mm-900mm, customizable
Passage Efficiency
50 persons per minute

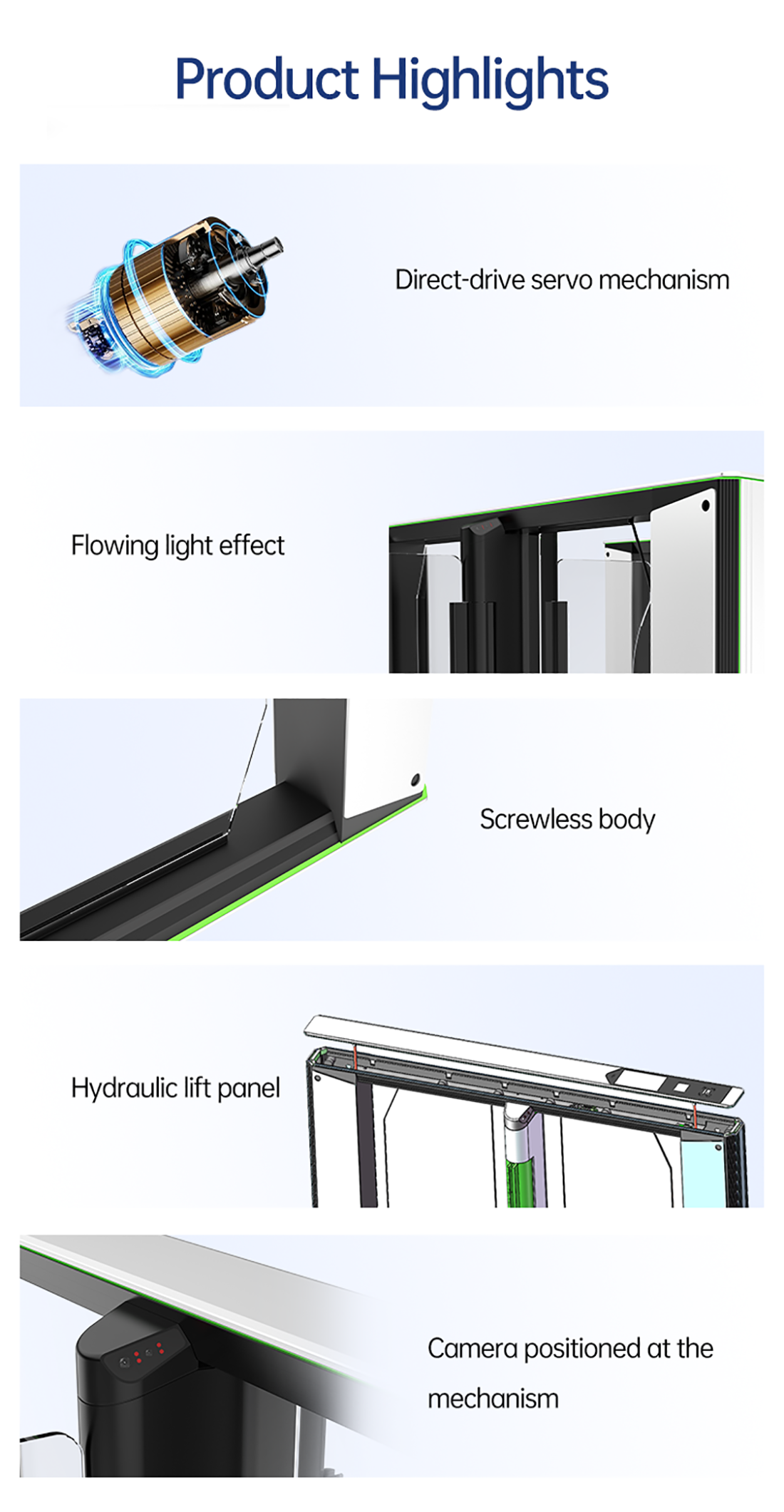

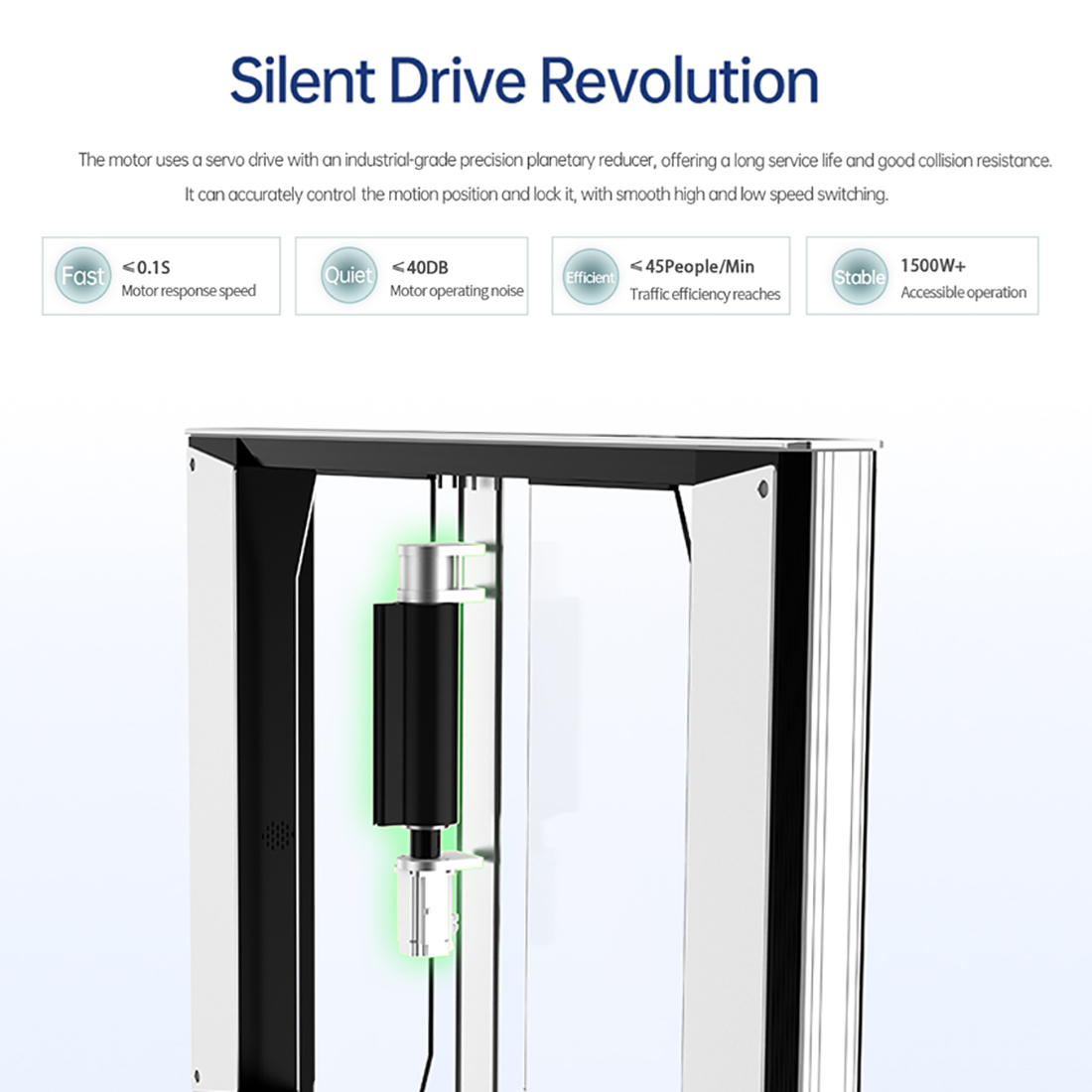

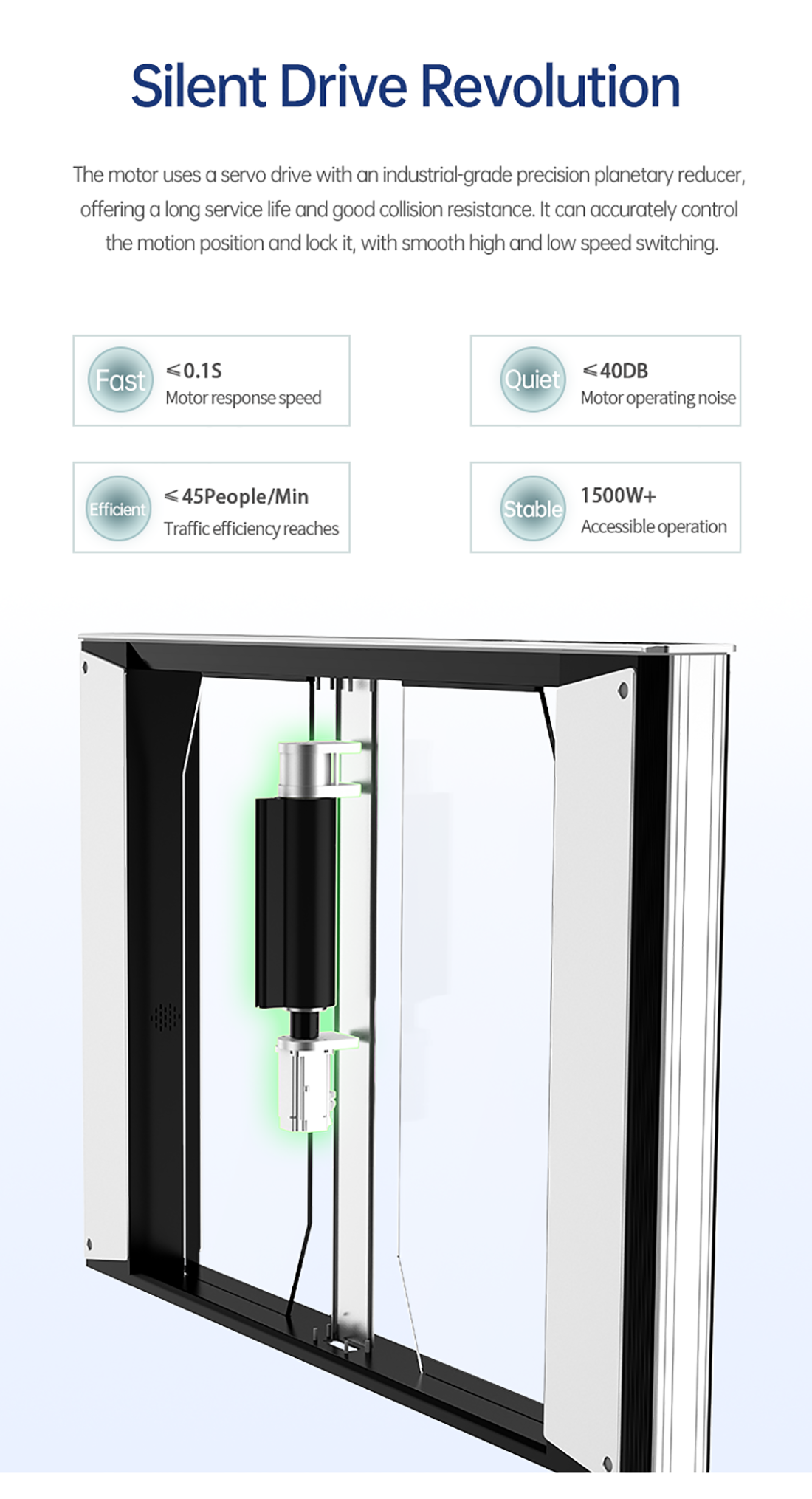

Drive Motor
Direct-drive servo motor
Motor Lifespan
15 million continuous opening-closing cycles
Gate Opening Mode
RS485/RS232/10
Baffle Material
8mm tempered glass
Door Panel Material
10mm acrylic / tempered glass
Infrared Sensing
7 pairs (10 pairs optional)
Gate Opening Speed
<0.5S (adjustable)
Power Supply Voltage
DC24V-36V 15A
Working Environment
-20℃~75℃
Relative Humidity
0~90% (no condensation)

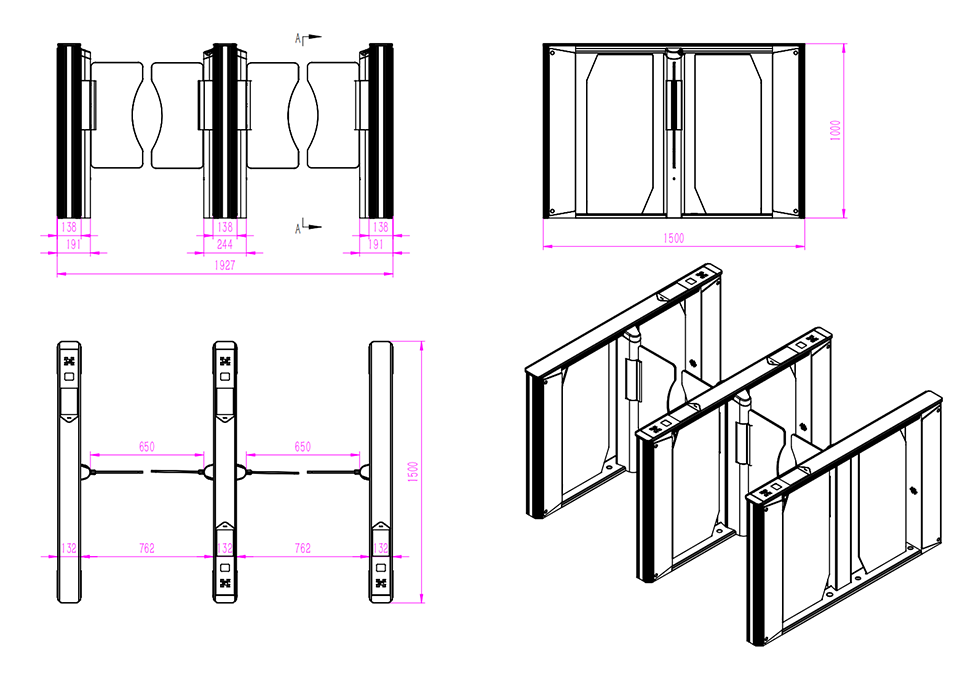

Dimensions
1500 (length) * 138 (width) * 1000 (height) mm
