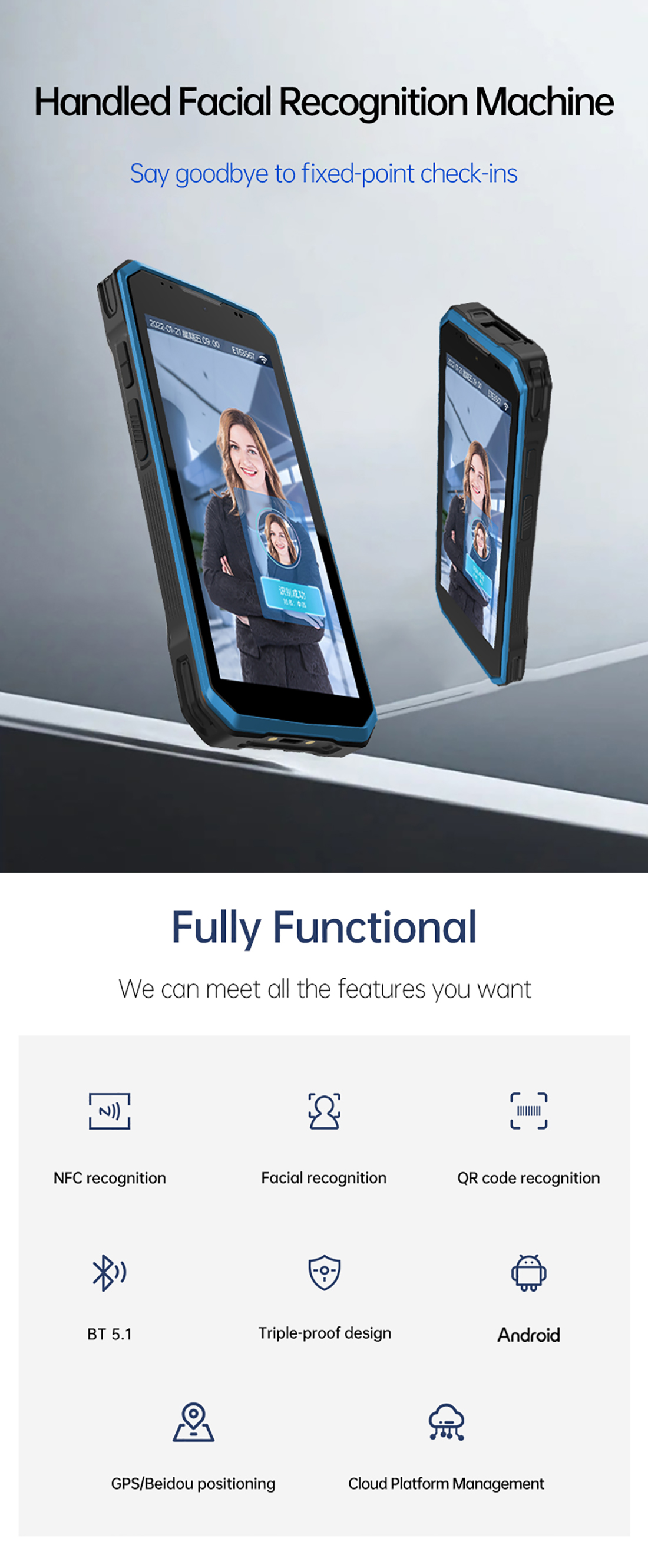

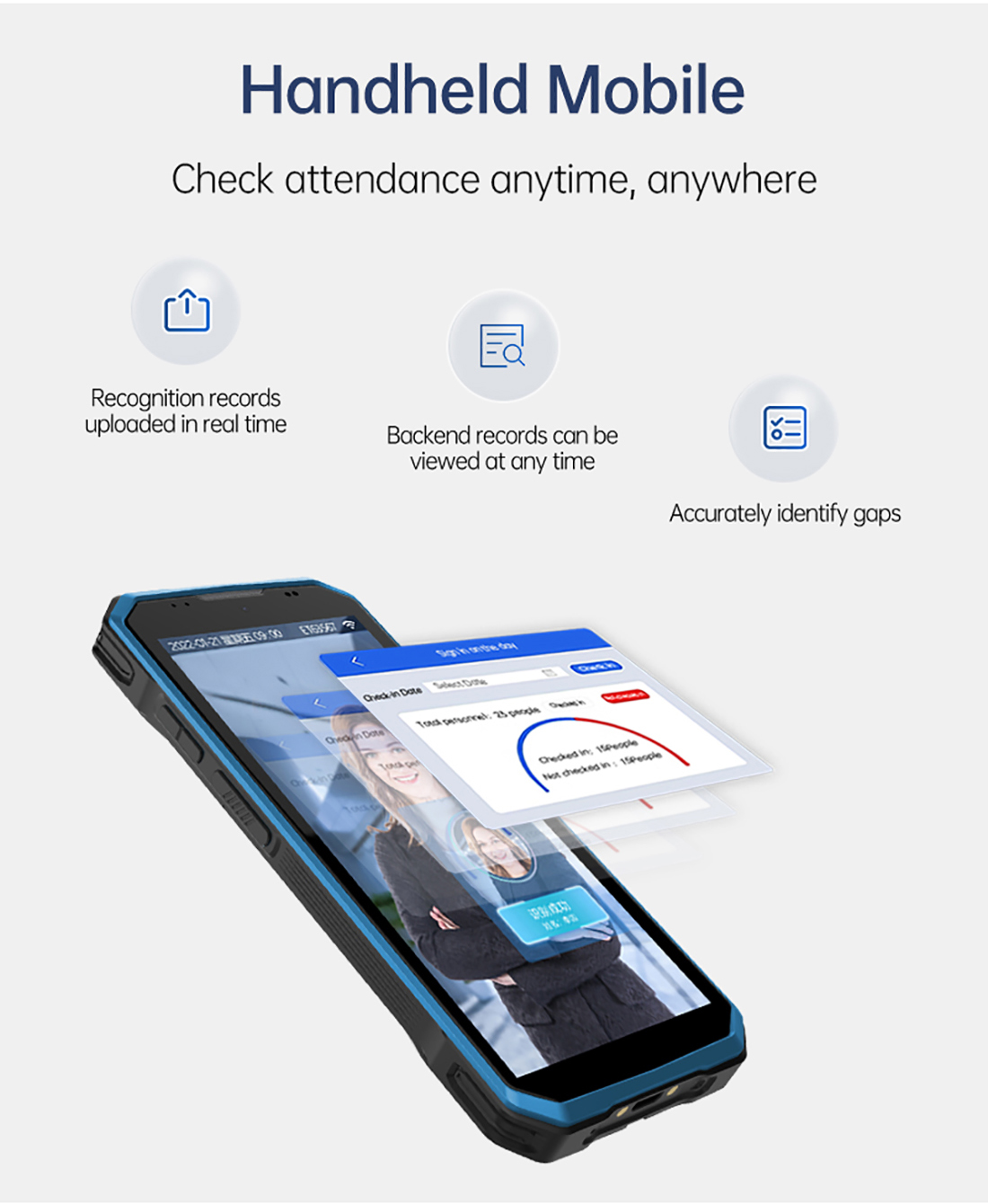

Handheld and Portable Pda Biometric Attendance Machine |

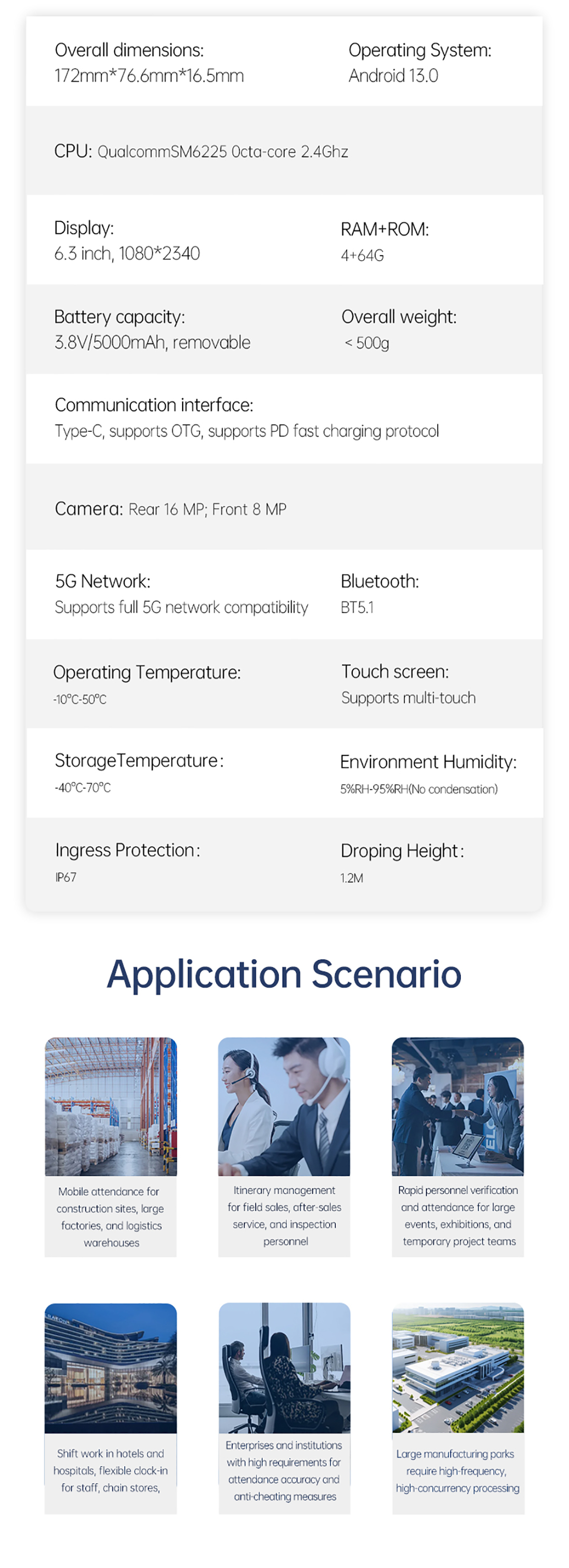

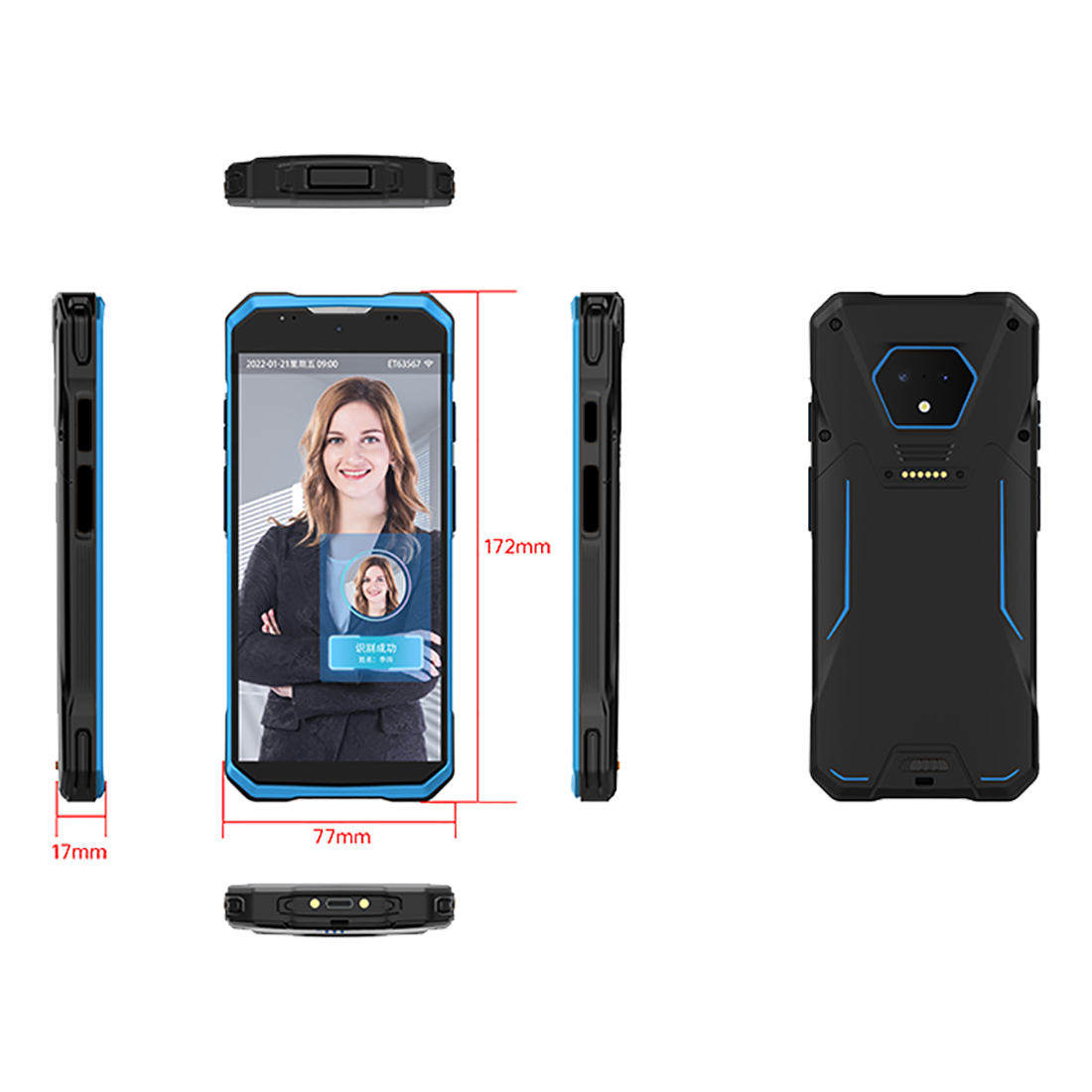

Overall dimensions | 172mm76.6mm16.5mm |
Overall weight: | ＜ 500g |

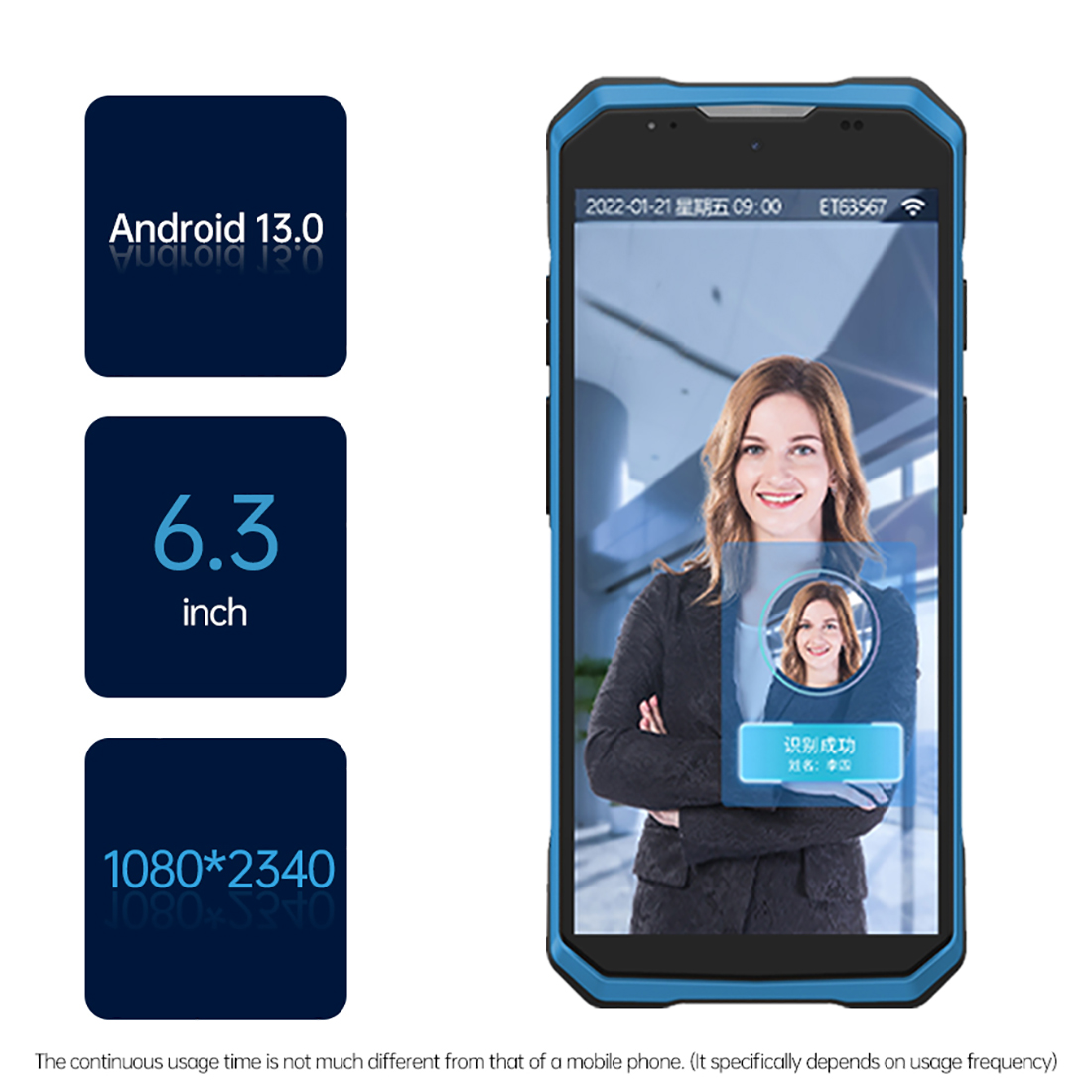

Display | 6.3 inch IPS FHD+ screen((1080*2340) |
Touching Screen | 5 point G+F+F capacitive screen |

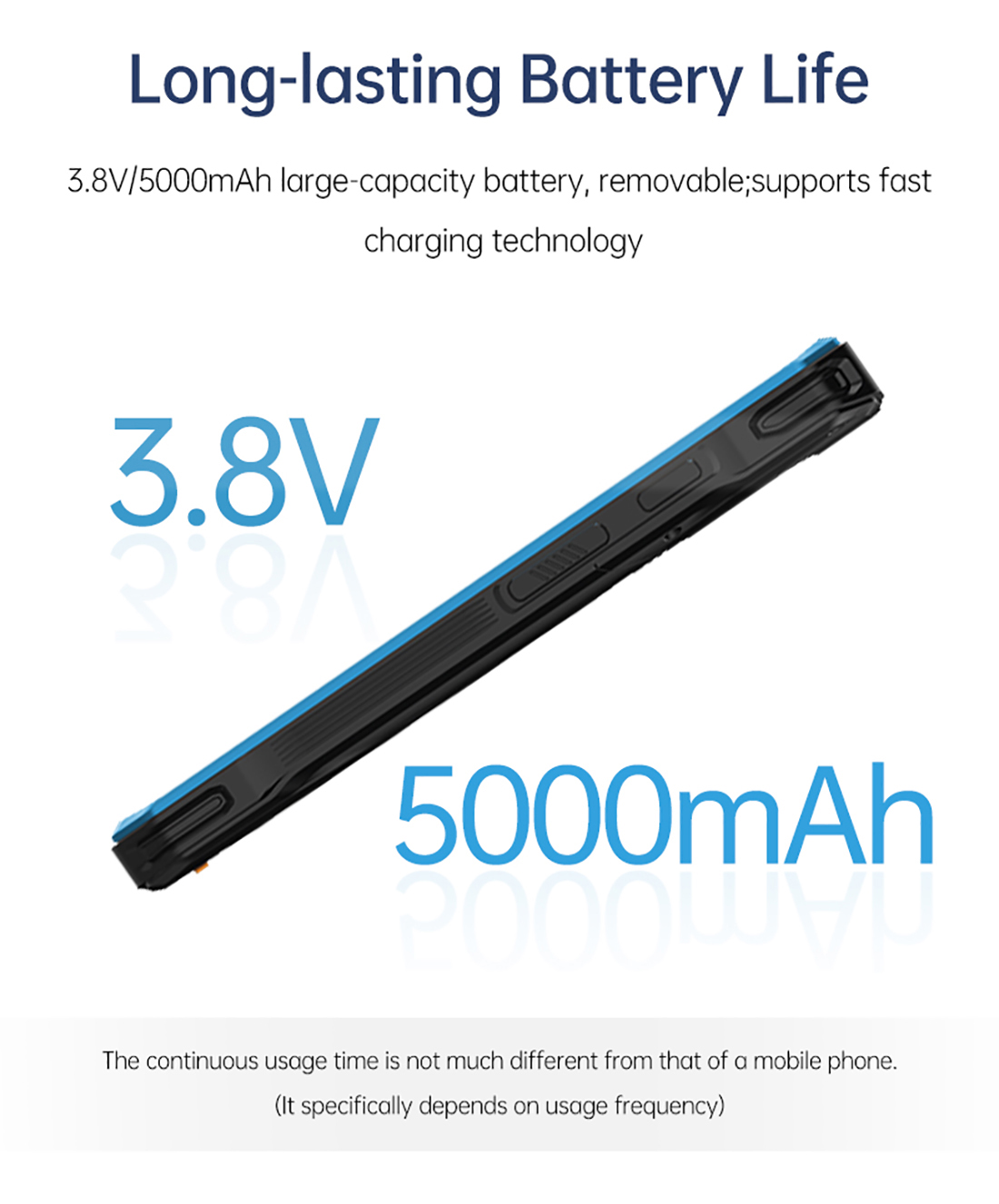

Battery capacity | 3.8V/5000mAh, detachable |

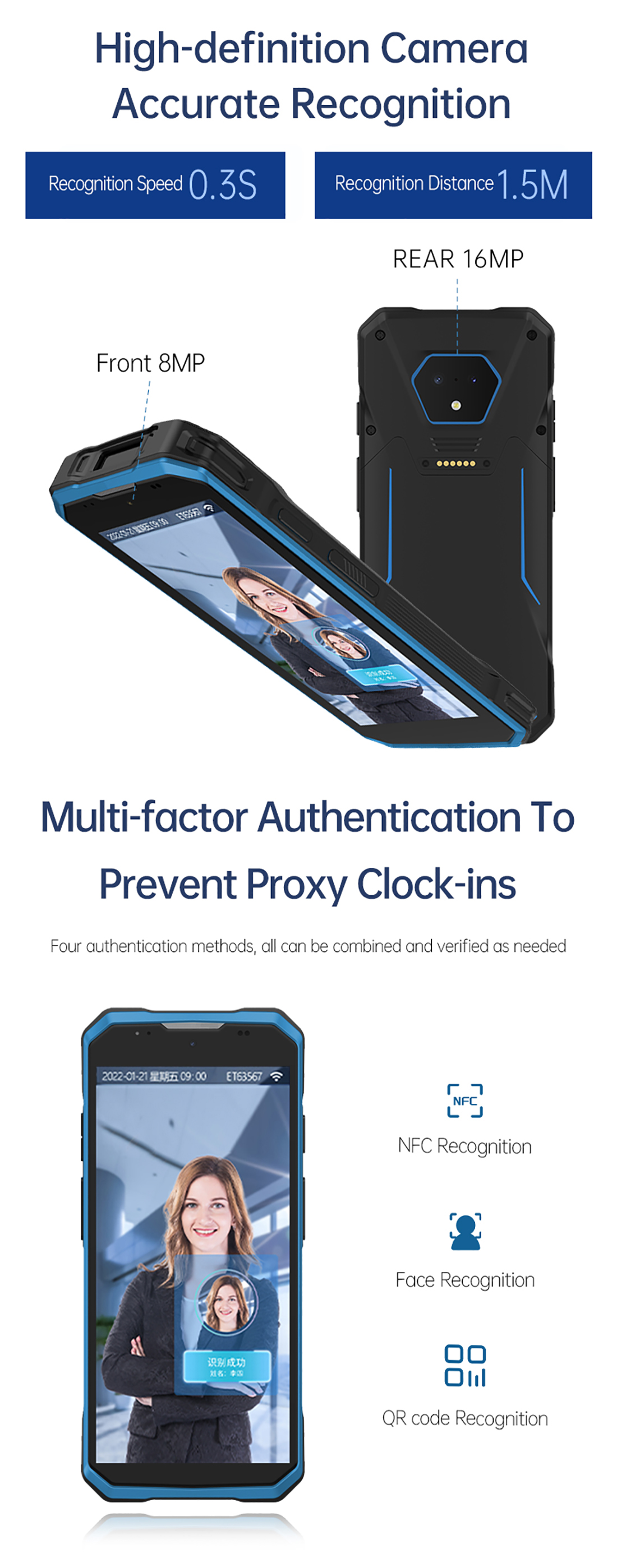

Camera | Front 8 MP Rear 16 MP，autofocus camera with flash |
CPU | QualcommSM6225 Octa-core 2.4Ghz |
Operating system | Android |
RAM+ROM | 4+64GB |
Extra Memory | Expansible through TF, support 256GB |
Processor | Qualcomm SM6225 octa-core 64-bit high-performance processor with 2.4G main frequency |
WLAN | Dual-band WIFI (2.4GHz/5Ghz) Support IEEE 802.11 a/b/g/n/ac/ax ready |
WWAN | EAU Version（Europe/The Middle East/Africa/Korea/Thailand/Australia） 2G：GSM：GSM850/EGSM900/PCS1900/DCS1800 3G：WCDMA：B1/B2/B5/B8
4G：FDD-LTE：B1/B3/B5/B7/B8/B20/B28； TDD-LTE：B38/B40/B41(2496-2690MHz) |
GNSS | GPS/Glonass/Galileo |
Notify | Tricolor breathing light、 motor |
Key | Power button、Volume button+、Volume button-、SCAN button、Fn |
Communication interface | Nano-SIM*2、TF*1(2/3） Type-C 、support OTG、support Power Delivery 2pins Pogo Pin |
4G network | supports 4G all-network access |
Audio | speaker, microphone, supports voice calls |
Sensors | gravity sensor, gyroscope sensor, magnetic sensor |

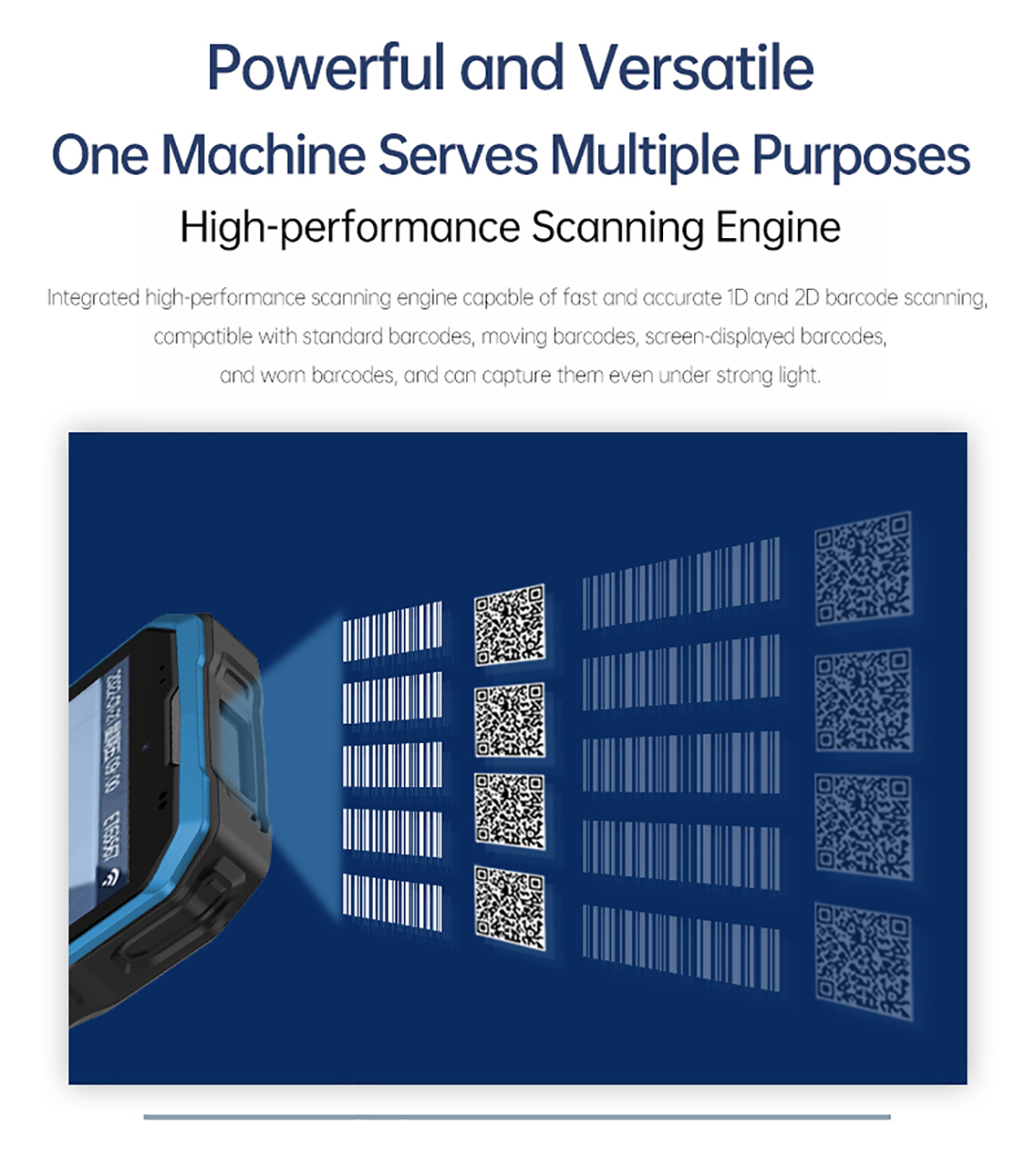

2D Scanning Engine | Scanning Accuracy ≧3mil |

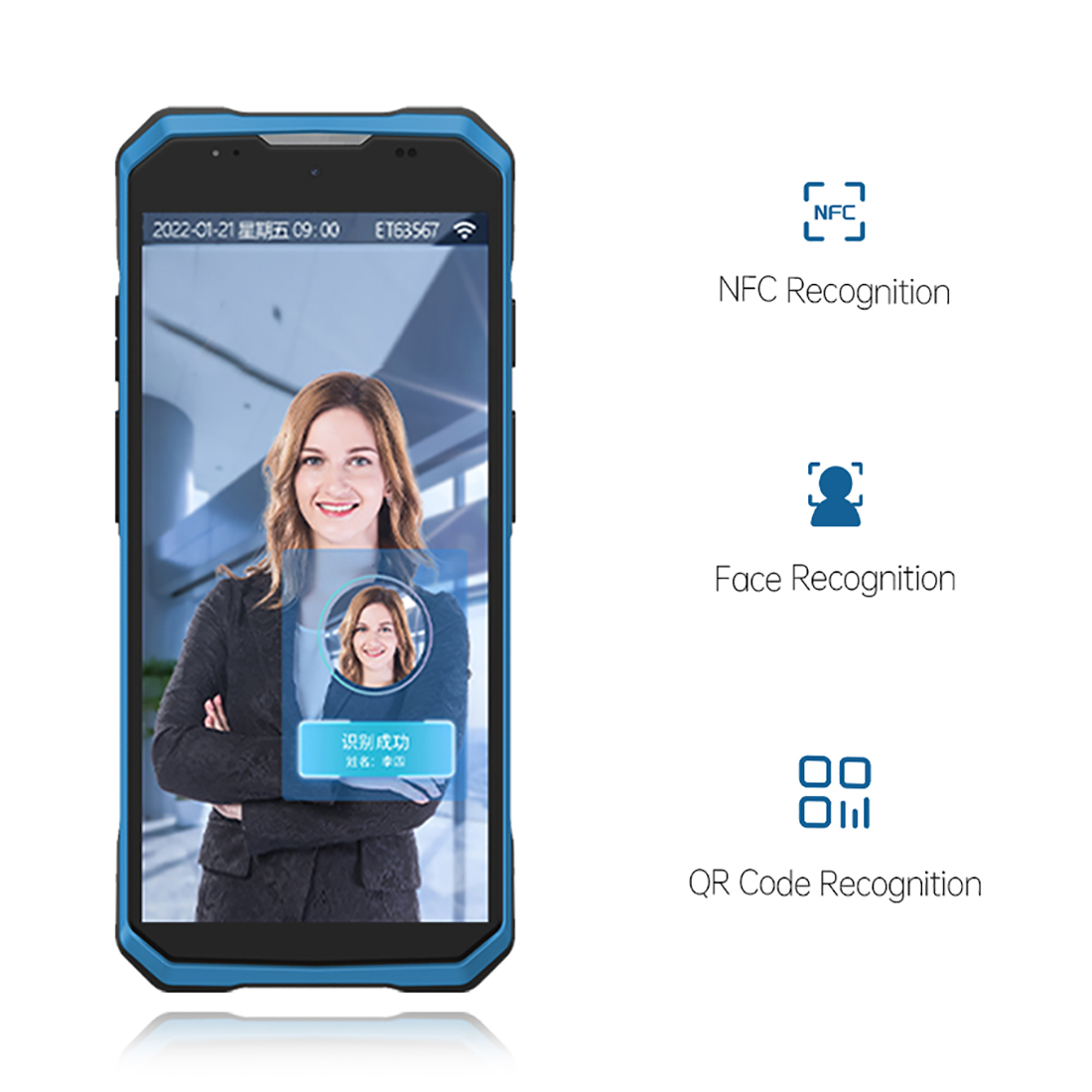

NFC | Frequency：13.56MHz Protocol standard：ISO14443A/B,ISO15693，NFC Label standard：M1(S50、S70)、CPU、NFCtags Read-write distance：2-3cm |
Independent Beidou | Support independent Beidou positioning, RTK accurate positioning |
Operating Temperature | -10℃-50℃ |
Storage Temperature | -40℃-70℃ |
Environment Humidity | 5%RH-95%RH(No condensation) |

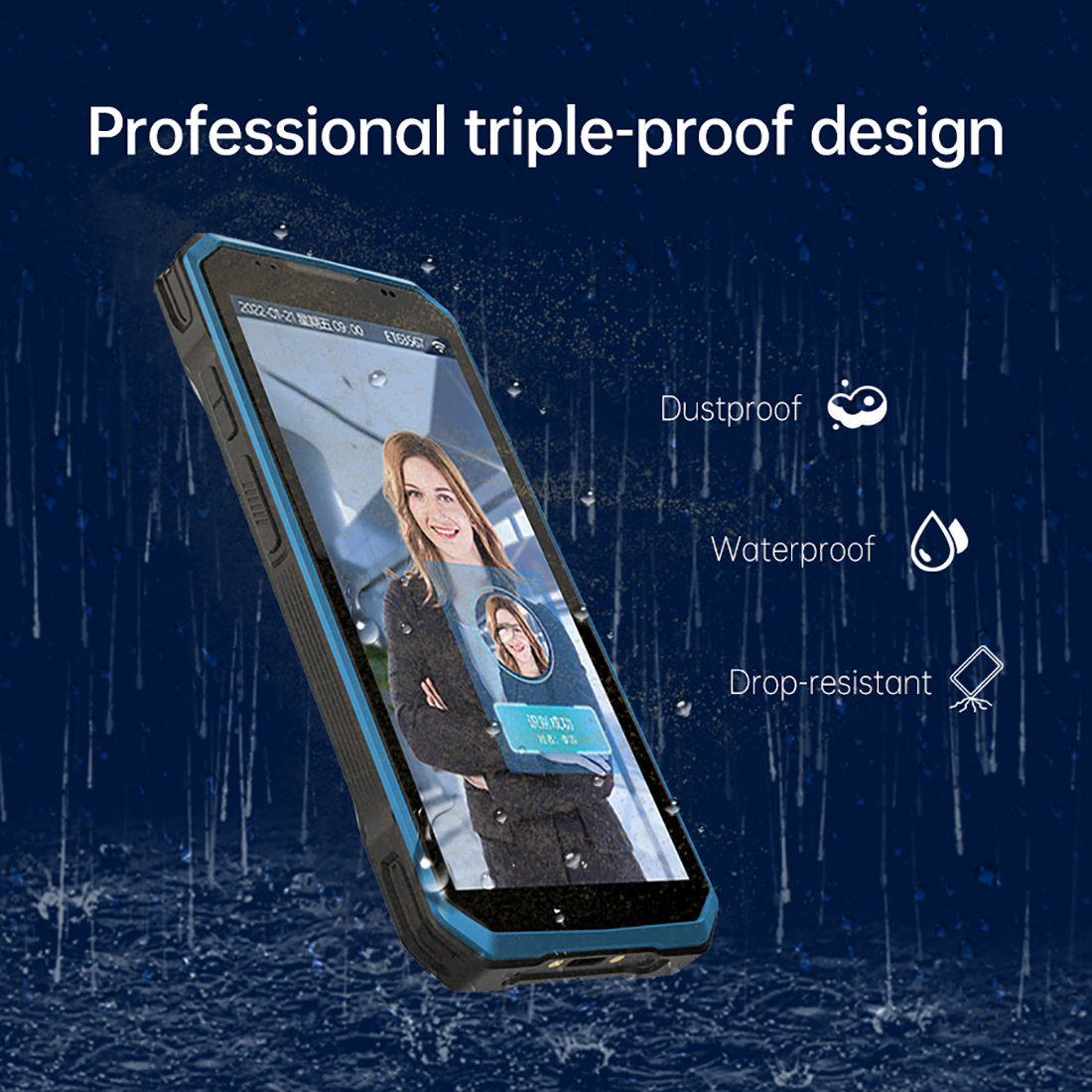

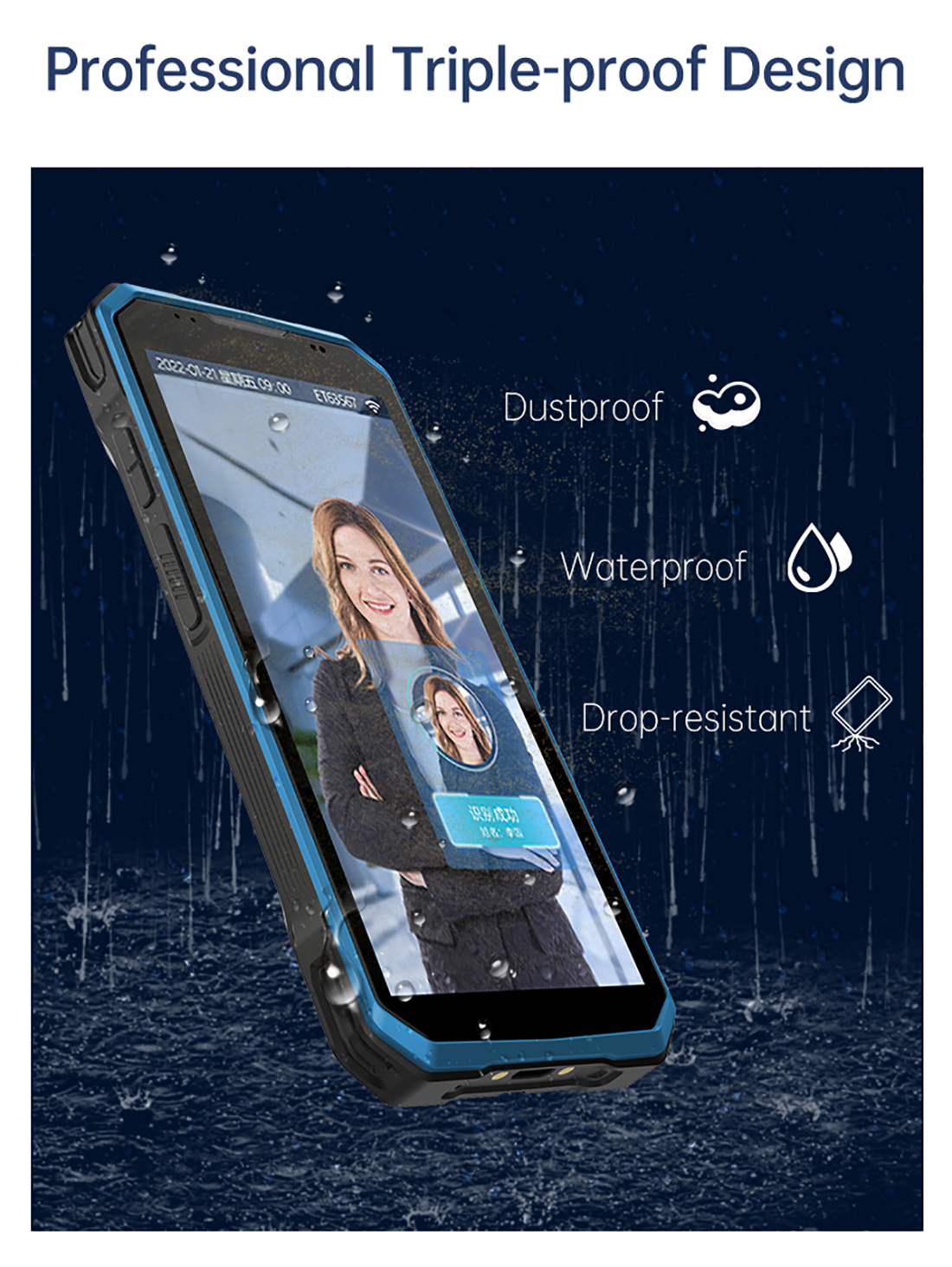

Ingress Protection | IP67 |
Droping Height | 1.2M |
Standard Accessories | Power adapter*1、USB data line*1、Battery*1、Protective film*1、Manual*1、Wrist strap*1 |
