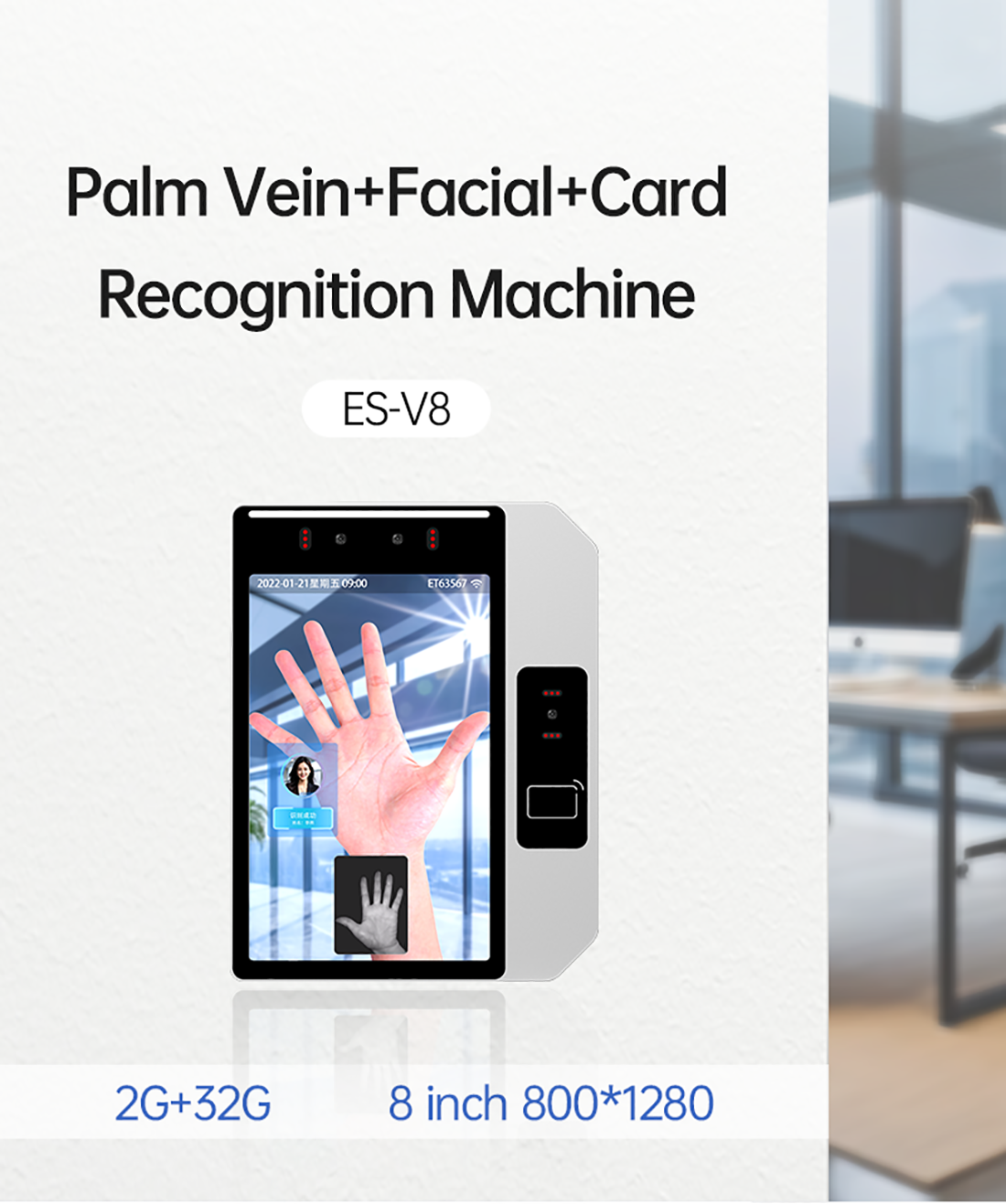

ES-QV8(Plam vien+Face+Card)

share
copy Link
Facebook
X
LinkedIn
Pinterest
Chat for more Info
Leave your message
DetailProduct ParametersProduct DimensionCompany InformationPackaged and shipped




掌静脉_01 1.png掌静脉_01 2.png掌静脉_02 1.png掌静脉_02 2.png掌静脉_03 1.png掌静脉_03 2.png掌静脉_04 1.png掌静脉_04 2.png掌静脉_05 1.png掌静脉_05 2.png



掌静脉_06 2.png掌静脉_07.png

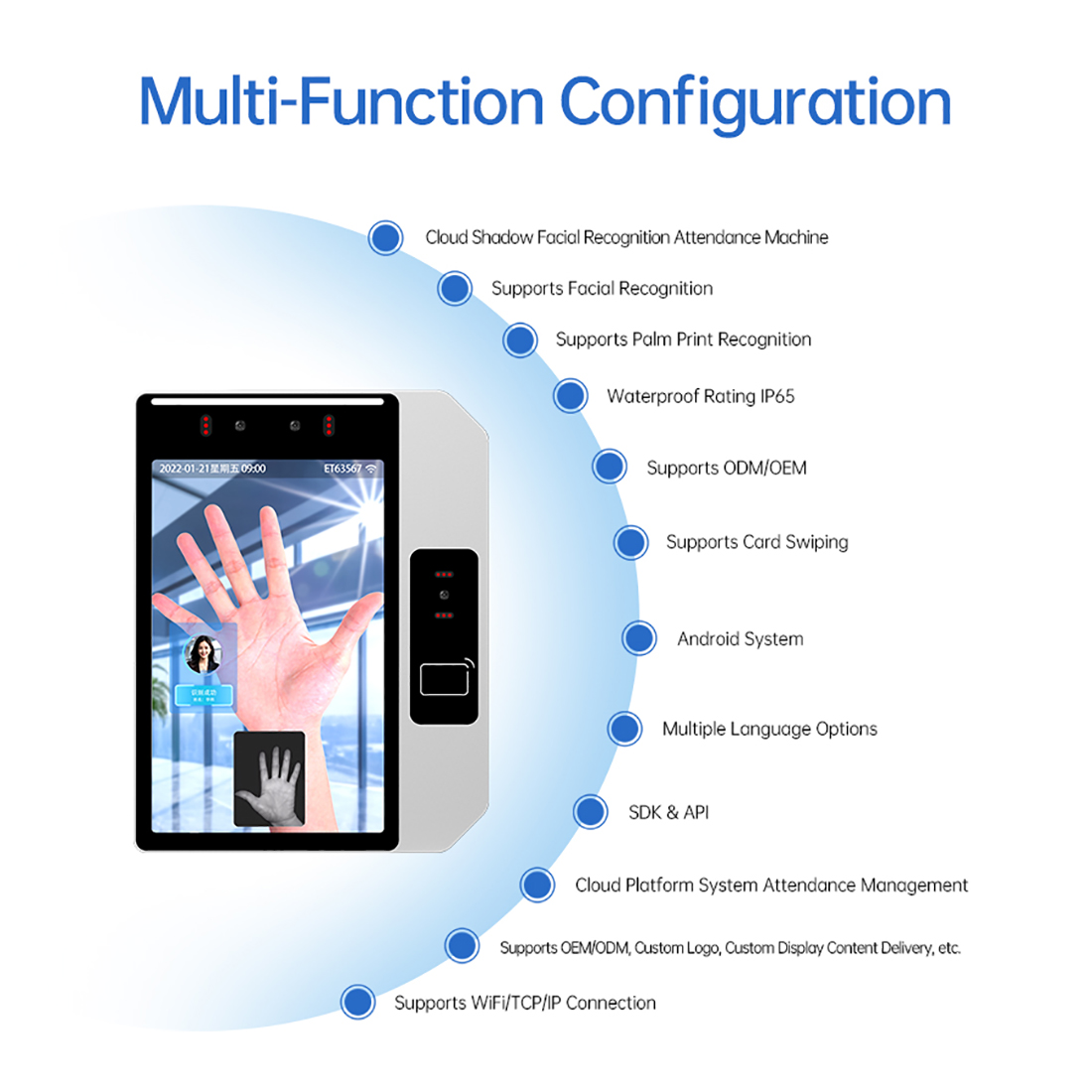

Product Configuration

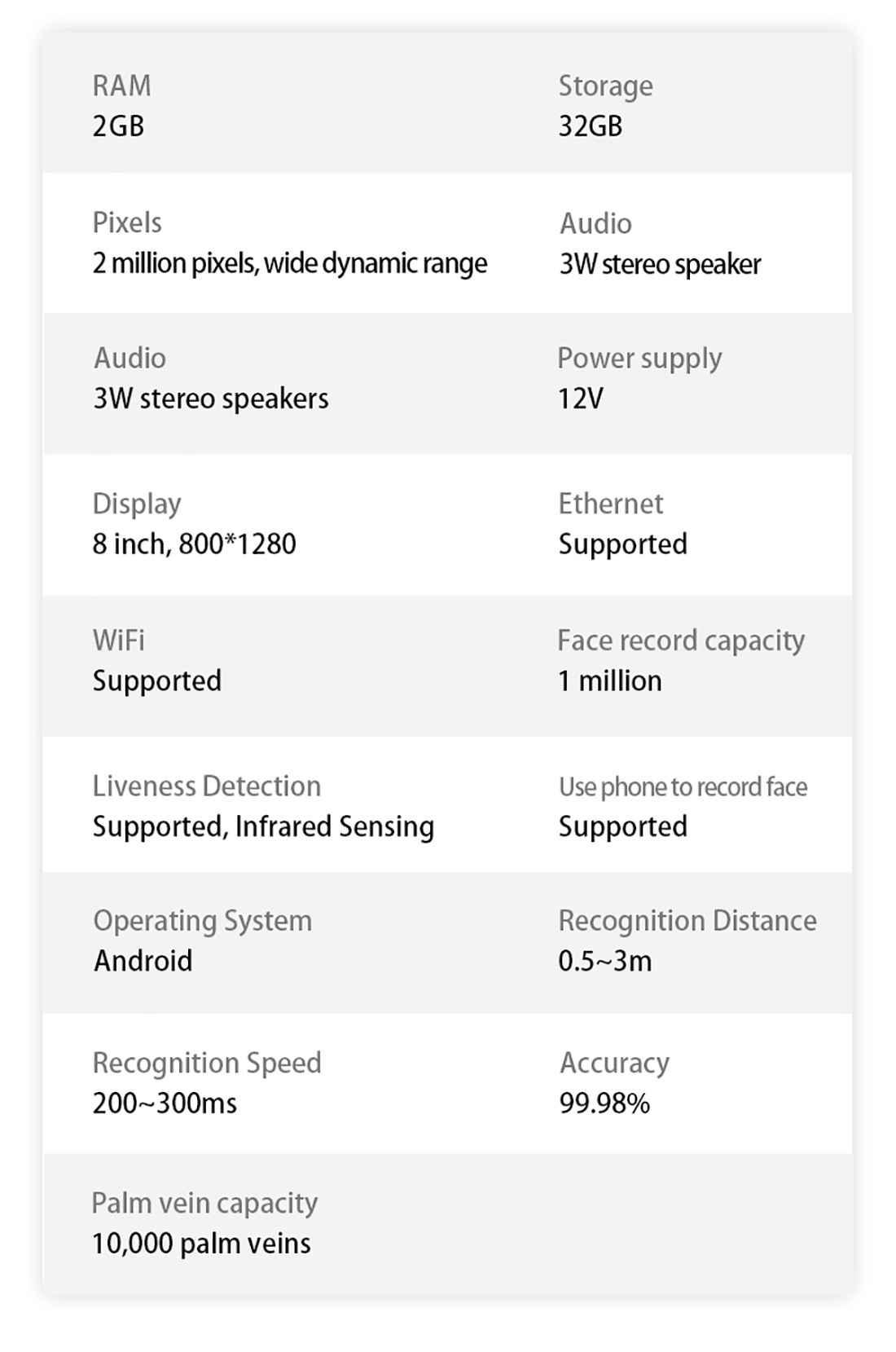

Basic Parameters
RAM
2G
Storage Space
32G
Display Size, Resolution
8-inch, 800*1280
Panel
High Strength Tempered Glass
RGB camera
2 Megapixel Wide-daynamic
Infaraed Camera
2 Megapixel
Speaker
30,000 Stereo-Speaker
Microphone
Support

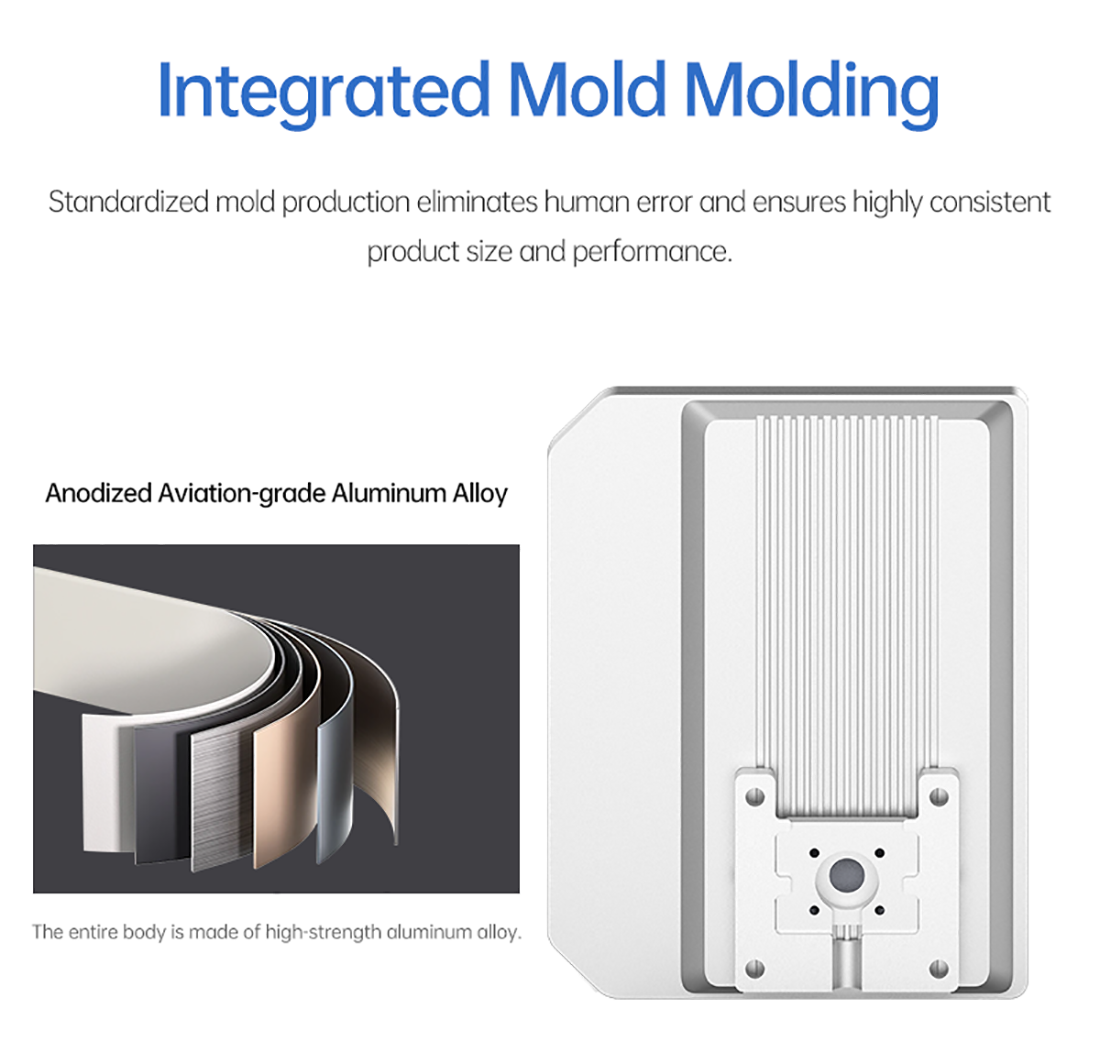

Housing
Aviation Grade Aluminum Alloy



Palm Recognition Module
Error in Testing
<0.0001%
Rejection Rate
<0.01%
Recognition Speed
<0.5s
Palm Capacity
10,000
Palm Tilt Angle
<20 Degree



Application Specifications
Operating System
Android
Recognition Distance
0.5~3 Meters
Recognition Speed
200~300ms
Recognition Accuracy
99.98%
User Capcity
50,000 Faces

Communication Method
Ethernet
Support
WiFi
Support(2.4G)

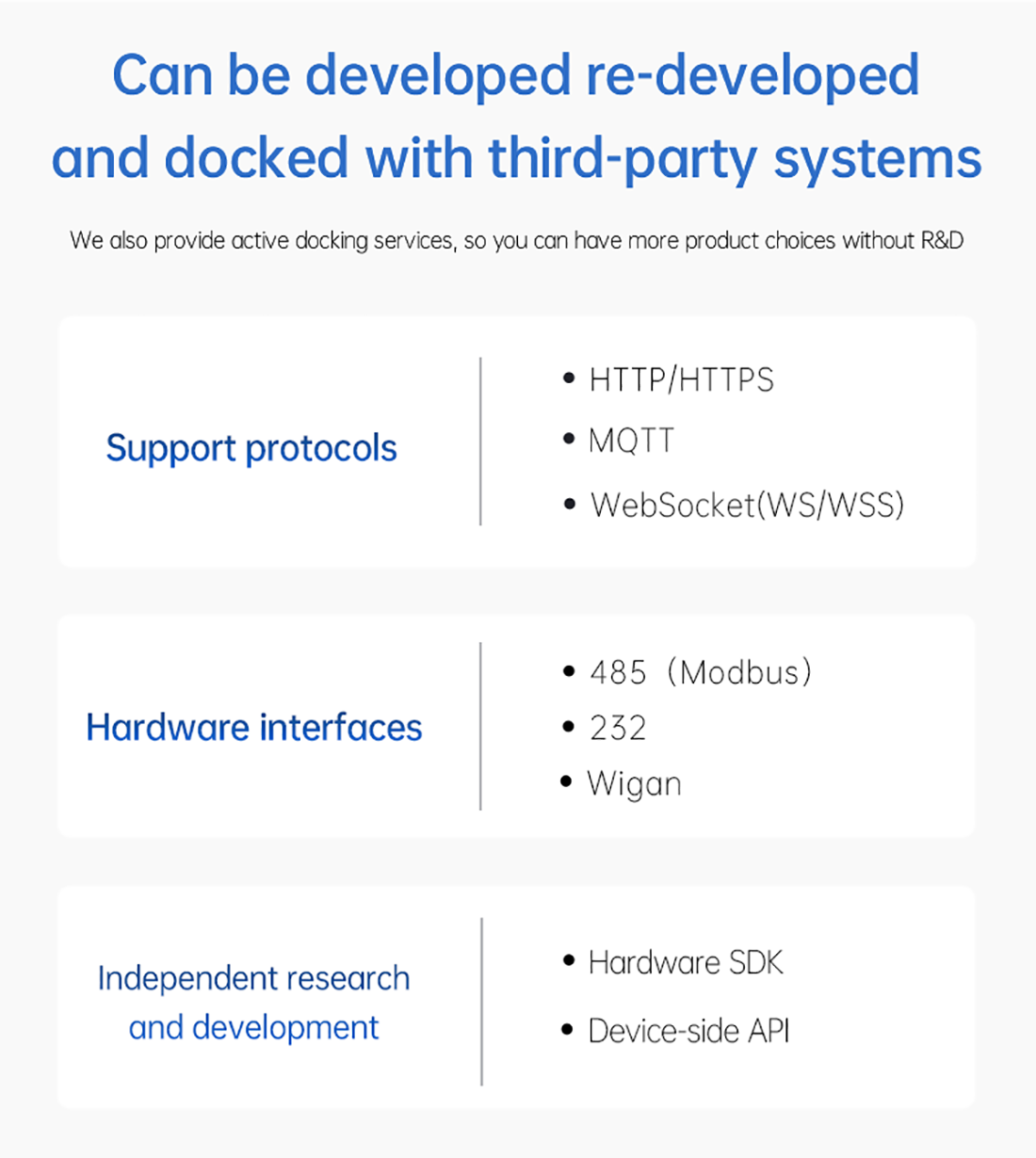

Input Output
USB Interface
One USB2.0 Interface
Relay Switch
Support
Network Interface
RJ45
Serial Communication
RS-485
Wiegand Interface
Support Wiegand 26, 34 Format
Power Supply
Support DC12V-3A Input(Not Supporting PoE Power Supply)

Environmental Requirements
Using Environment
Indoor, Outdoor
Operation Temperature
-25℃～+75℃
Operation Humidity
5%~93%RH Non-condensable

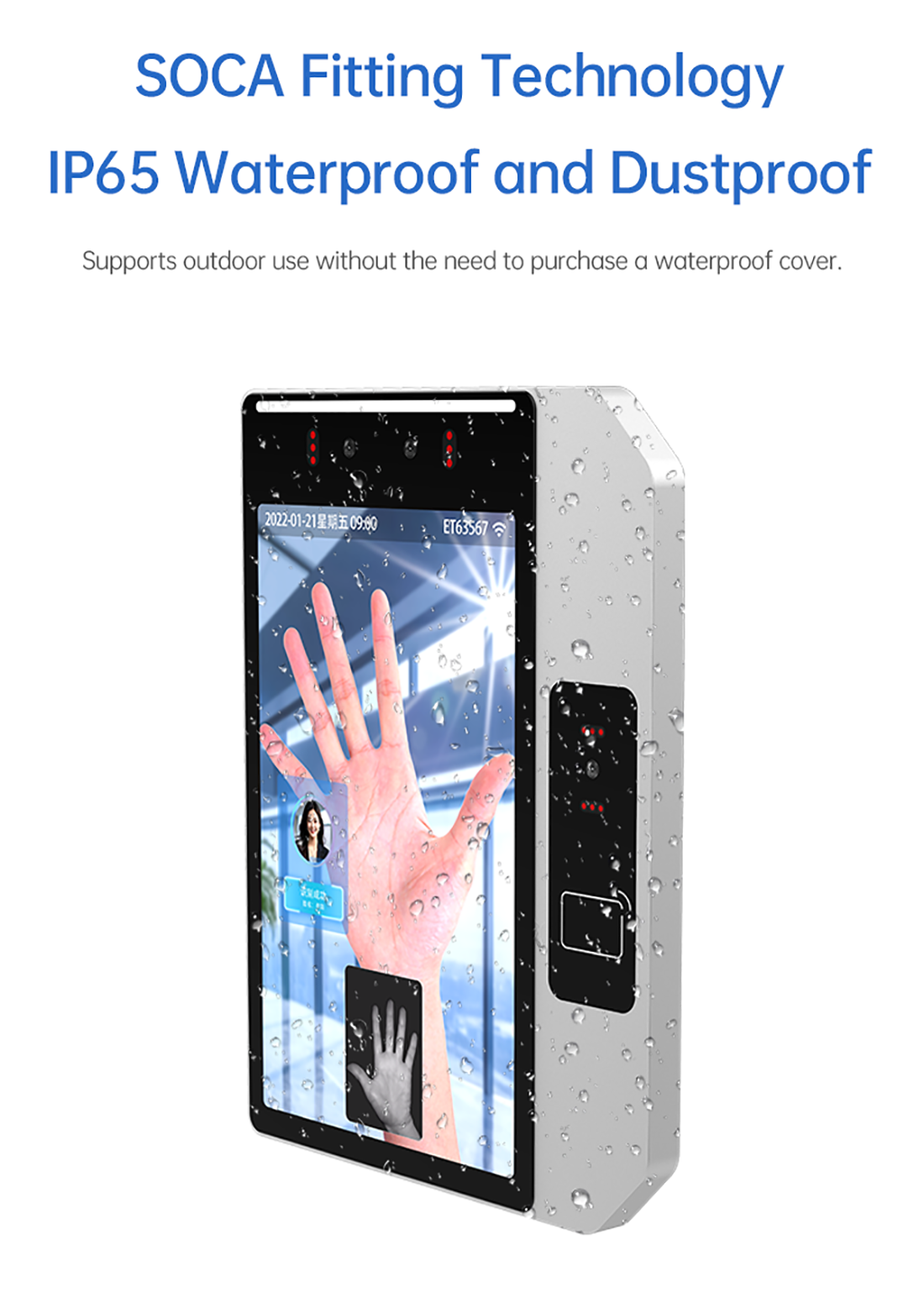

Protection Grade
Dust and Waterproof
IP65
Product Installion

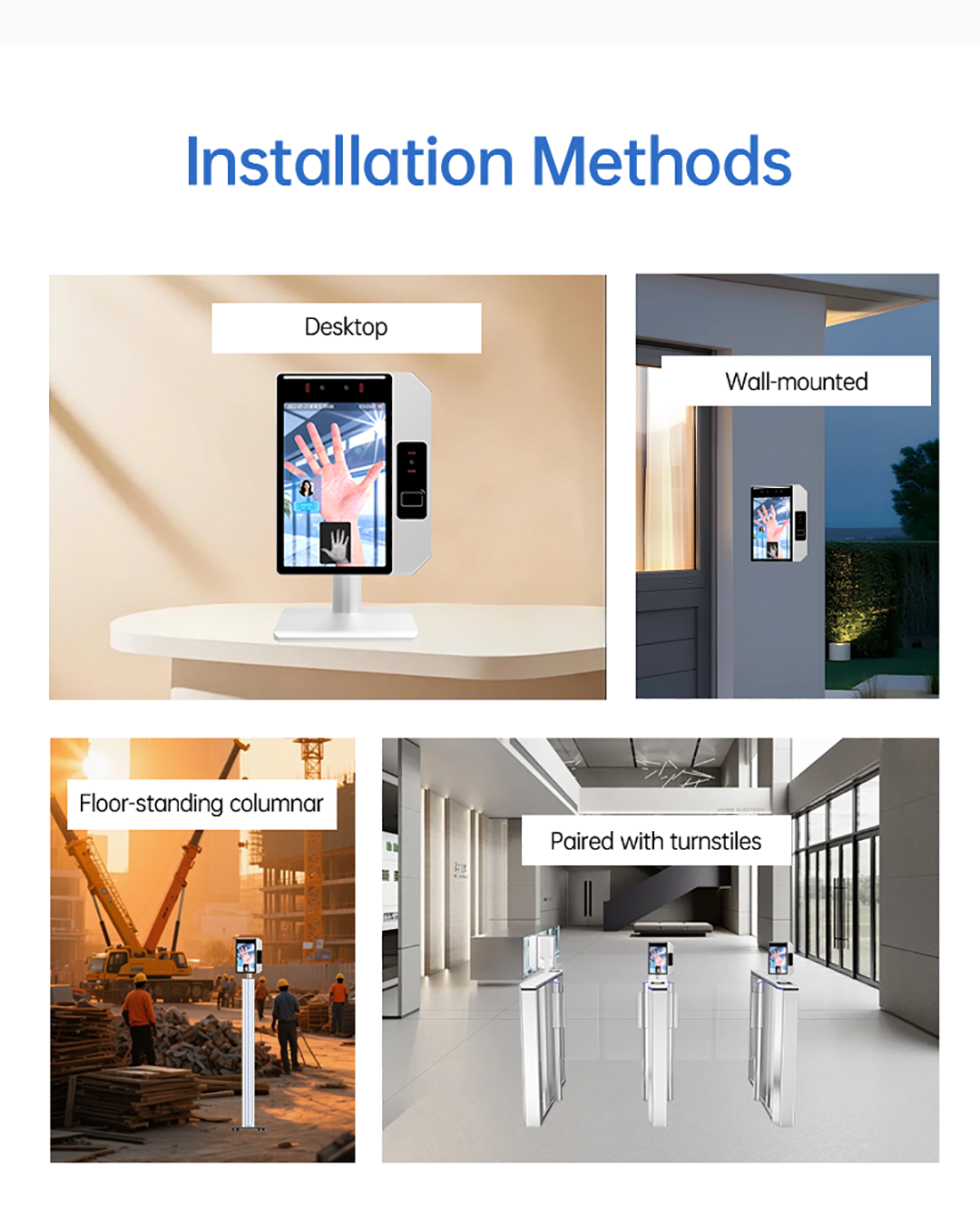

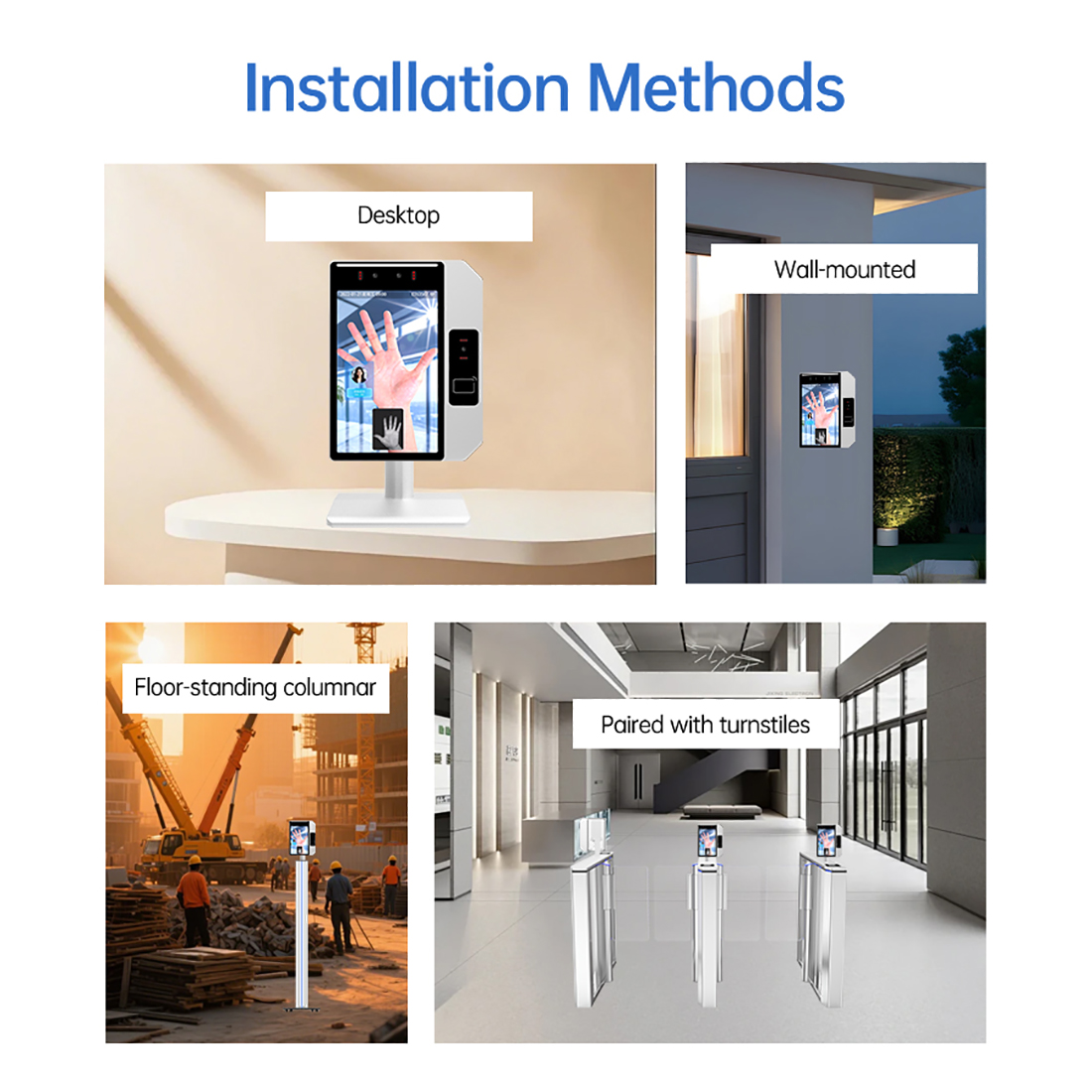

Installation Method
Wall-mounted, floor standing, on turnstile gate, desktop
Parts
Required
AC Adapter
DC12V 3A

Optional
Desktop Base
To match the desktop installtion style
