ESR366 (Face+Card (Optional)+QR Code (Optional))
video
    video
  • 1/6

ESR366 (Face+Card (Optional)+QR Code (Optional))

share
copy Link
Facebook
X
LinkedIn
Pinterest

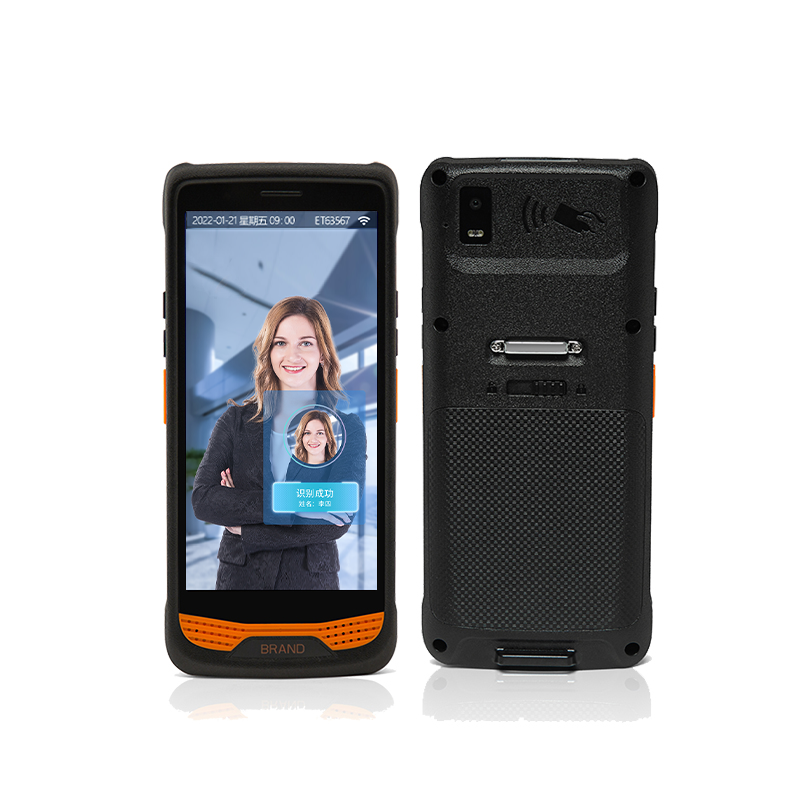

The handheld facial recognition attendance machine focuses on solving the clocking problem in outdoor attendance scenarios, improving attendance efficiency, and effectively preventing the behavior of clocking in for others.

The fastest recognition takes only 0.3 seconds. GPS positioning clocking in is also called electronic fence. By setting the longitude and latitude and the clocking in radius, the authenticity and validity of the clocking in location can be guaranteed, which can effectively prevent managers from colluding and falsifying.

If you have your own management system, you can also connect and redevelop it through the open interface of the product to achieve more functions and apply it to more scenarios.
Chat for more Info
Leave your message
DetailProduct ParametersProduct DimensionCompany InformationPackaged and shipped


Physical Parameter

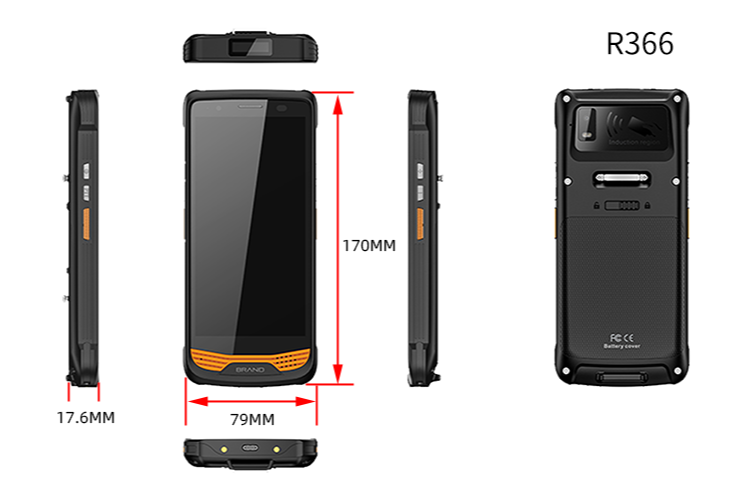

Dimension170× 79 × 17.6mm
Weight<300g
Display screen5.5 itch IPS HD screen(720*1440)
Battery capacity3.8V,4600mAh (detachable)
Expansion slotNano-SIM card*2, TF card*1
InterfaceUSB2.0Type-C , support OTG
AudioLoudspeaker、Microphone、
Support voice calls and MIC noise reduction
Side keyPower button、Volume button+、Volume button-、SCAN button*2
CameraRear 16 MP,autofocus camera with flash
Front 8 MP(optional)
PendantSupport wrist strap
Performance Parameter
OSAndroid 13
CPUQualcommSM6225 Octa-core 2.4Ghz
RAM4GB
ROM64GB
Operating Environment
Operating temperature-10℃-50℃
Storage temperature-40℃-70℃
Environment humidity5%RH-95%RH(No condensation)
Communication
WLAN

Dual-band WIFI (2.4GHz/5Ghz)

Support IEEE 802.11 a/b/g/n/ac/ax ready

WWAN

EAU Version(Europe/The Middle East/Africa/Korea/Thailand/Australia)

2G:GSM:GSM850/EGSM900/PCS1900/DCS1800

3G:WCDMA:B1/B2/B5/B8

4G:FDD-LTE:B1/B3/B5/B7/B8/B20/B28;

TDD-LTE:B38/B40/B41(2496-2690MHz)

BluetoothBT5.1
GNSSGPS/GLONASS/BeiDou
Optional Function
2D Scanning EngineScanning Accuracy:≧3mil
NFC

Frequency:13.56MHz

Protocol standard:ISO14443A/B, ISO15693,NFC

Label standard:M1(S50、S70)、CPU、NFCtags

Read-write distance:2-3cm

PSAM

Protocol:ISO/IEC 7816-1/2/3/4

Channels:PSAM slot *2

Standard Accessories
AccessoriesPower adapter*1、USB data line*1、Battery*1、Protective film*1、Manual*1、Wrist strap*1
