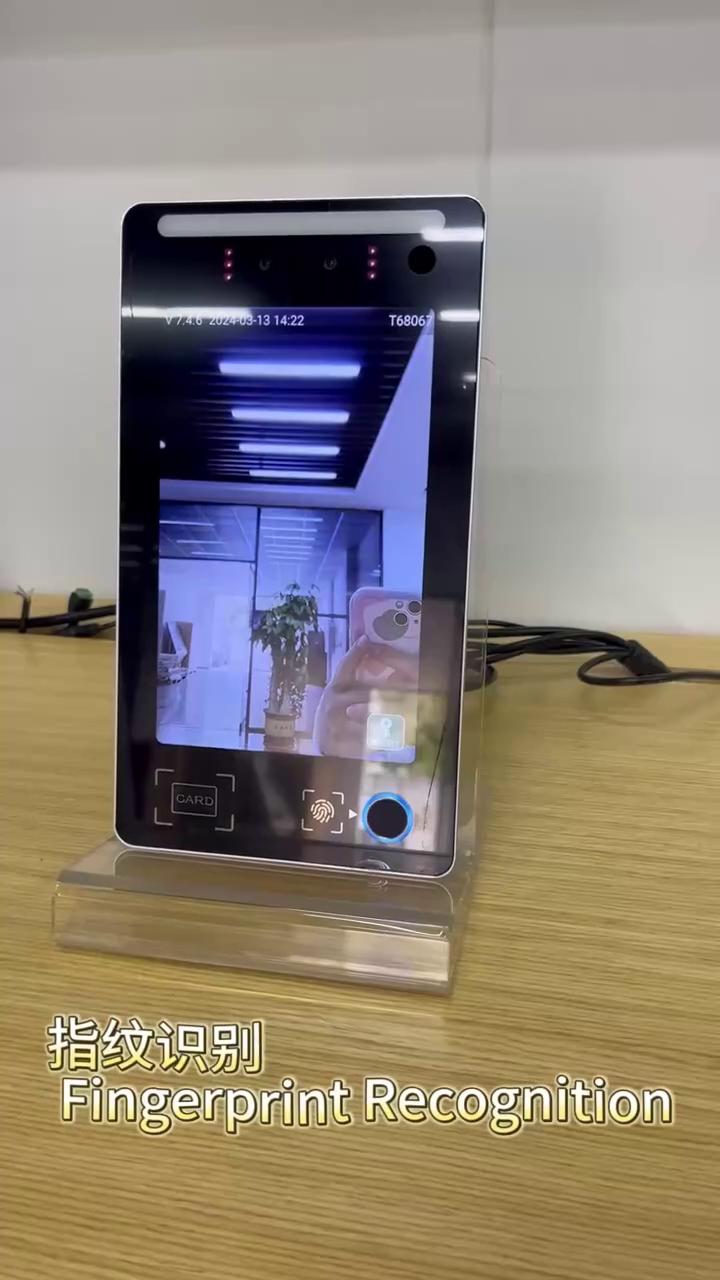

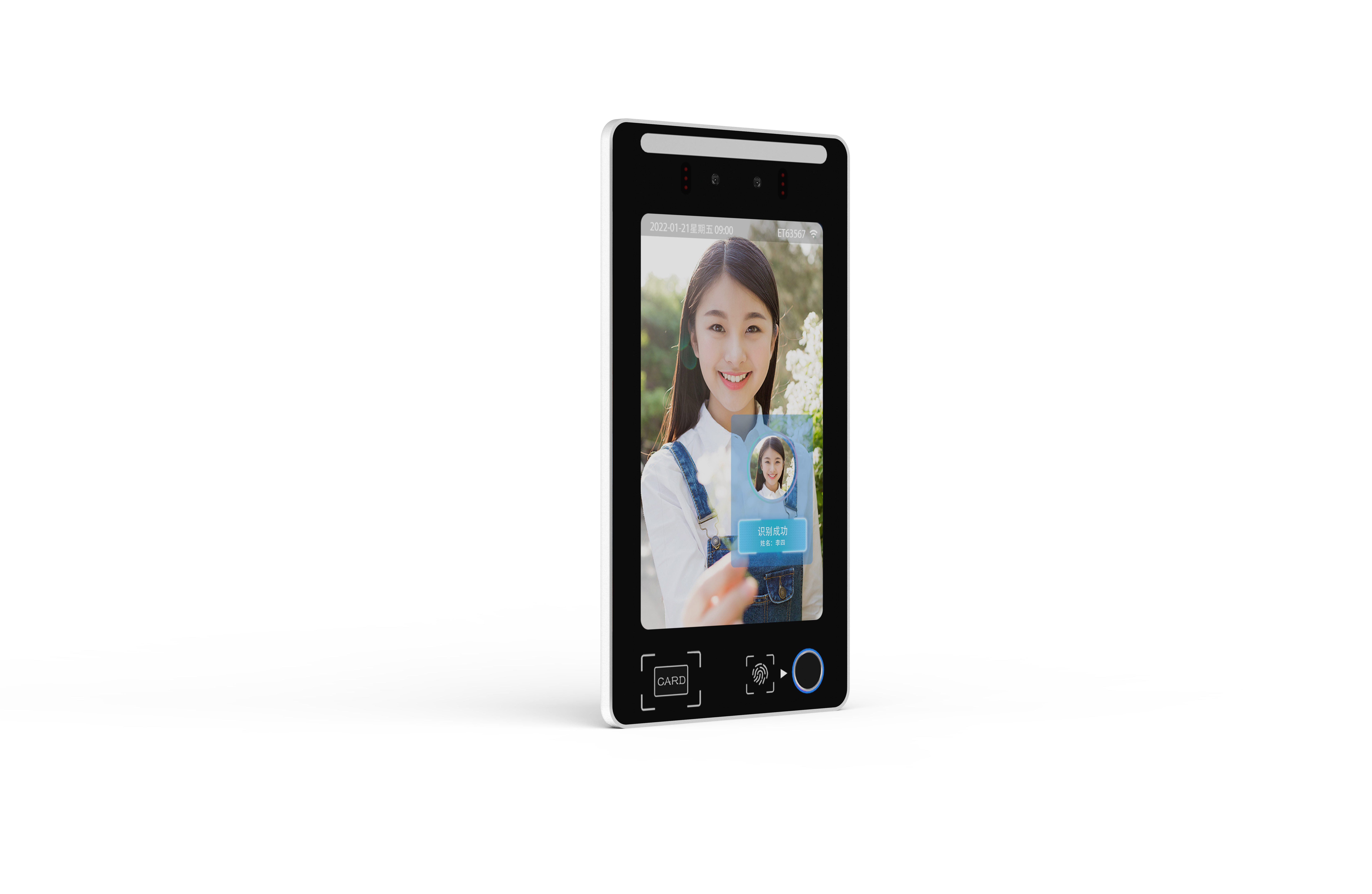

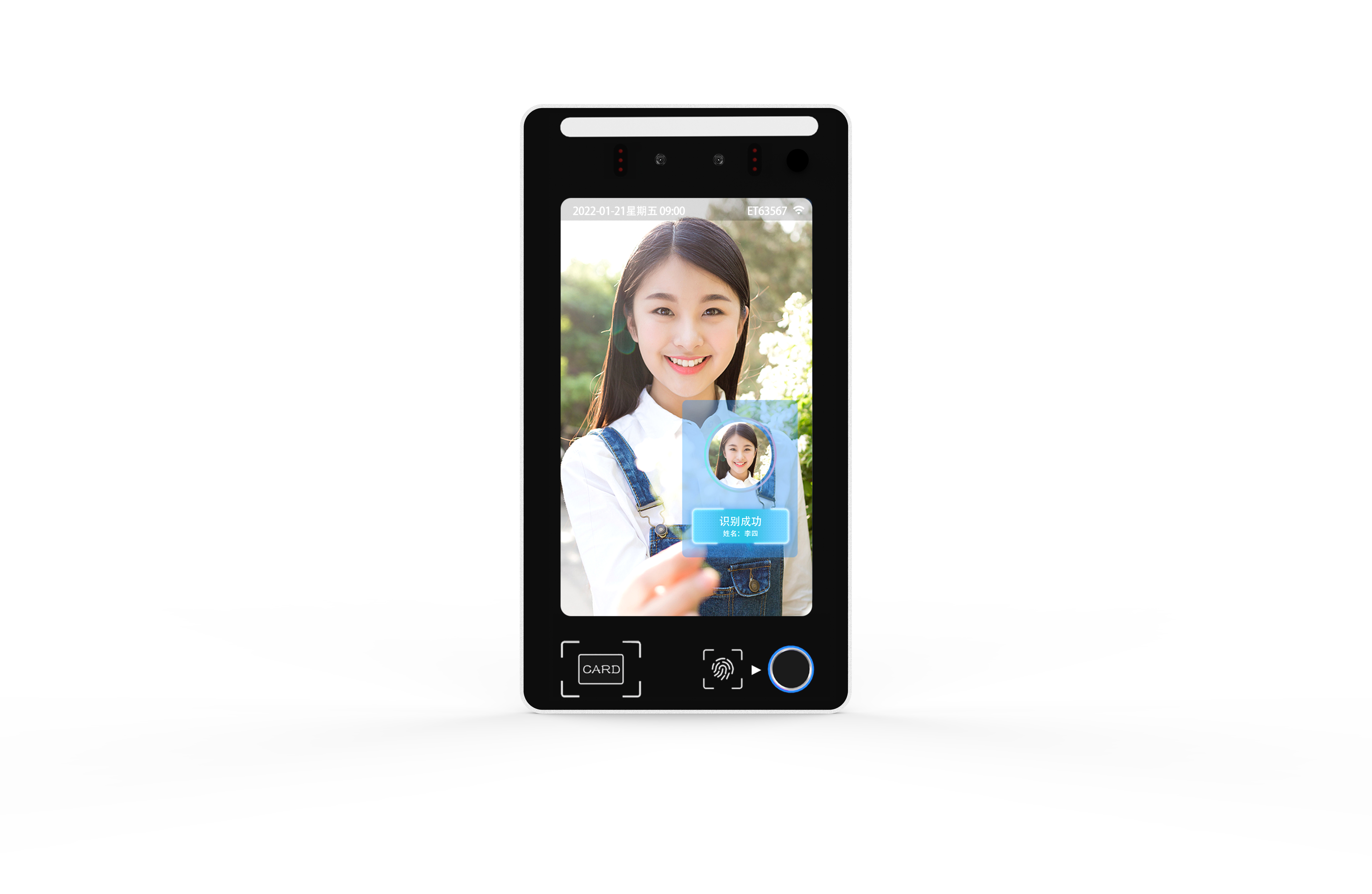

L8 (Face+Card+Fingerprint)
share
DetailProduct ParametersProduct DimensionCompany InformationPackaged and shipped
| Product Configuration | ||
Basic Parameters | RAM | 2G |
| Storage Space | 32G | |
| Display Size*Resolution | 8-inch，800*1280 | |
| Panel | High Strength Tempered Glass | |
| RGB camera | 2 Megapixel Wide-daynamic | |
| Infaraed Camera | 2 Megapixel | |
| Speaker | 30,000 Stereo-Speaker | |
| Microphone | Support | |
| Housing | Aviation Grade Aluminum Alloy | |
| Application Specifications | Operating System | Android |
Recognitioon Distance | 0.5~3 Meters | |
| Recognition Speed | 200~300ms | |
| Recognition Accuracy | 99.98% | |
| User Capcity | 50,000 | |
Fingerprint Module | Fingerprint Capacity | 50,000 |
| Fingerprint Recognition Speed | 0.8s | |
| Communication Method | Ethernet | Support |
| WiFi | Support(2.4G) | |
| Input Output | USB Interface | One USB2.0 Interface |
| Relay Switch | Support | |
| Network Interface | RJ45 | |
| Serial Communication | RS-485 | |
| Wiegand Interface | Support Wiegand 26, 34 Format | |
| Power Supply | Support DC12V-3A Input(Not Supporting PoE Power Supply) | |
| Environmental Requirements | Using Environment | Indoor, Outdoor |
| Operation Temperature | -25℃～+75℃ | |
| Operation Humidity | 5%~93%RH Non-condensable | |
| Protection Grade | Dust and Waterproof | IP65 |
| Product Installion | Installation Method | Hanging, place on ground, on turnstile gate, desktop |
| Parts | ||
| Required | AC Adapter | DC12V 3A |
| Optional | Desktop Base | To match the desktop installtion style |
| Pillar | 1.1 Meters, To match the "place on ground" installtion style | |
