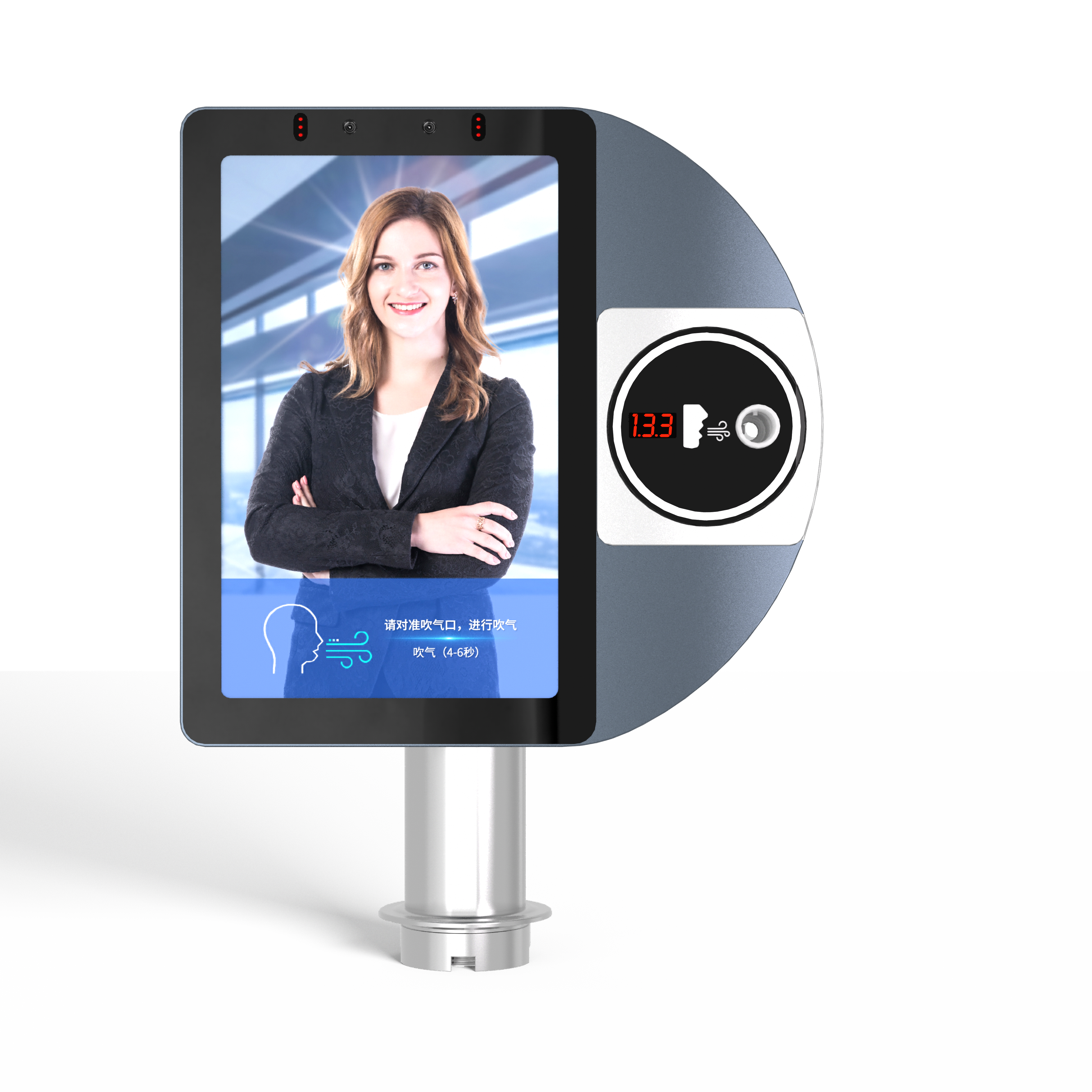

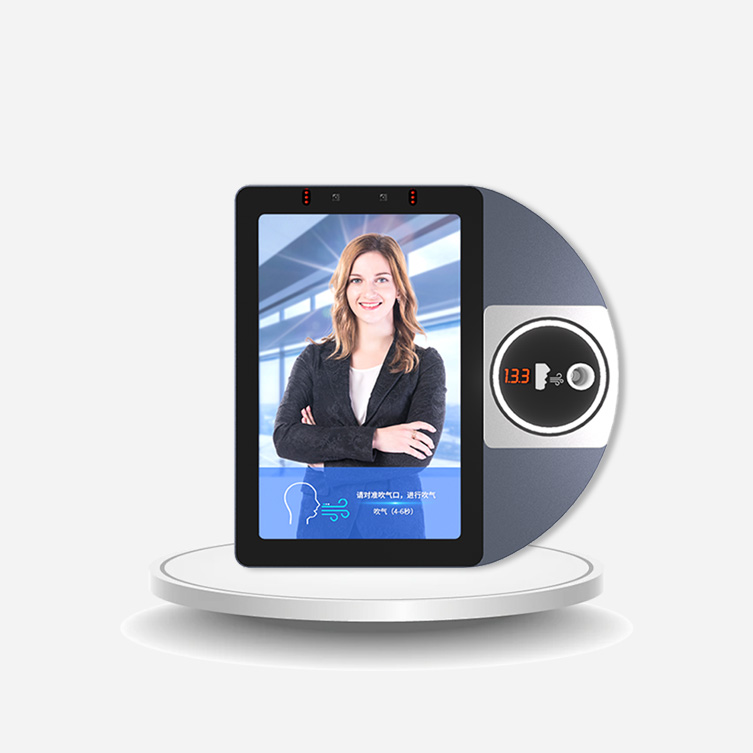

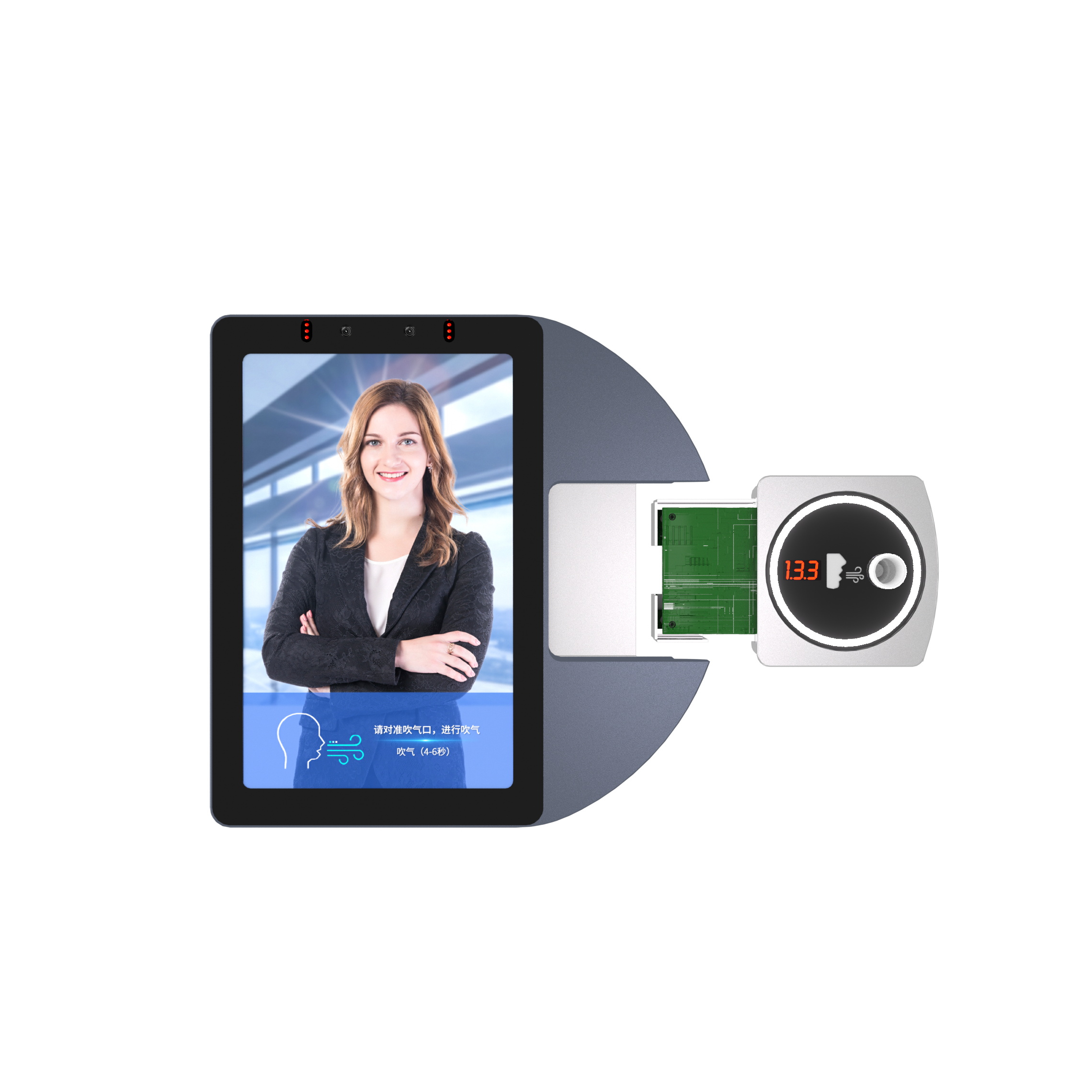

ESFAT (Face+Alcohol Testing)

share
copy Link
Facebook
X
LinkedIn
Pinterest
Chat for more Info
Leave your message

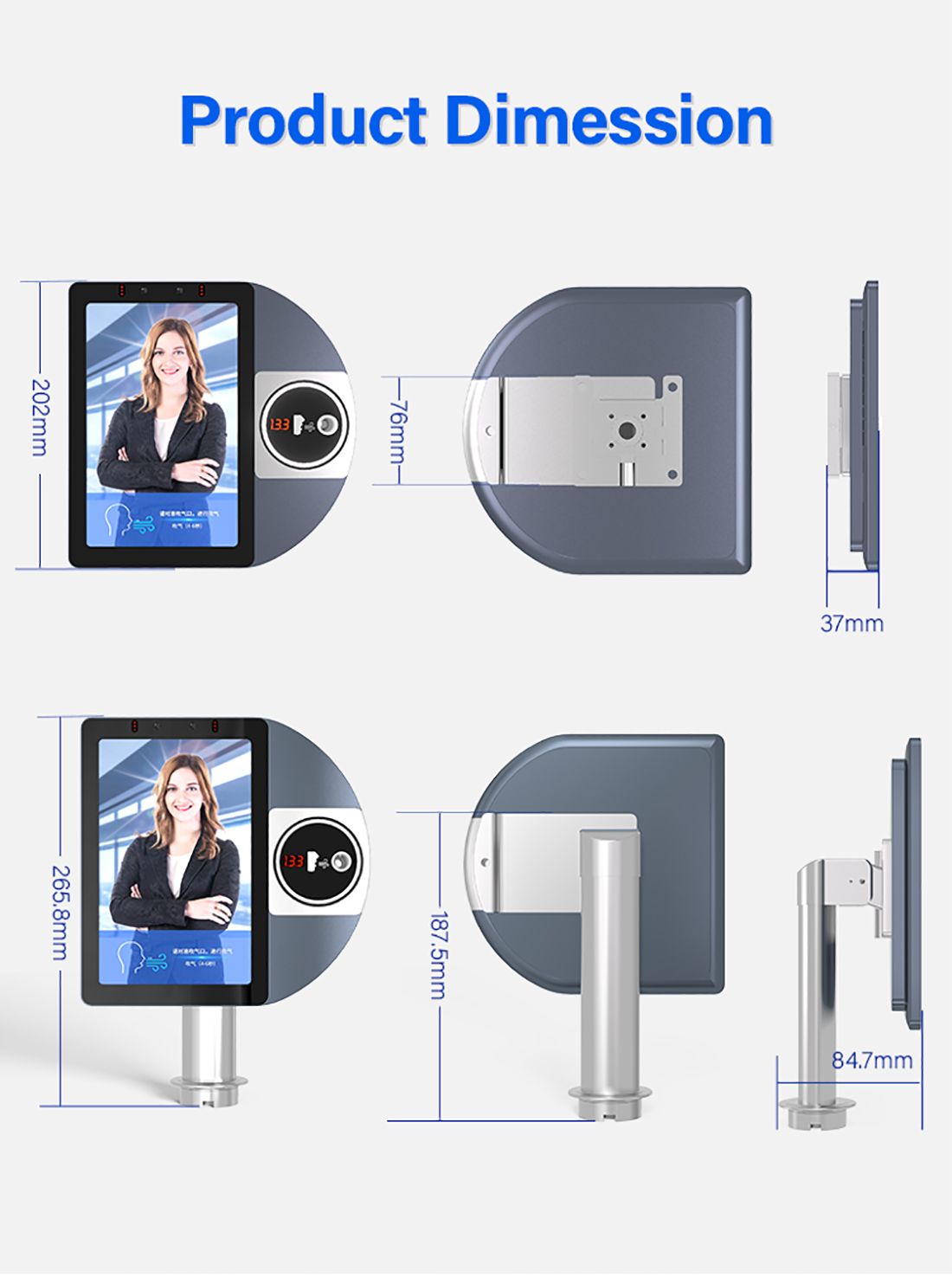

DetailProduct ParametersProduct DimensionCompany InformationPackaged and shipped
















Product Configuration
Basic ParametersRAM2G
Storage Space32G
Display Size*Resolution8-inch，800*1280
PanelHigh Strength Tempered Glass
RGB camera2 Megapixel Wide-daynamic
Infaraed Camera2 Megapixel
Speaker30,000 Stereo-Speaker
MicrophoneSupport
HousingAviation Grade Aluminum Alloy

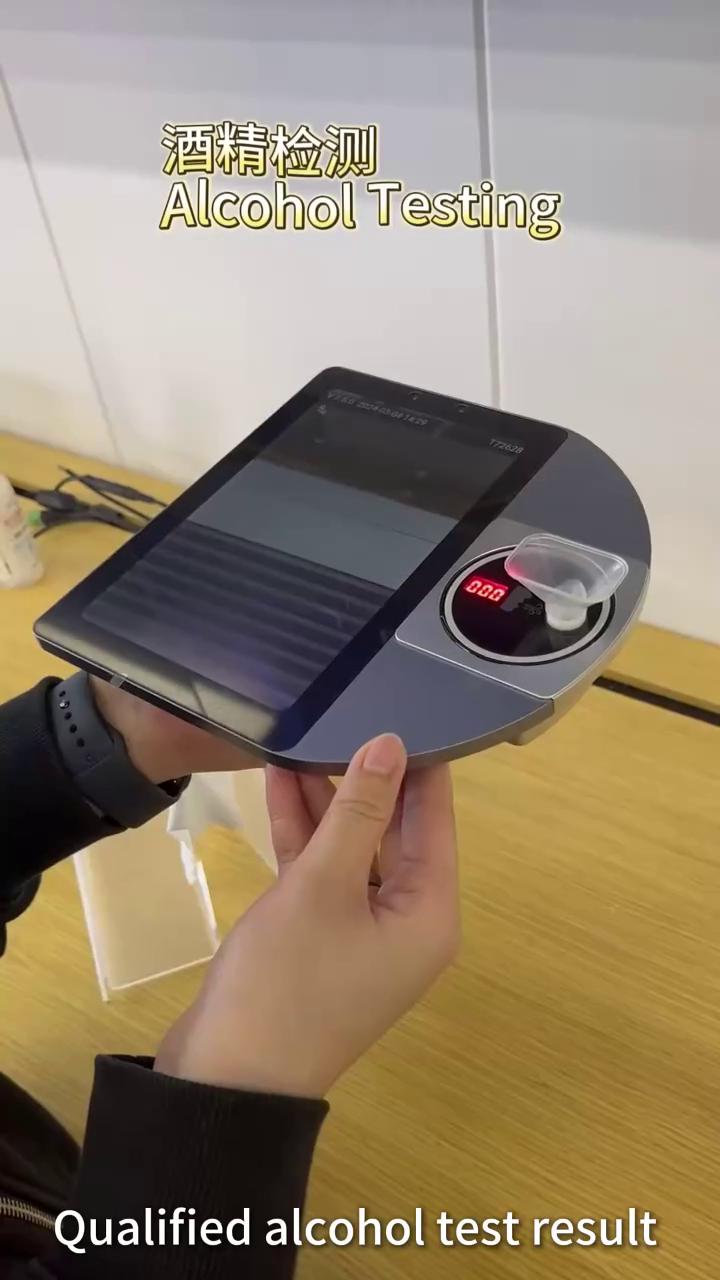

Alcohol Testing ModuleError in Testing± 6.0mg/100mL
Resolution Ratio1 mg/100mL
Sensitivity5 mg/100mL
Temperature5°C ~+50°C
Testing Range0 mg/100mL ~ 400 mg/100mL (0~2.00mg/L)
Application
Specifications		Operating SystemAndroid
Recognitioon Distance0.5~3 Meters
Recognition Speed200~300ms
Recognition Accuracy99.98%
User Capcity50,000 Faces
Communication
Method		EthernetSupport
WiFiSupport(2.4G)
Input OutputUSB InterfaceOne USB2.0 Interface
Relay SwitchSupport
Network InterfaceRJ45
Serial CommunicationRS-485
Wiegand InterfaceSupport Wiegand 26, 34 Format
Power SupplySupport DC12V-3A Input(Not Supporting PoE Power Supply)
Environmental
Requirements		Using EnvironmentIndoor, Outdoor
Operation Temperature-25℃～+75℃
Operation Humidity5%~93%RH Non-condensable
Protection GradeDust and WaterproofIP65

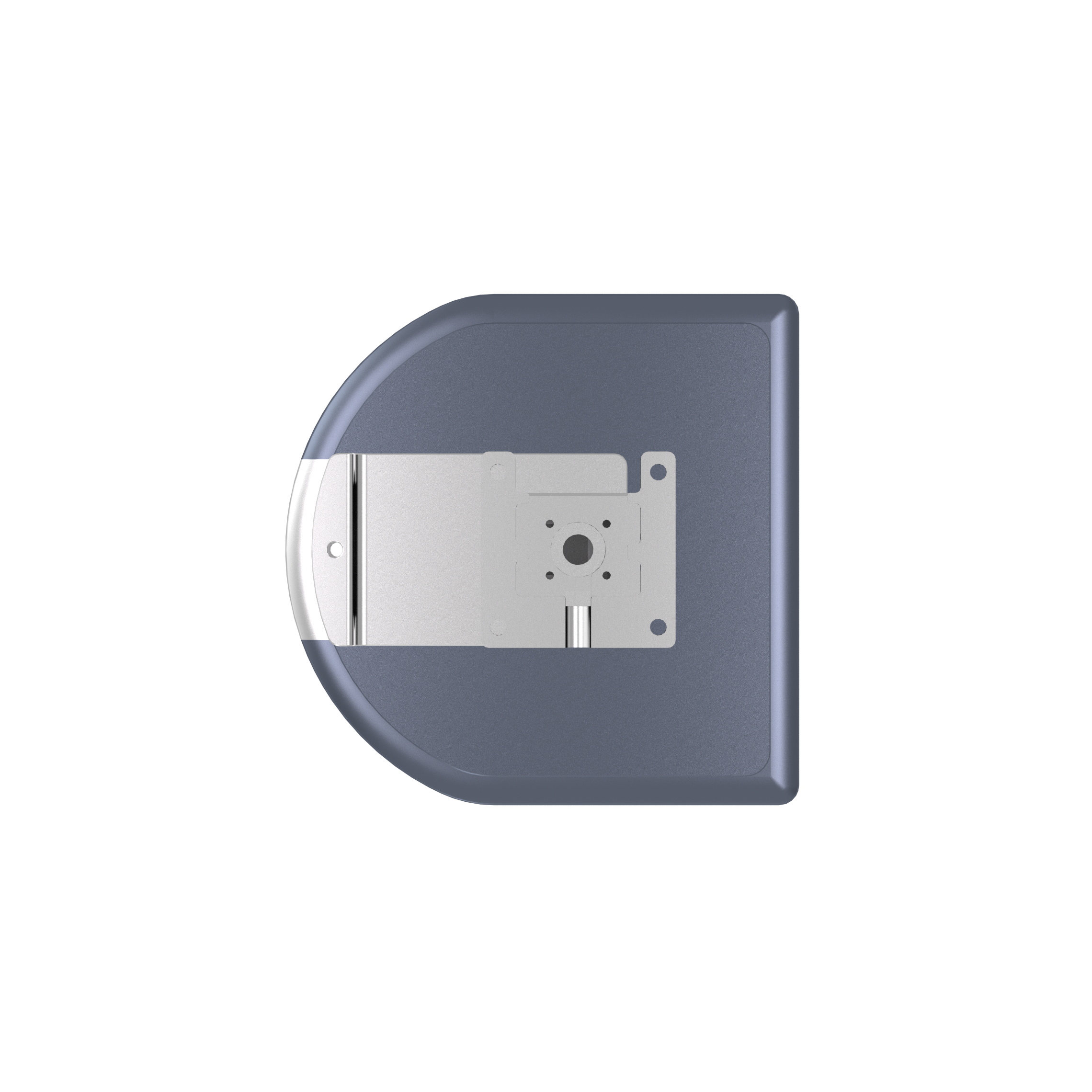

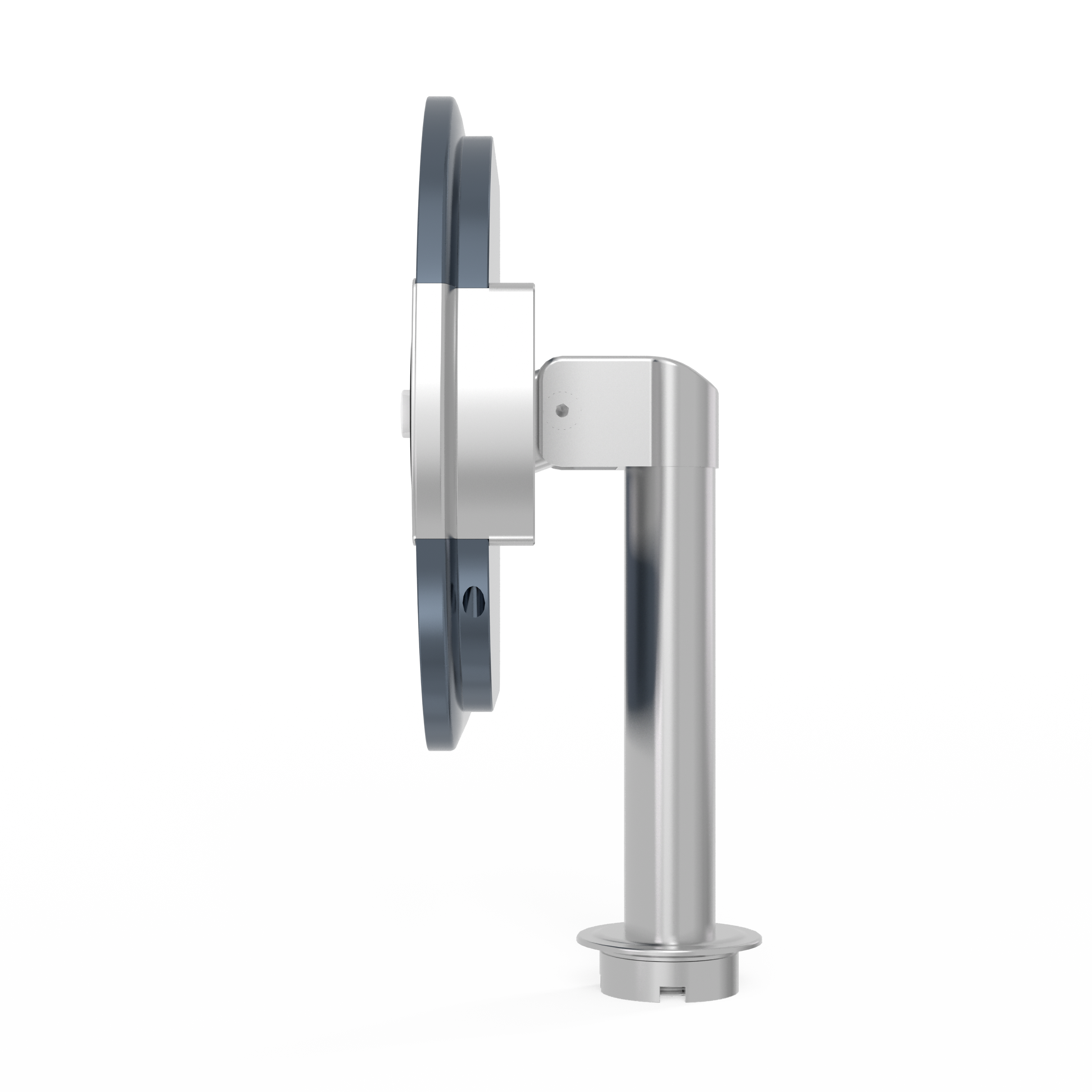

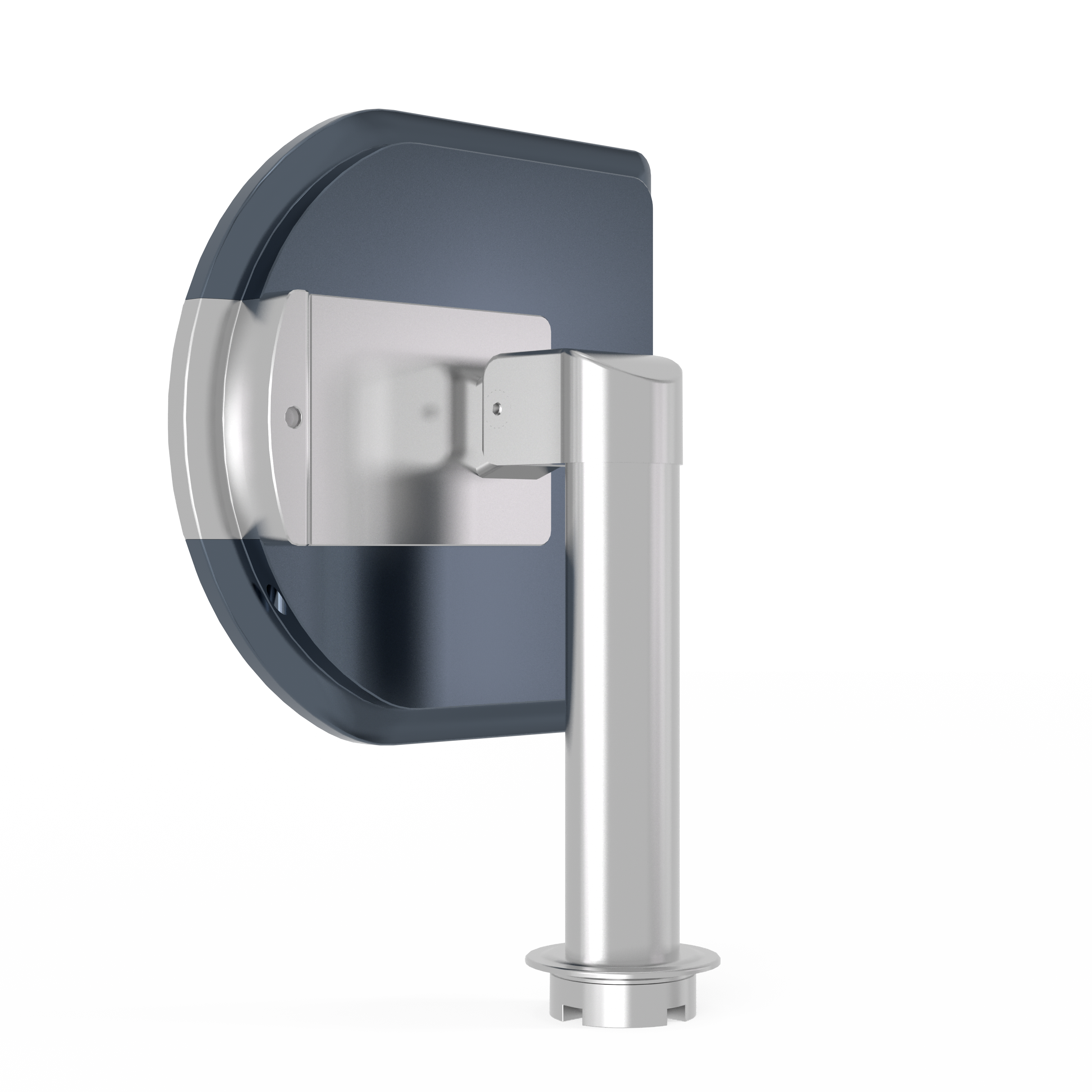

Product InstallionInstallation MethodHanging
Parts
RequiredAC AdapterDC12V 3A
