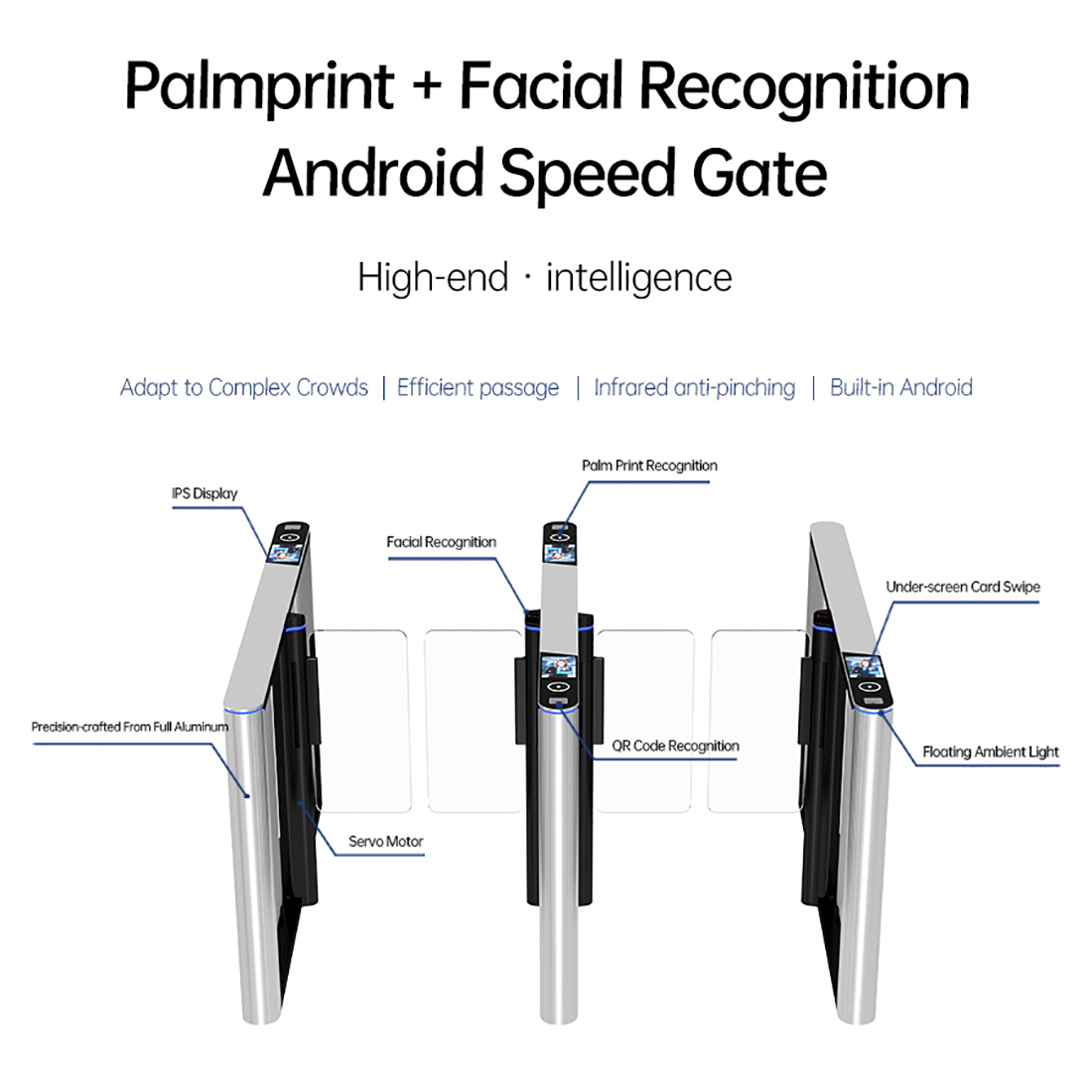

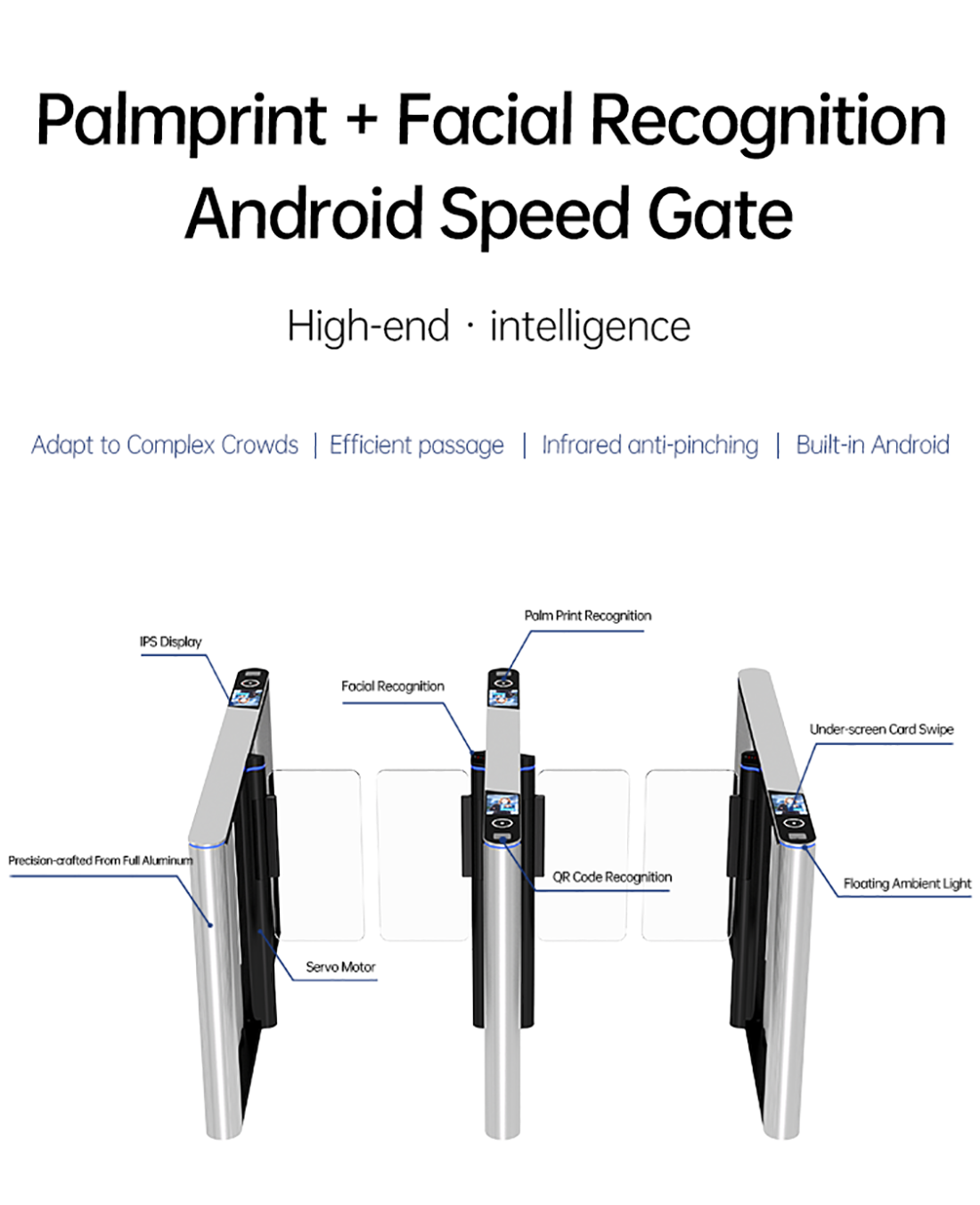

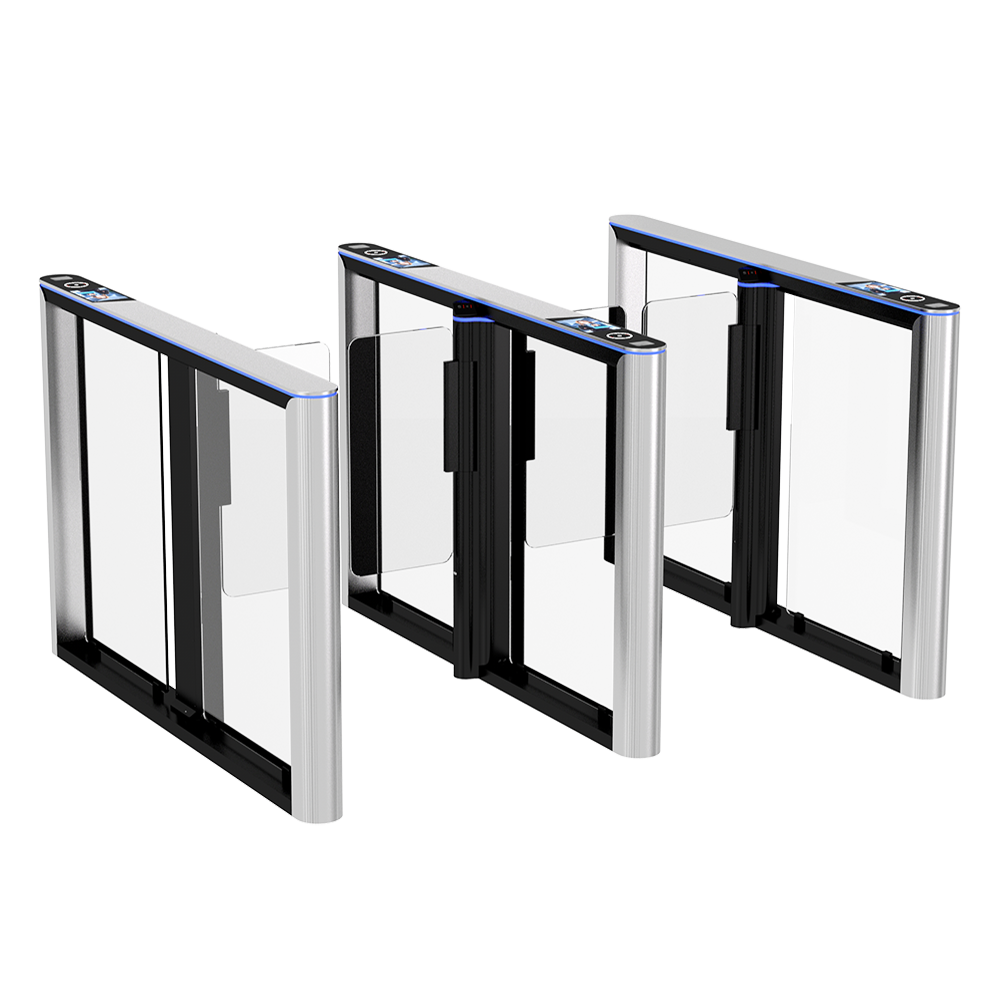

ST5 Plamprint + Face + QR Code Recognition+Android Speed Gate

share
copy Link
Facebook
X
LinkedIn
Pinterest

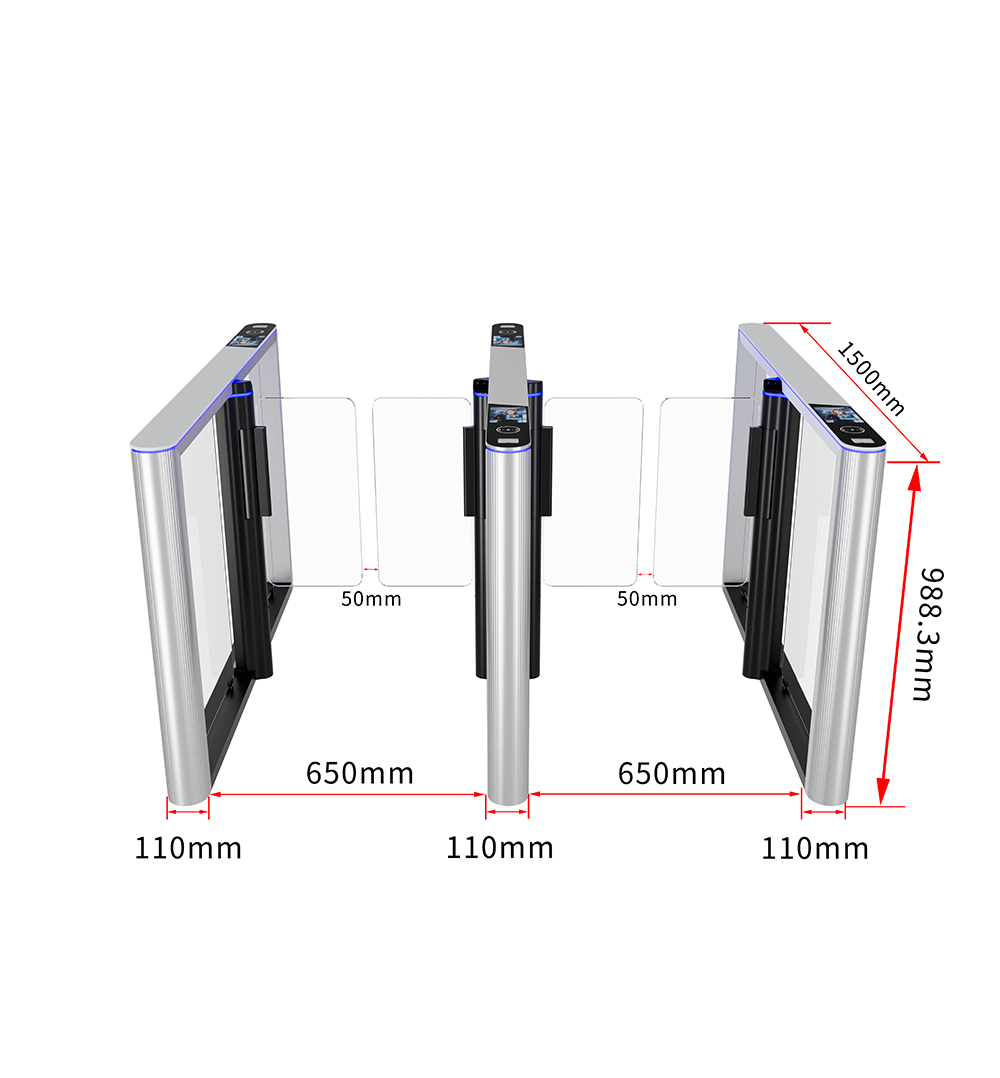

Measurement 1500(L)*110(W)*990(H)mm
RAM+ROM 2+8G

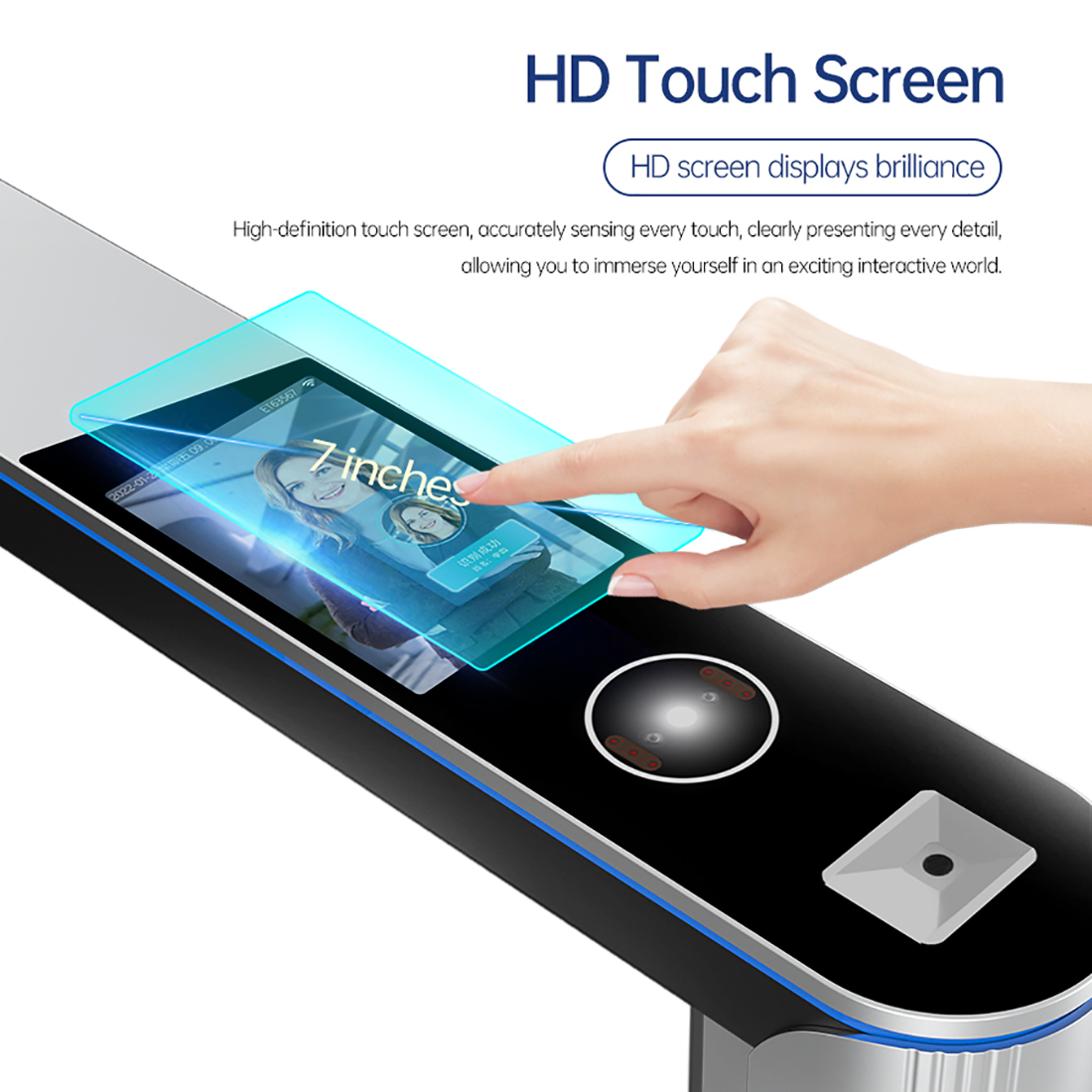

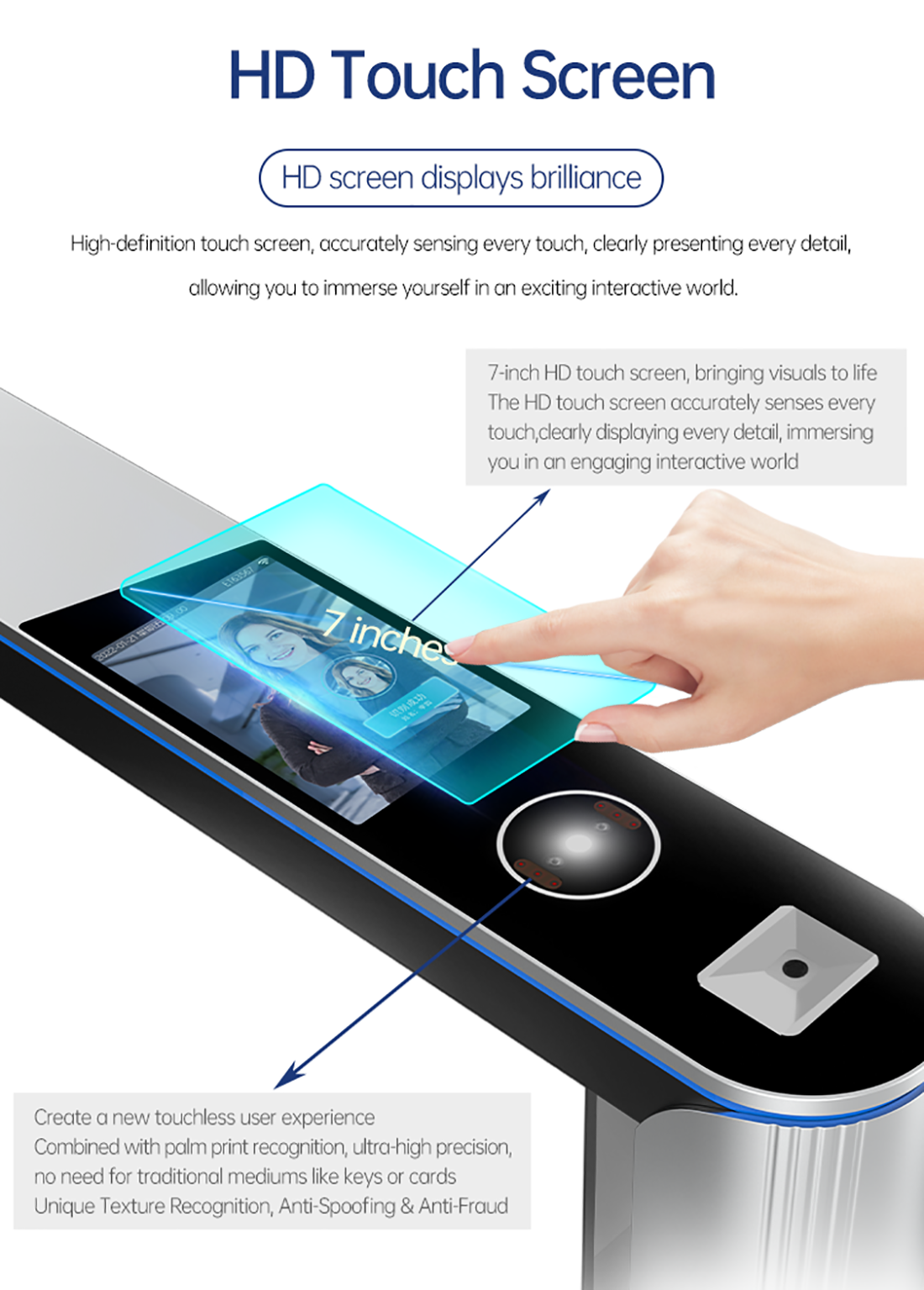

LCD 7-inch, 800*1280
Camera Binocular 200 Megapixel, Wide-dynamic
Passing Efficiency 50 person/min

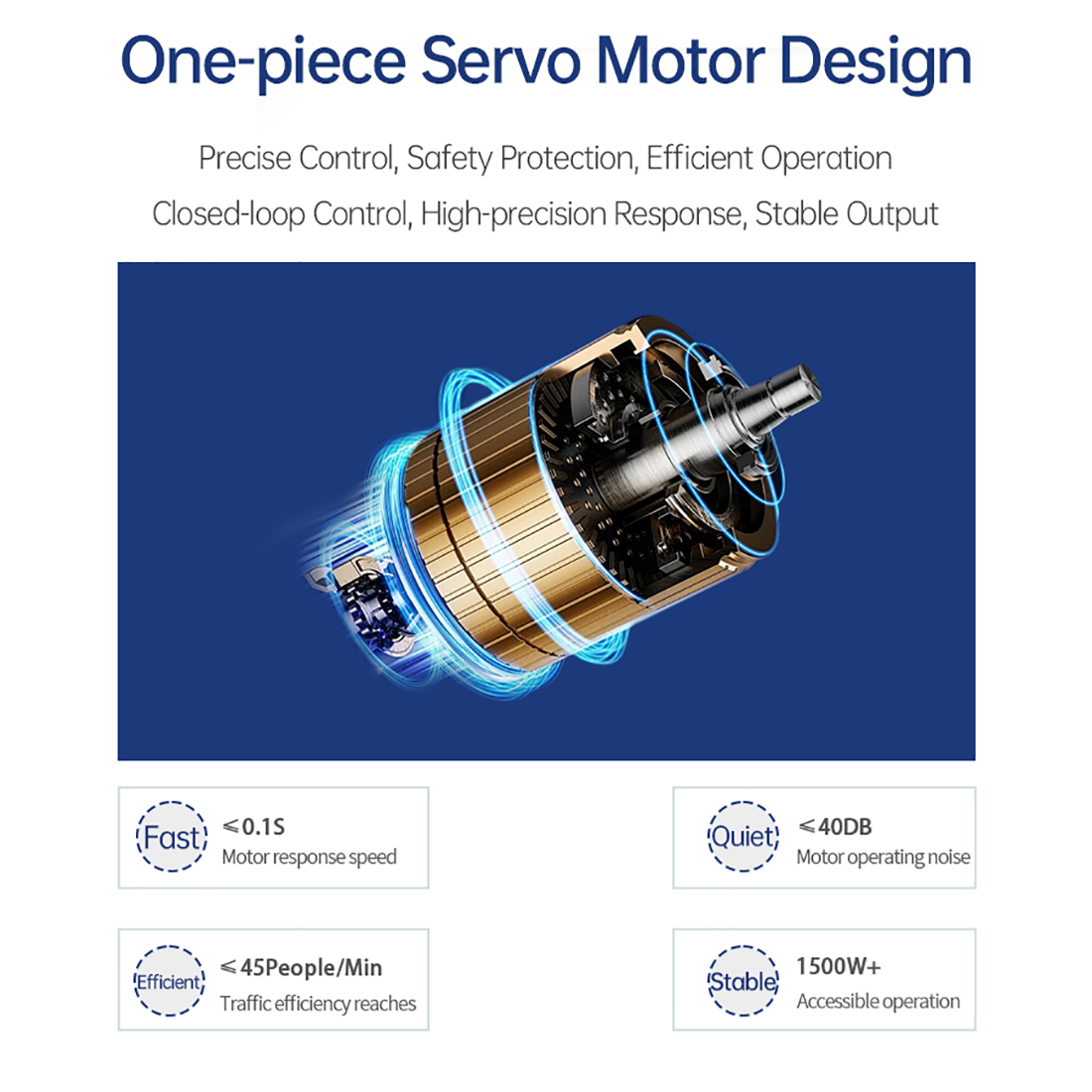

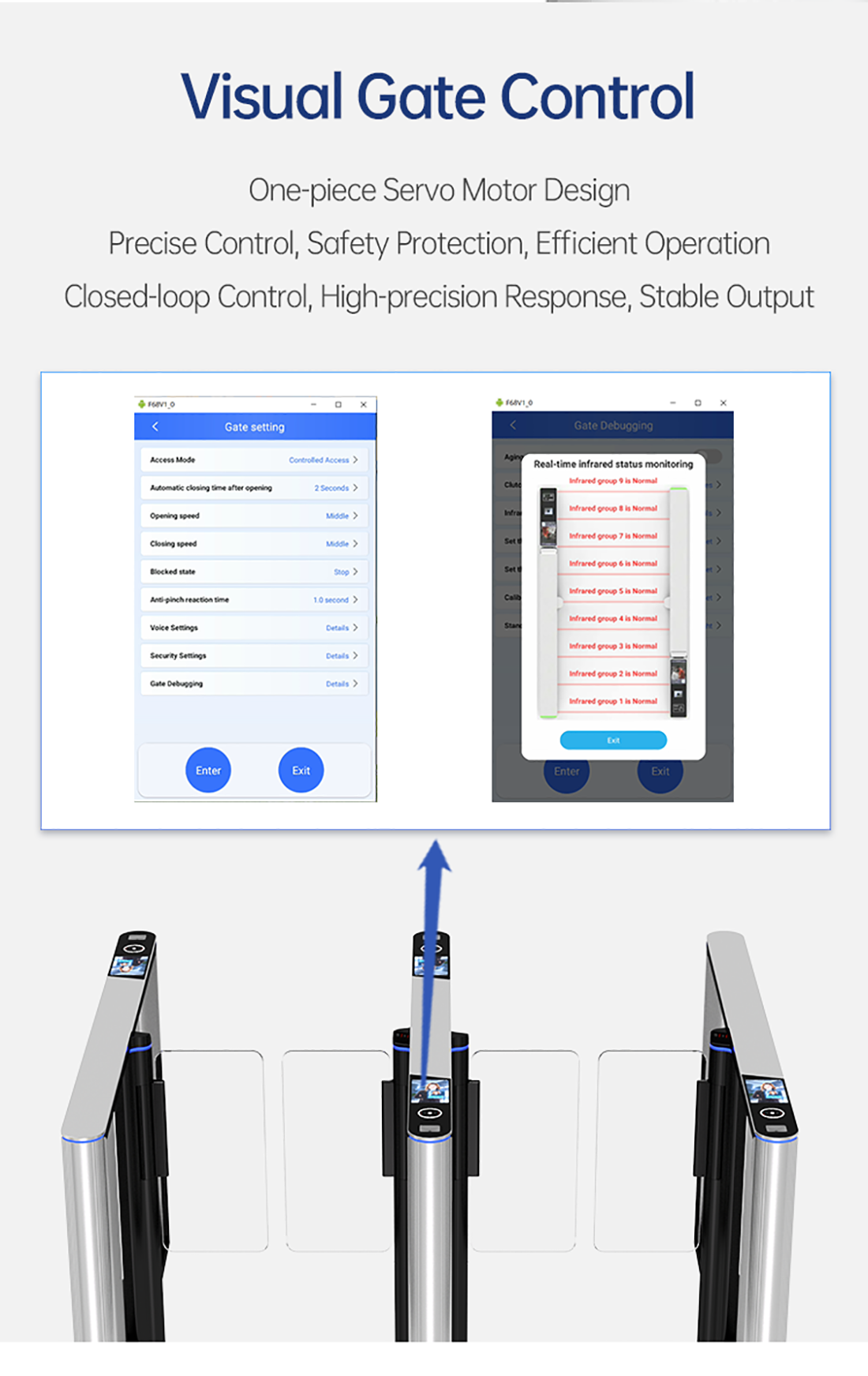

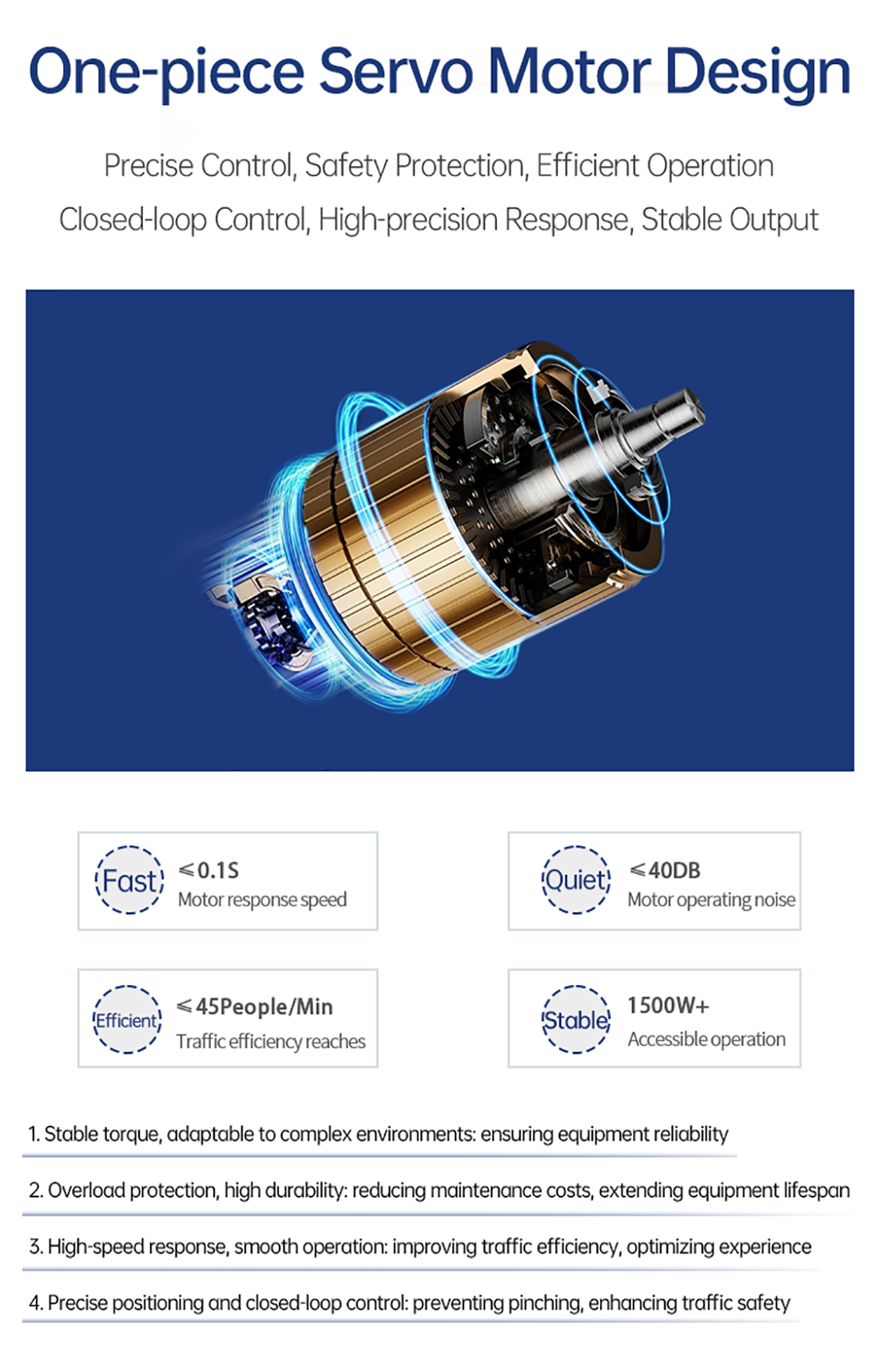

Drive Motor Servo Motor
Passage Width 600-900mm (Customizable)
Post Material Aircraft-grade Aluminum Alloy
Baffle Material 8mm Toughened Glass
Swing Door Material 10mm Acrylic /Toughened Glass
Door Opening Speed <0.2s
Audio 30,000 Stereo Speakers

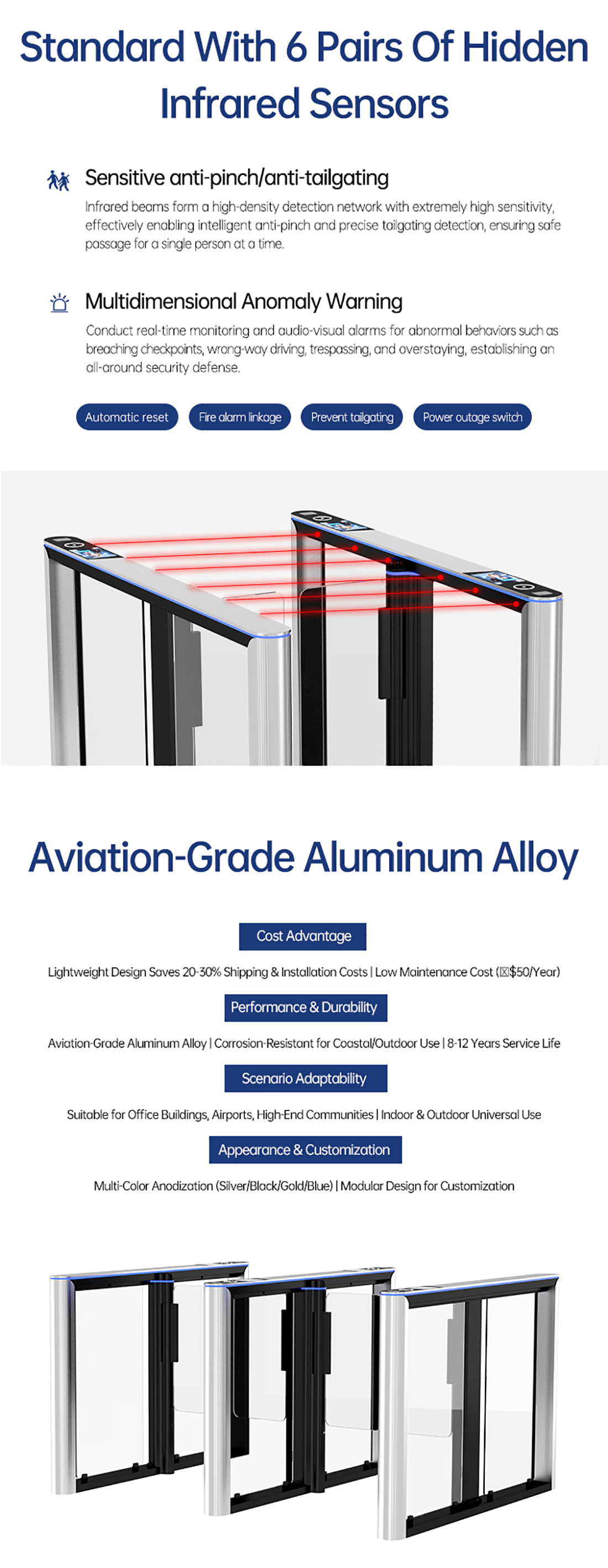

Infrared Senor 6 Pairs
Voltage Input AC220V, Working Voltage DC24V
Ethernet Support
WIFI Support
Accuracy 99.98%
Recognition Speed 200~300ms
Operation System Android
User Capacity 50000
Recognition Distance 0.5~3 Meters
Language English, Chinese(Simplified/Traditional), Japanese, Korean, Turkish, Italian, French, Hebrew(Support Customize Language)
Chat for more Info
Leave your message

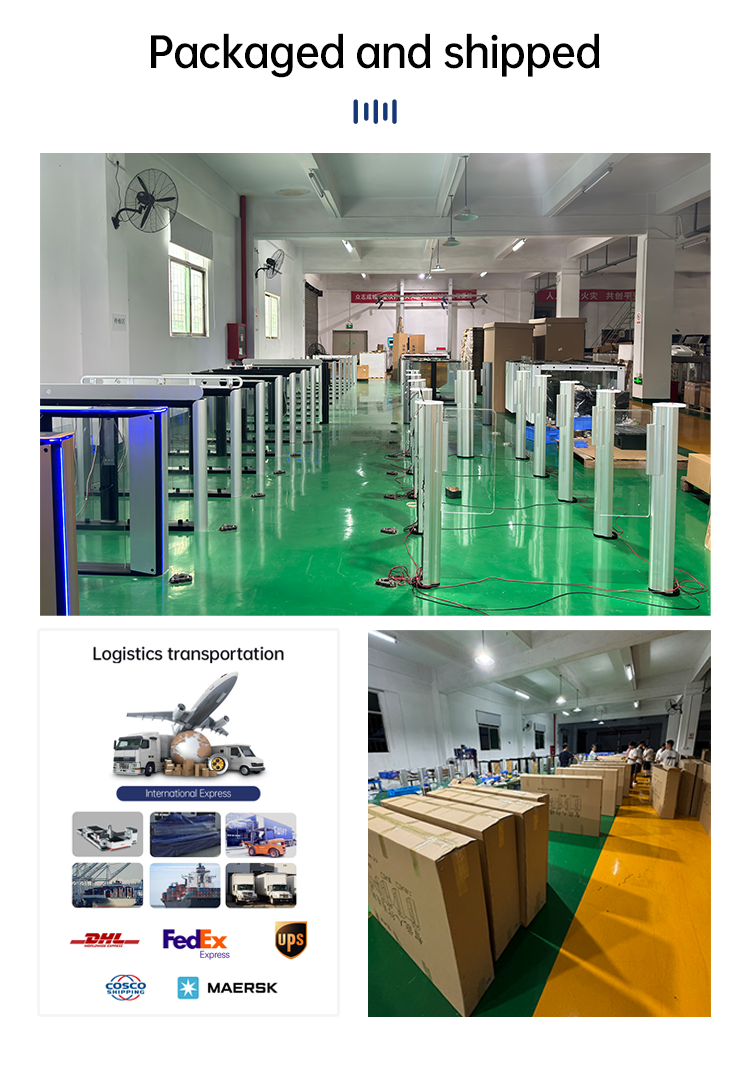

DetailProduct ParametersProduct DimensionCompany InformationPackaged and shipped

星舰5英文_01.png星舰5英文_02-1.png星舰5英文_02-2.png星舰5英文_03 -1.png星舰5英文_03 -2.png星舰5英文_04.png星舰5英文_05.png星舰5英文_06.png

Key selling points

l Built-in IPS HD display with a resolution of 1920*1080, providing an excellent visual experience;

l Built-in Android operating system, providing a friendly docking platform for developers;

l Supports a wide range of media formats, including JPG, JPEG, PNG images and MP4 videos;

l Ability to display useful information such as access guidance, weather forecasts and news notifications;

l Sturdy aluminum alloy frame and 3mm high-strength tempered glass ensure product durability and safety;

l Multi-scenario use: access control, gate, attendance;

l Various identification methods, optional face recognition, palm print, swipe card, QR code;

l Support mixed verification: face + palm print, face + card, palm print + card;

l Live body detection: effectively defend against non-live body attacks such as 3D printing, electronic screens, videos, pictures, masks, hoods and so on;

l Interface standardization: support access control industry Wegen protocol, 485, HTTP, WebSocket, Uniapp, MQTT.

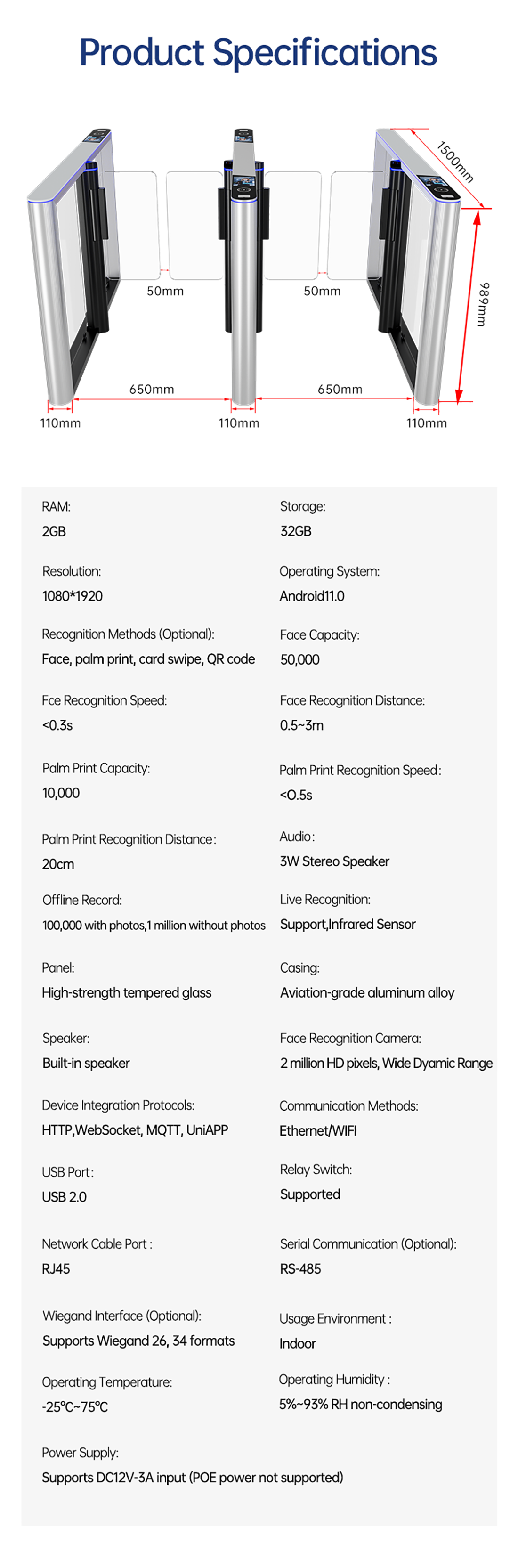

Specification

Hardware Parameters

Running Memory

2G

Storage Space

32G

Monitor

21.5-inch

Resolution (of a photo)

1920*1080

kneading Board

High Strength Tempered Glass

Housings

Aircraft Grade Aluminum Alloy

Communication Method

Ethernet

Support

WiFi

Support

Input and Output

USB Port

USB2.0

Relay Switch

Support

Network Interface

RJ45

Serial Communication (optional)

RS-485

Wergen Interface (optional)

Supports Wigan 26, 34 format

Power Supply

Supports DC12V-3A input (PoE power supply not supported)

Environmental Requirements

Operating Environment

Indoor

Operating Temperature

-25℃～+75℃

Operating Humidity

5%~93%RH No Condensation
