ST2 3D+Face + Card Reading + QR Code Recognition+Android Speed Gate
share

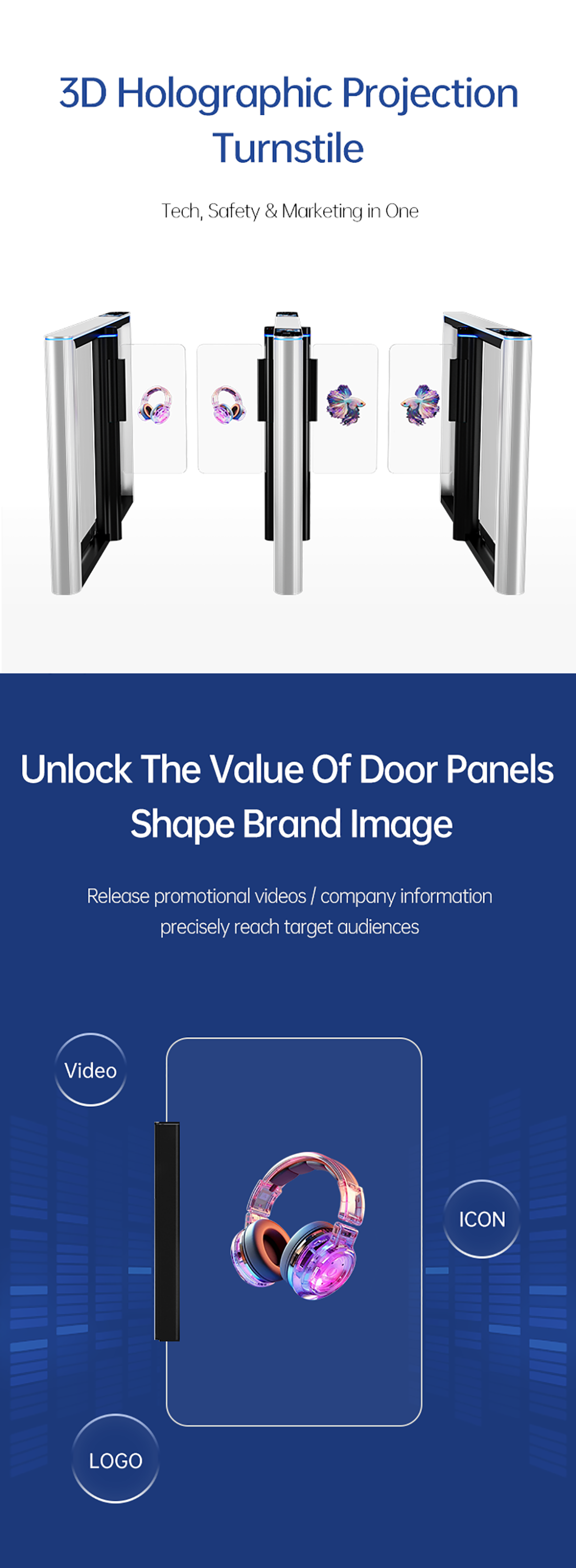

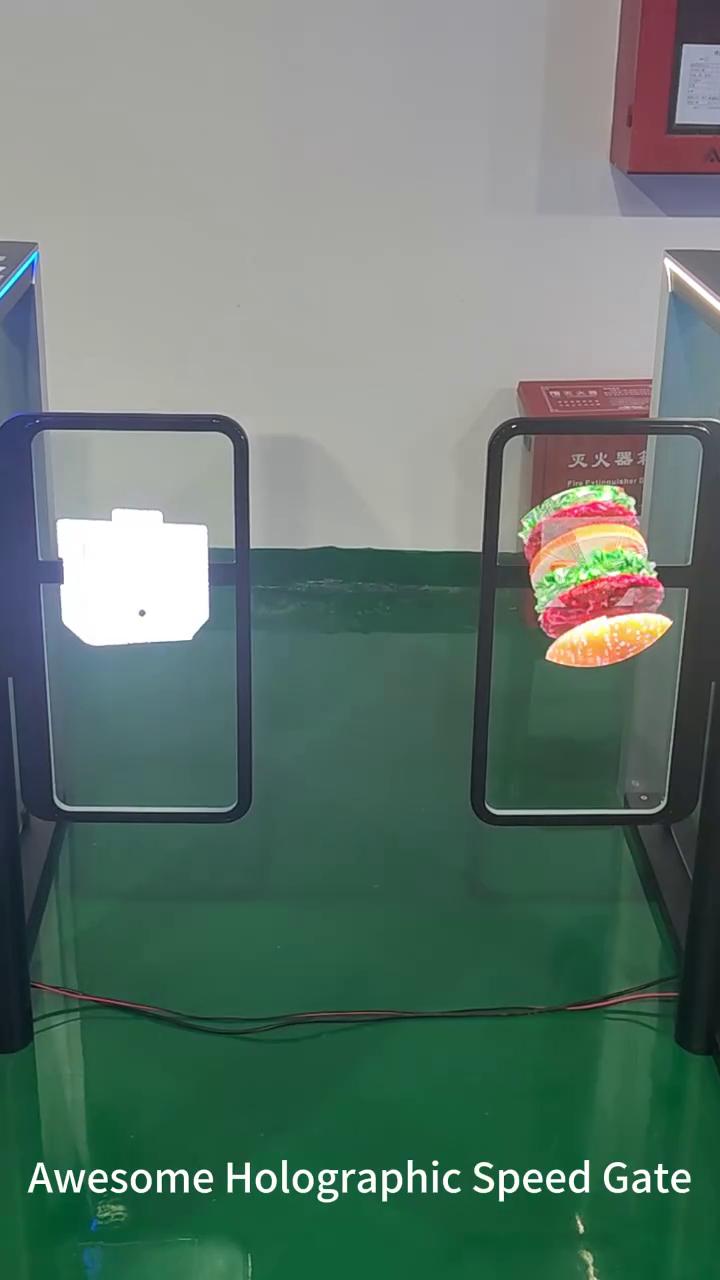

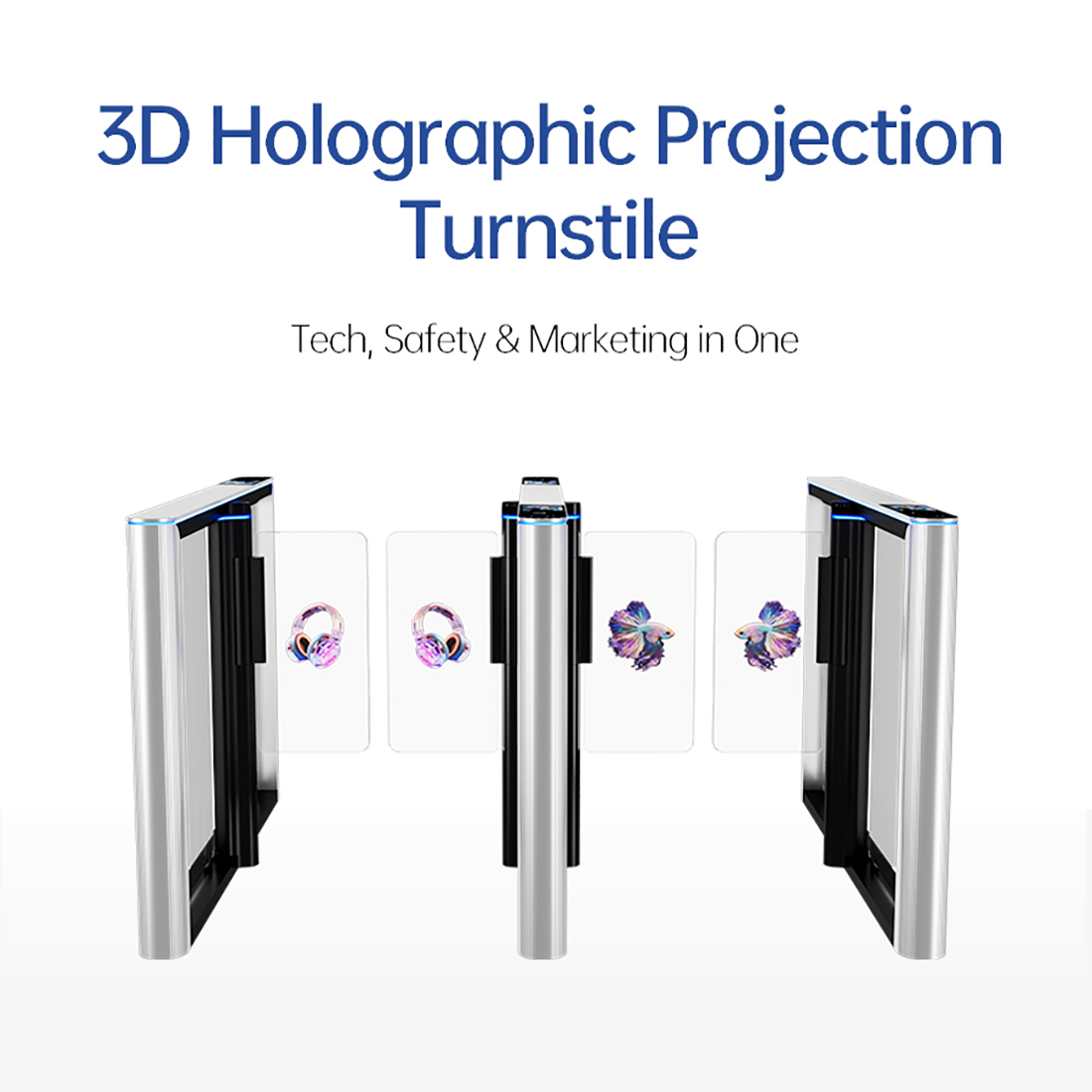

The holographic projection gate is an innovative product that subverts the traditional channel gate.

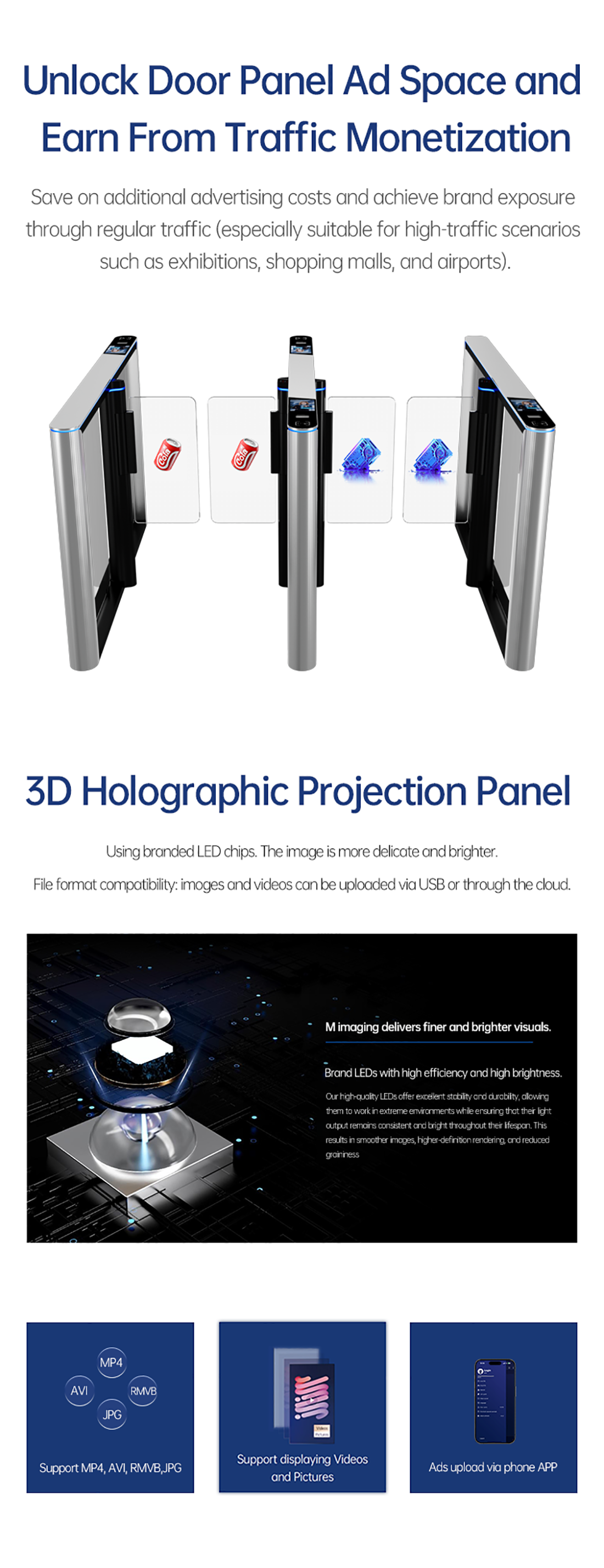

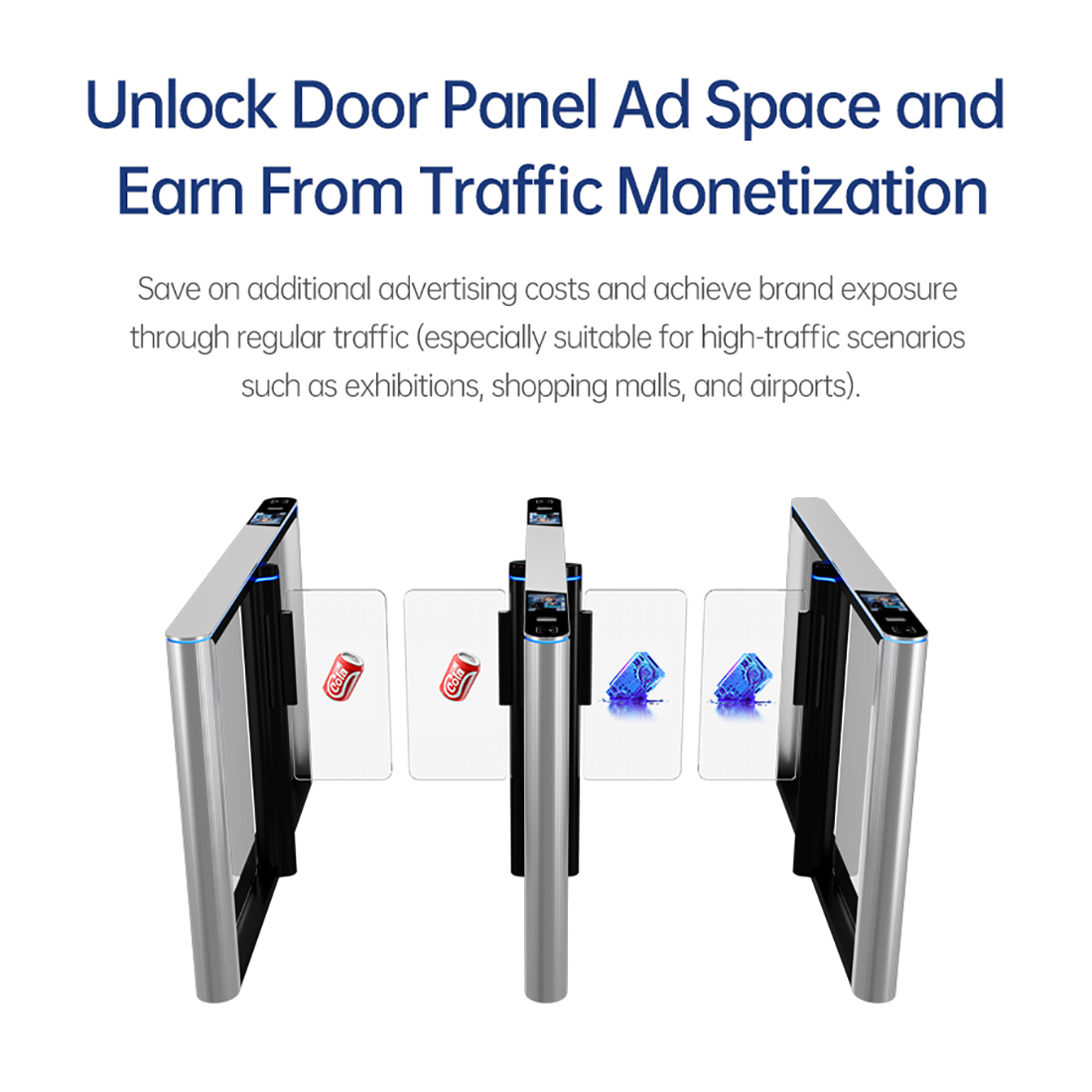

Its main feature is that it uses holographic projection technology to project cool advertisements on the baffle, breaking the single and boring form of the traditional channel gate, combining advertising and access control management, and providing users with a new access control experience.
In addition to the basic access control management function, the holographic projection gate also supports multiple ways of identity authentication, such as face recognition, card swiping, etc., to ensure the security and accuracy of access control.

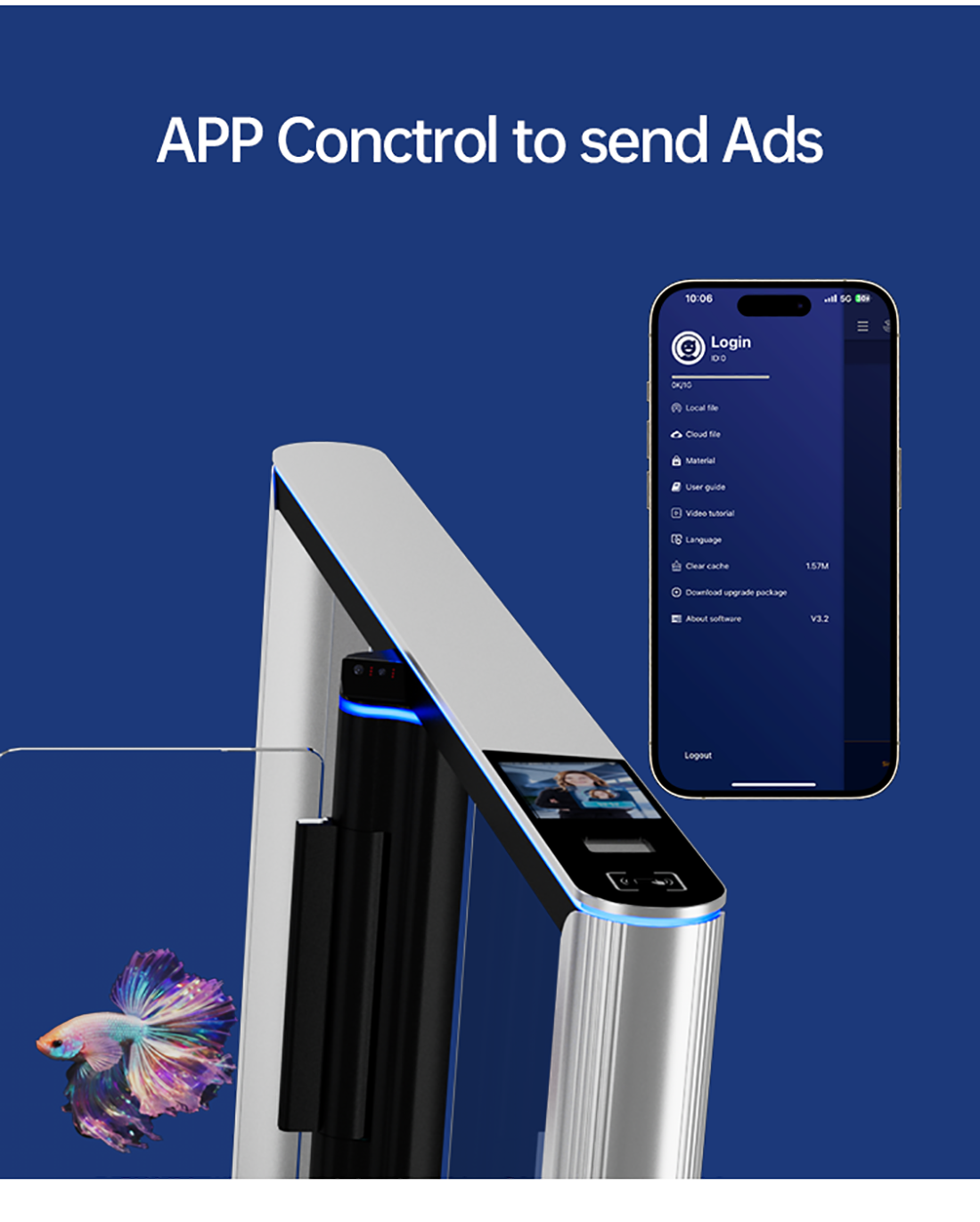

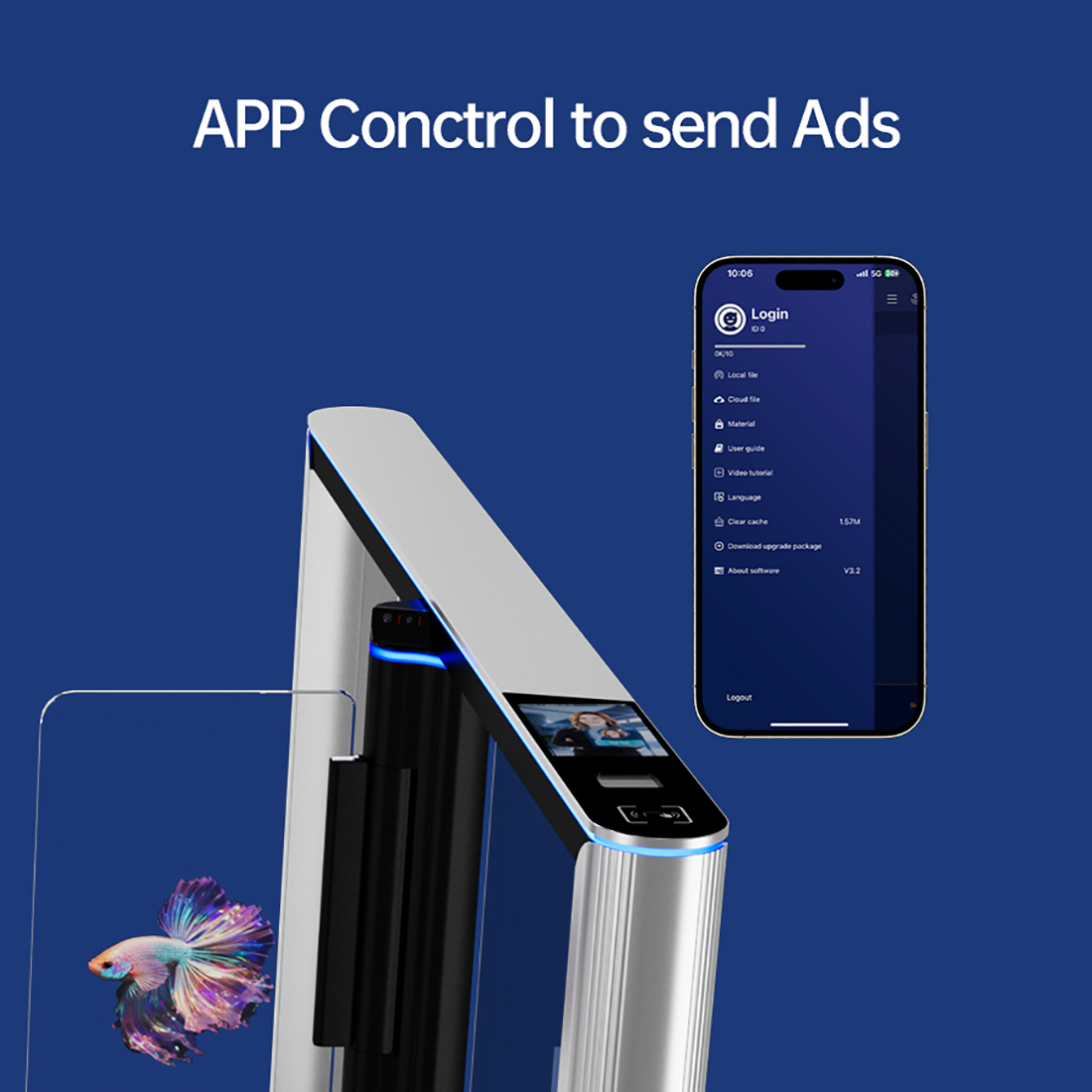

In addition, it also supports remote management, data statistics, intelligent analysis and other functions, which facilitates administrators to monitor and control access control management and advertising.
Its main feature is that it uses holographic projection technology to project cool advertisements on the baffle, breaking the single and boring form of the traditional channel gate, combining advertising and access control management, and providing users with a new access control experience.
In addition to the basic access control management function, the holographic projection gate also supports multiple ways of identity authentication, such as face recognition, card swiping, etc., to ensure the security and accuracy of access control.
In addition, it also supports remote management, data statistics, intelligent analysis and other functions, which facilitates administrators to monitor and control access control management and advertising.
DetailProduct ParametersProduct DimensionCompany InformationPackaged and shipped

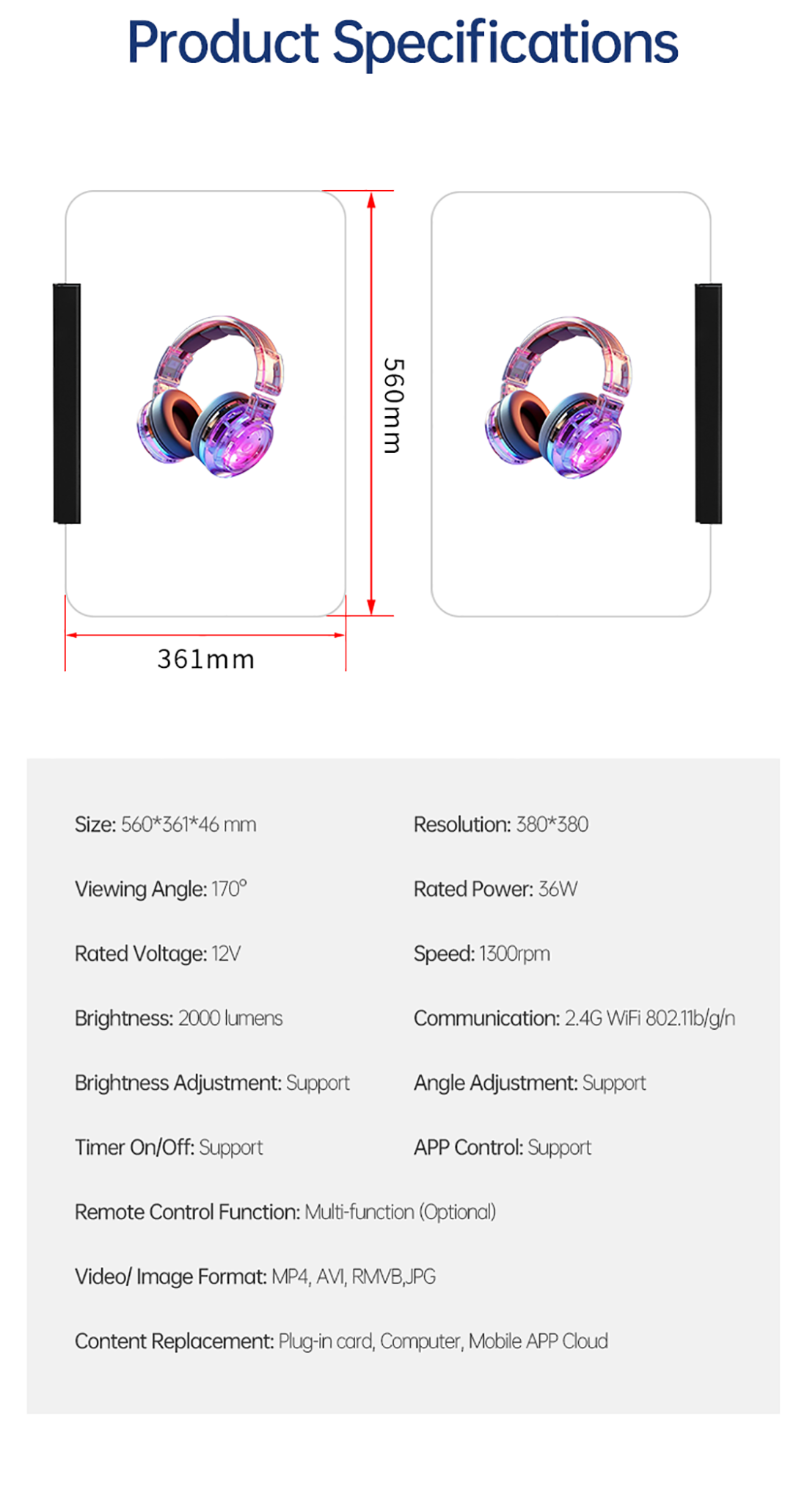

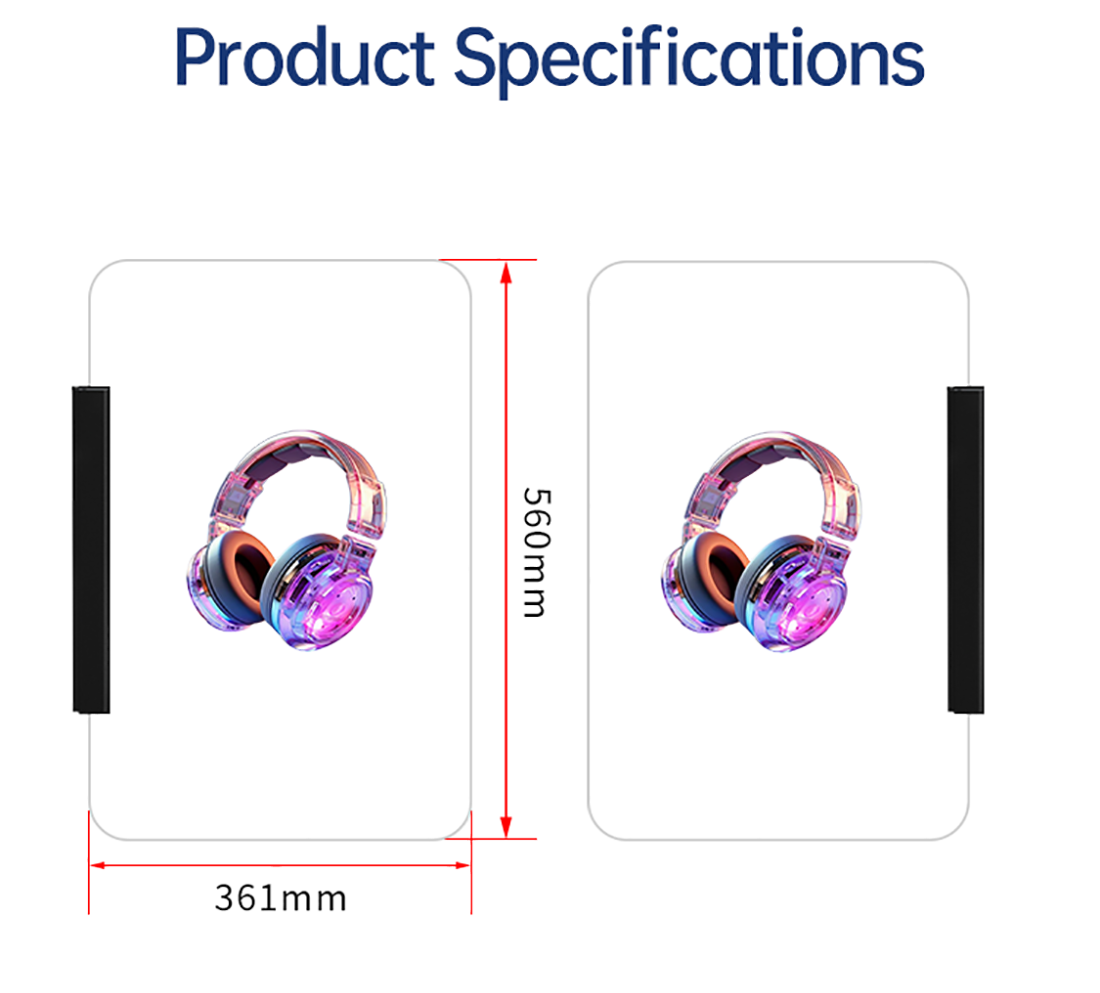

| 3D Holographic Panel | Dimension | 248*71*41mm |
| Resolution | 380*380 | |
| Viewing Angle | 170° | |
| Rated Power | 36W | |
| Speed | 1300rpm | |
| Brightness | 2000 lumens | |
| Video Image Format | MP4, AVI, RMVB,JPG | |
| Hardware Parameters | Measurement | 1500(L)*110(W)*990(H)mm |
| RAM | 2G | |
| ROM | 8G | |
| LCD | 7-inch, 800*1280 | |
| Camera | Binocular 200 Megapixel, Wide-dynamic | |
| Passing Efficiency | 50 person/min | |
| Drive Motor | Servo Motor | |
| Passage Width | 600-900mm (Customizable) | |
| Post Material | Aircraft-grade Aluminum Alloy | |
| Baffle Material | 8mm Toughened Glass | |
| Swing Door Material | 10mm Acrylic /Toughened Glass | |
| Door Opening Speed | <0.2s | |
| Audio | 30,000 Stereo Speakers | |
| Infrared Senor | 6 Pairs | |
| Voltage | Input AC220V, Working Voltage DC24V | |
| Communication Method | Ethernet | Support |
| WIFI | Support | |
| Software Parameters | Live Detection | Support |
| Accuracy | 99.98% | |
| Recognition Speed | 200~300ms | |
| Operation System | Android | |
| User Capacity | 50,000 | |
| Recognition Distance | 0.5~3 Meters | |
| Language | English, Chinese(Simplified/Traditional), Japanese, Korean, Turkish, Italian, French, Hebrew(Support Customize Language) | |
