Card Reading+QR code recognition Mini Speed Gate
video
    video
    • 1/7

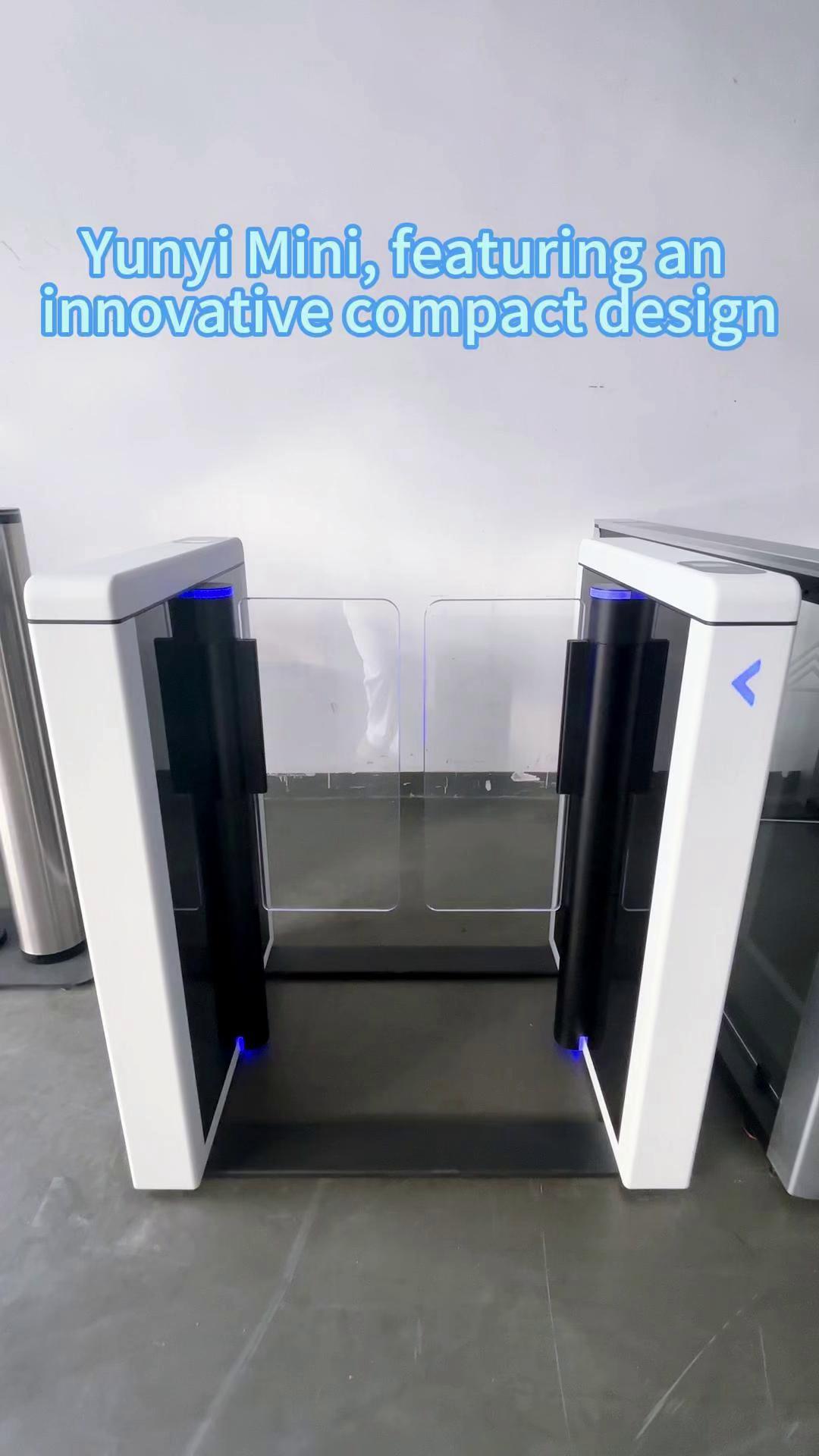

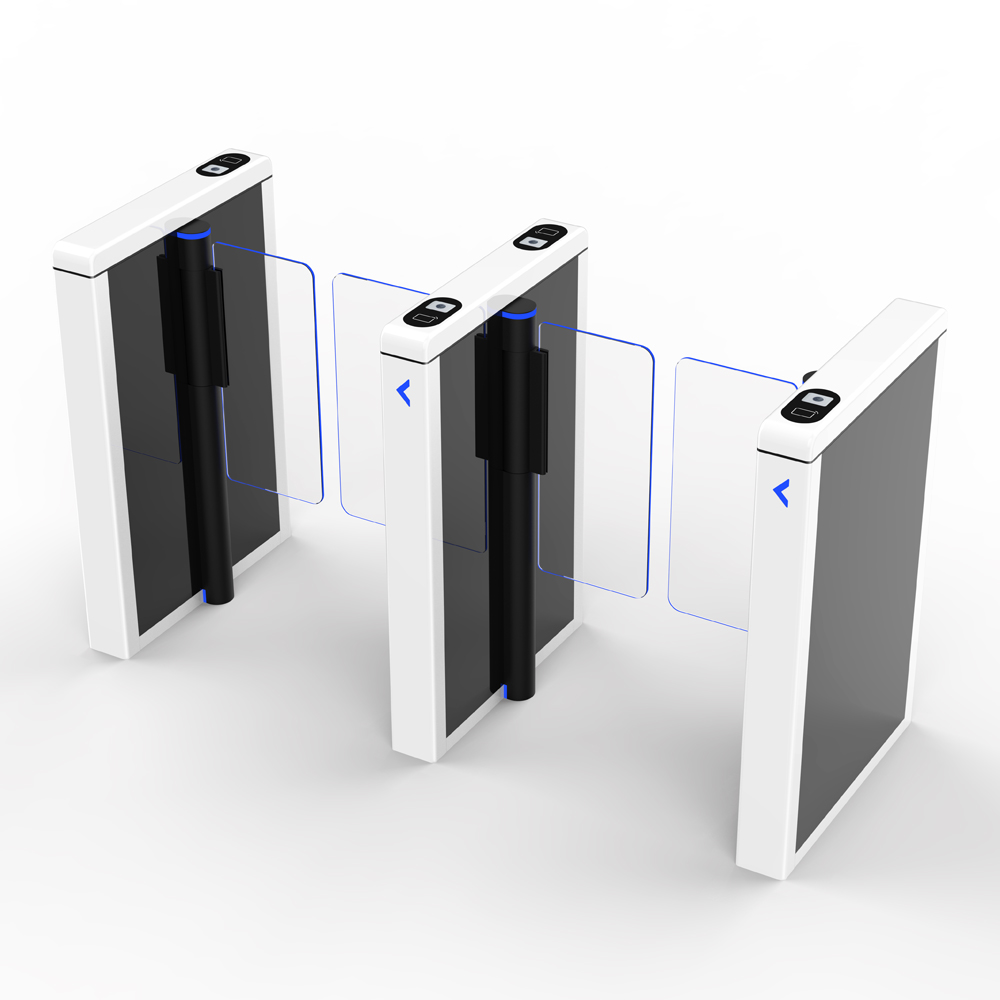

Card Reading+QR code recognition Mini Speed Gate

share
copy Link
Facebook
X
LinkedIn
Pinterest
Model Number mini yunyi
Place of Origin Guangdong, China
Turnstile function Anti-Pinch, Collision Avoidance, Anti-Tailgating
Brand Name EASCO
Material Aluminum Alloy
Passage Width 550mm - 900mm (Customizable)
Motor Power 100W (Peak power: 350W)
Infrared Sensors 6 pairs
Gate Opening Speed < 0.5S (Adjustable)
Passing Frequency 50 persons per minute

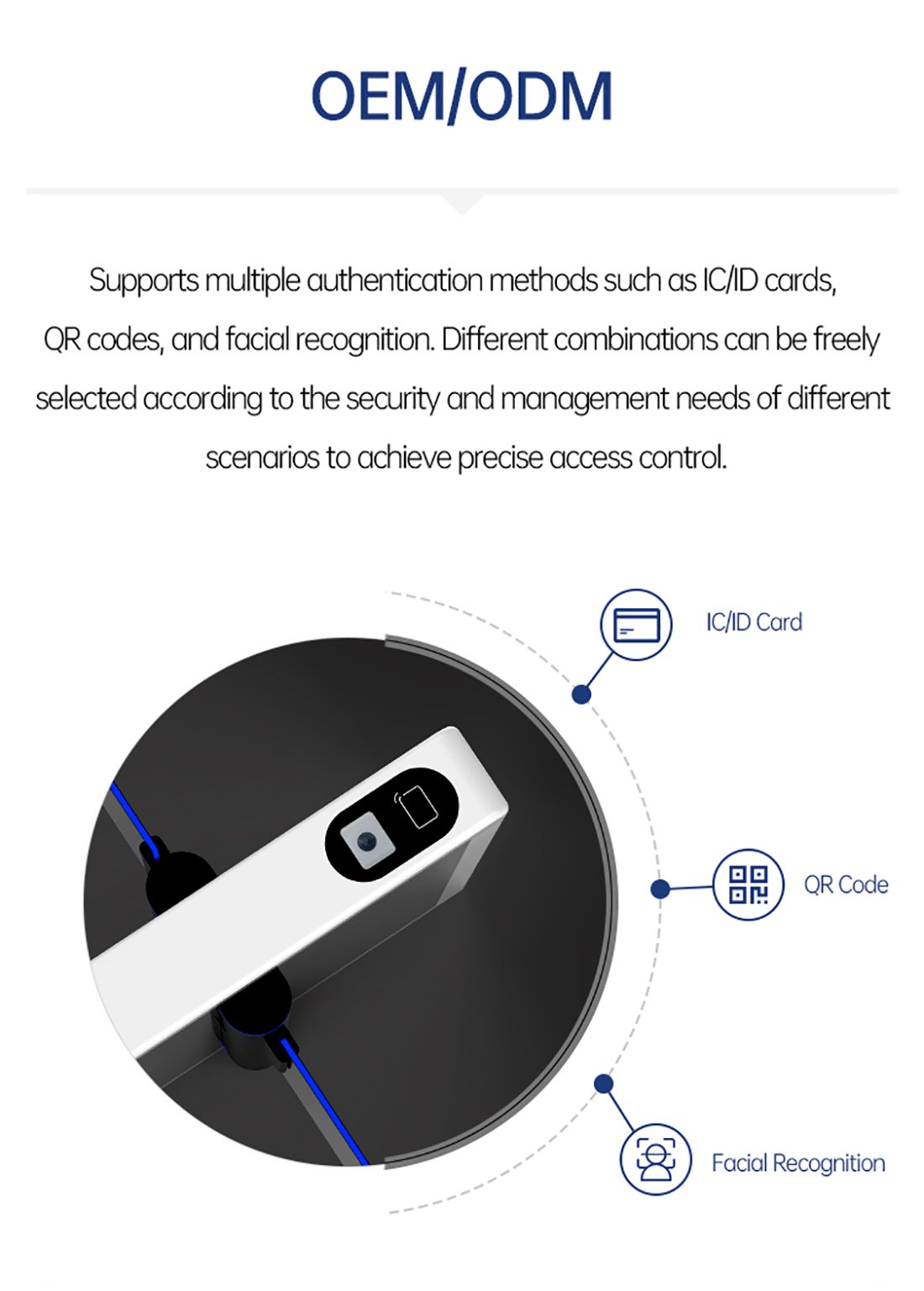

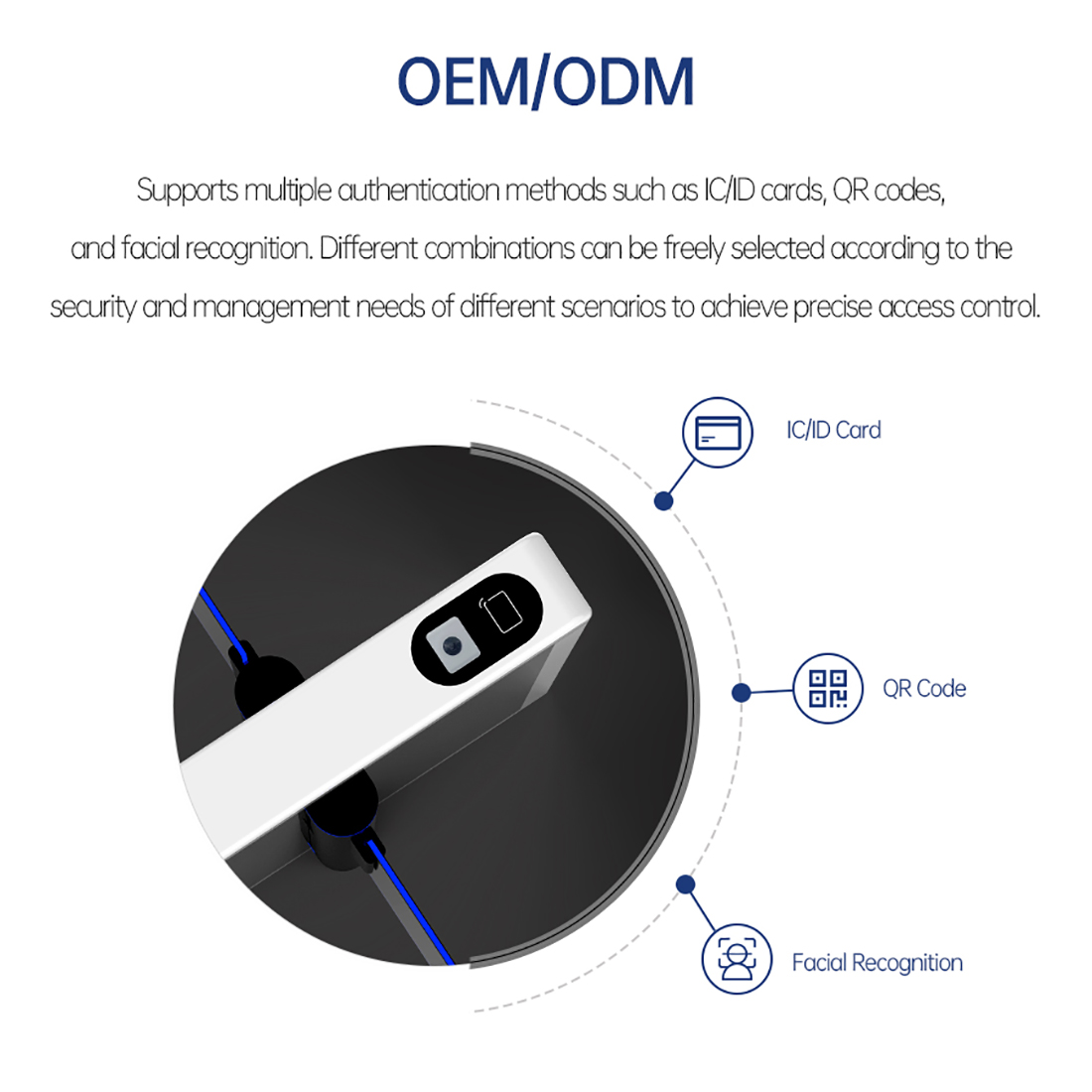

Access contol type RFID Card, QR Code
Chat for more Info
Leave your message
DetailProduct ParametersProduct DimensionCompany InformationPackaged and shipped

Mini_02.jpgMini_03.jpgMini_04.jpgMini_05.jpgMini_06.jpgMini_07.jpgMini_08.jpgMini_09.jpgMini_10.jpgMini_11.jpgMini_12.jpgMini_13.jpgMini_14.jpg

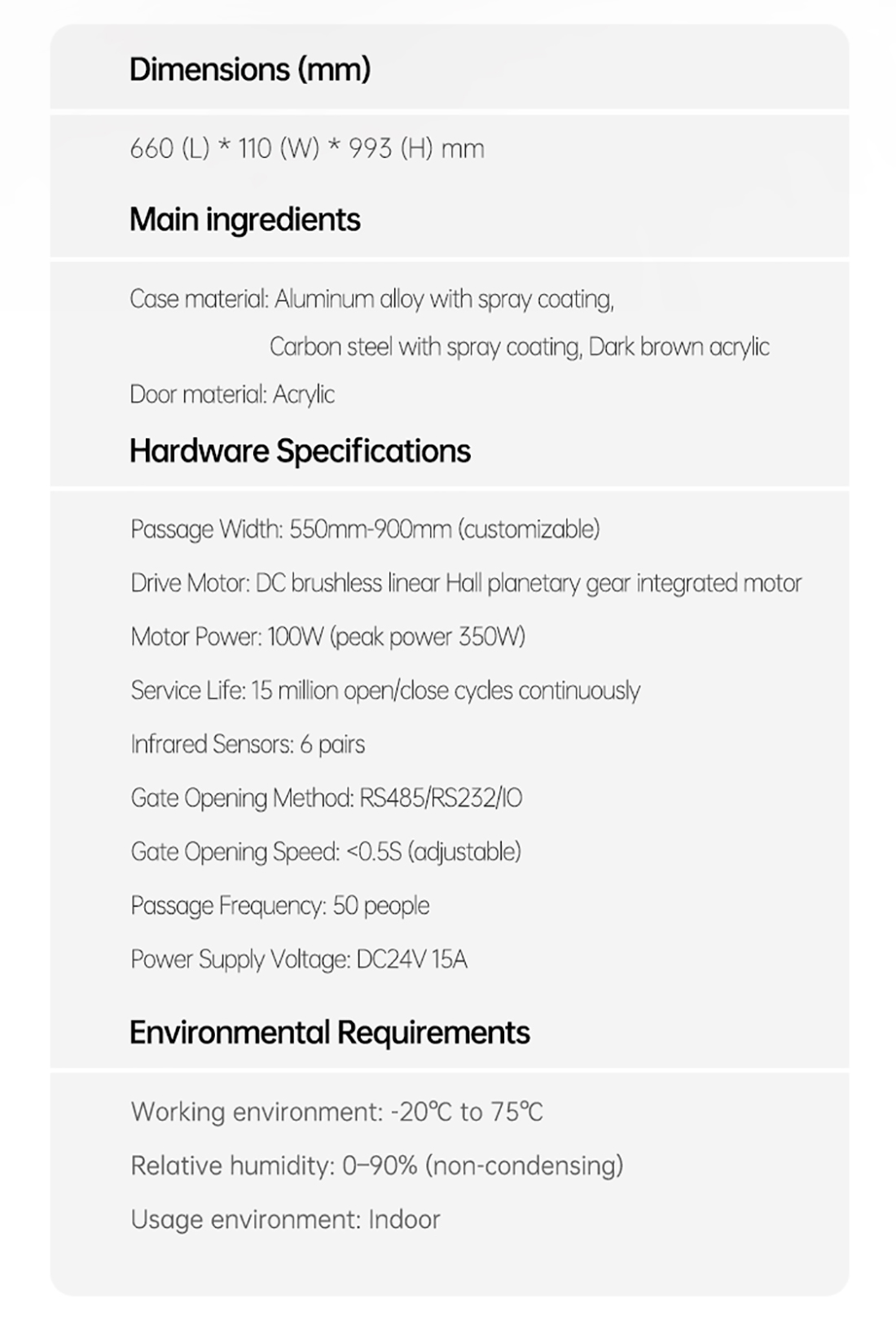

Turnstile Parameters
Product name
mini turnstile

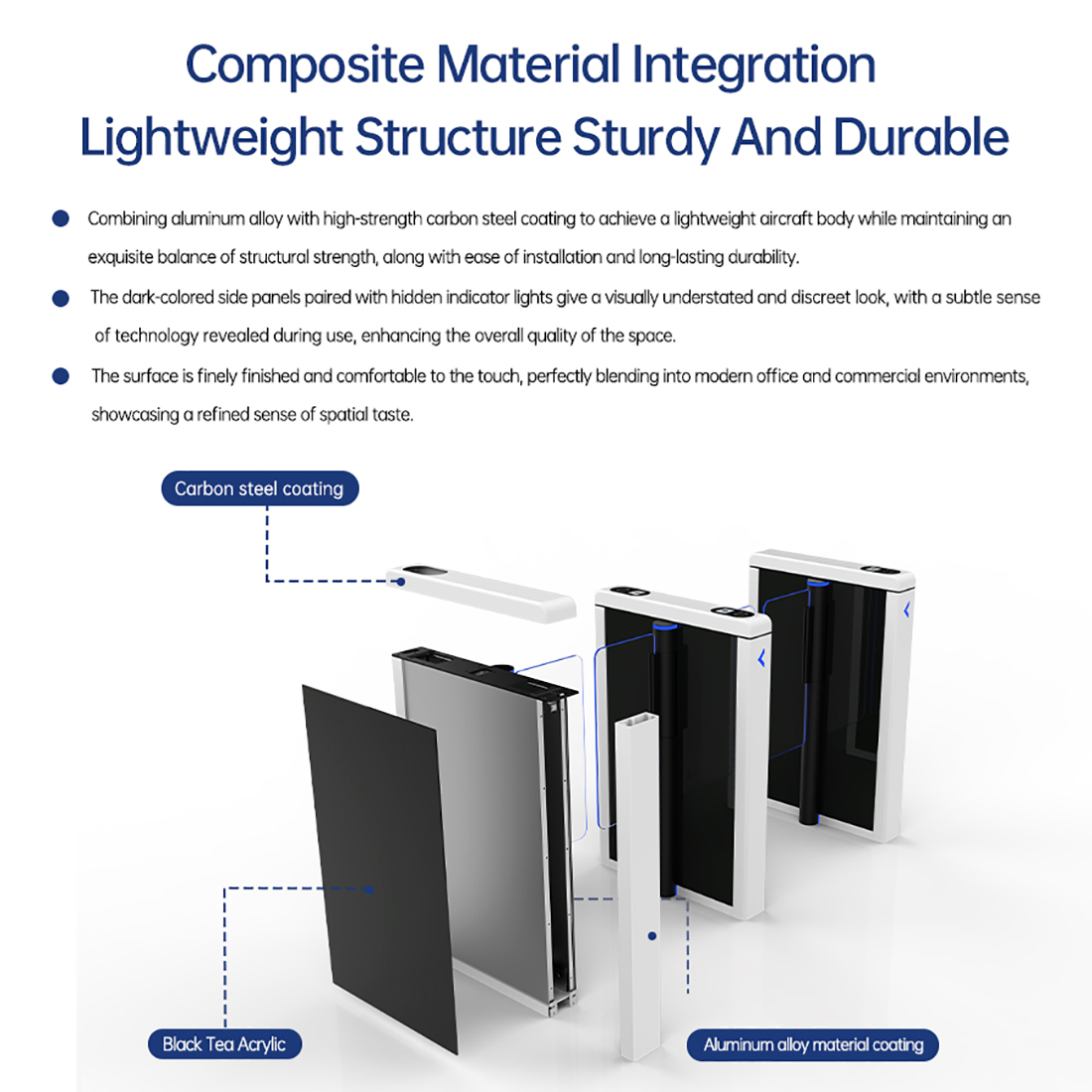

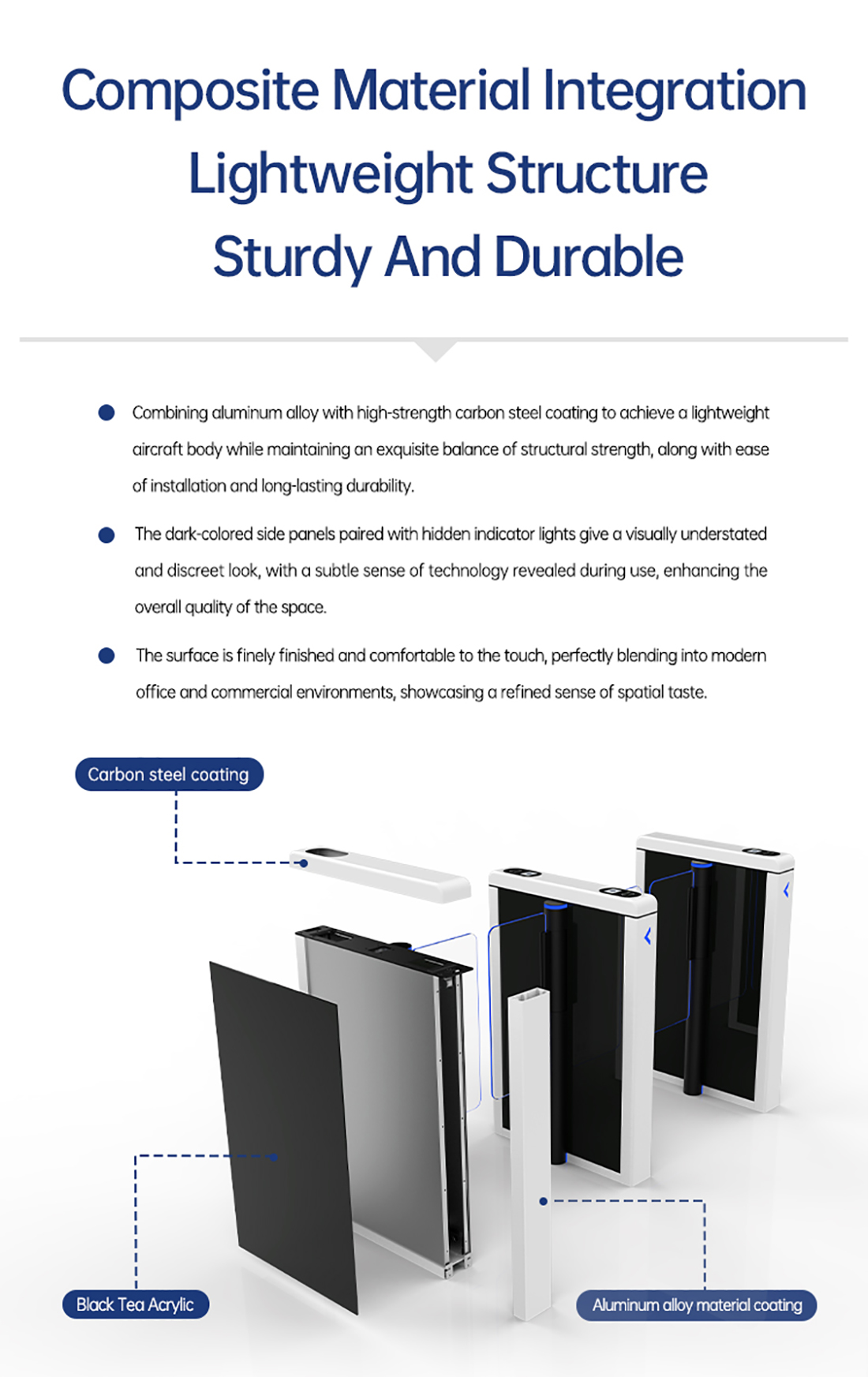

Material

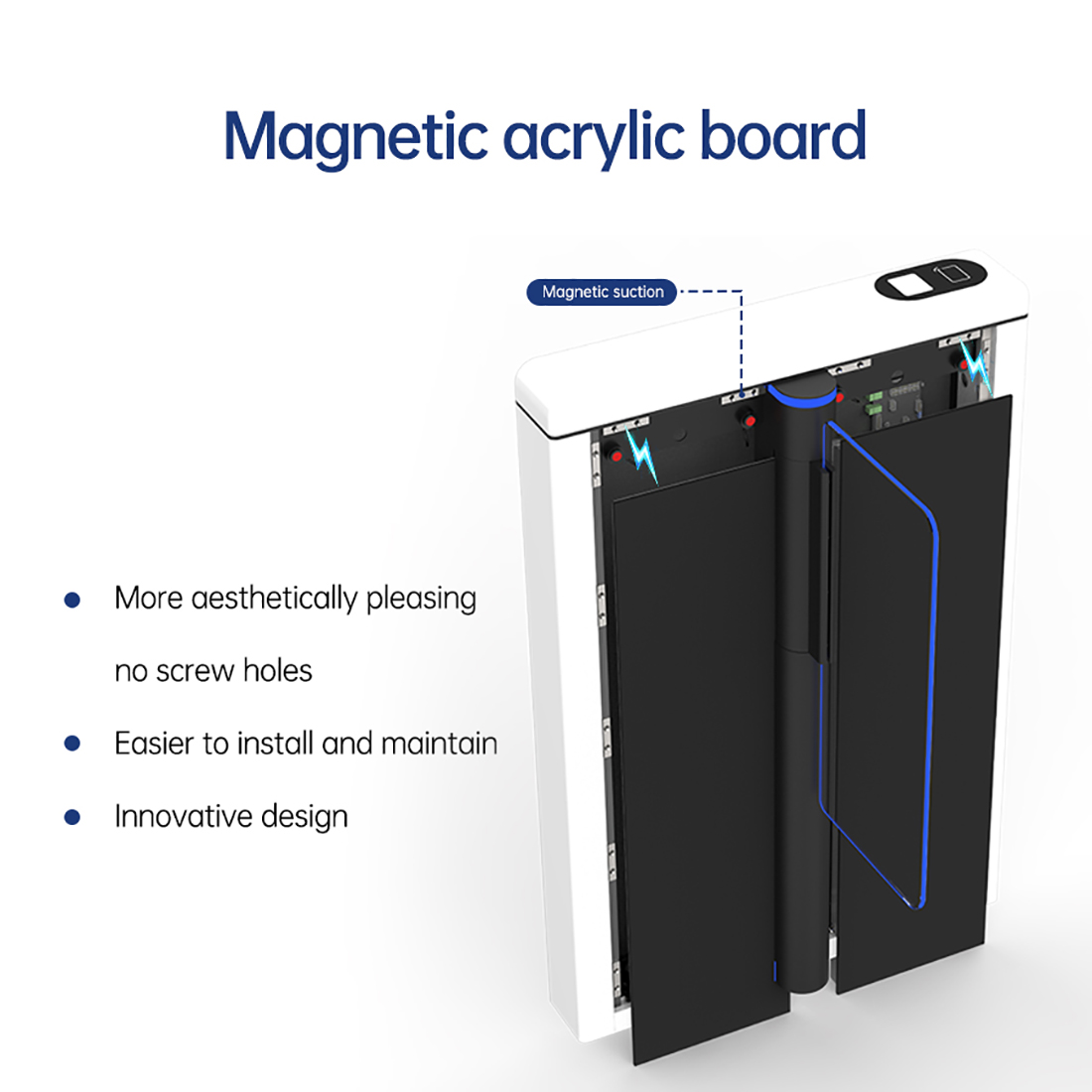

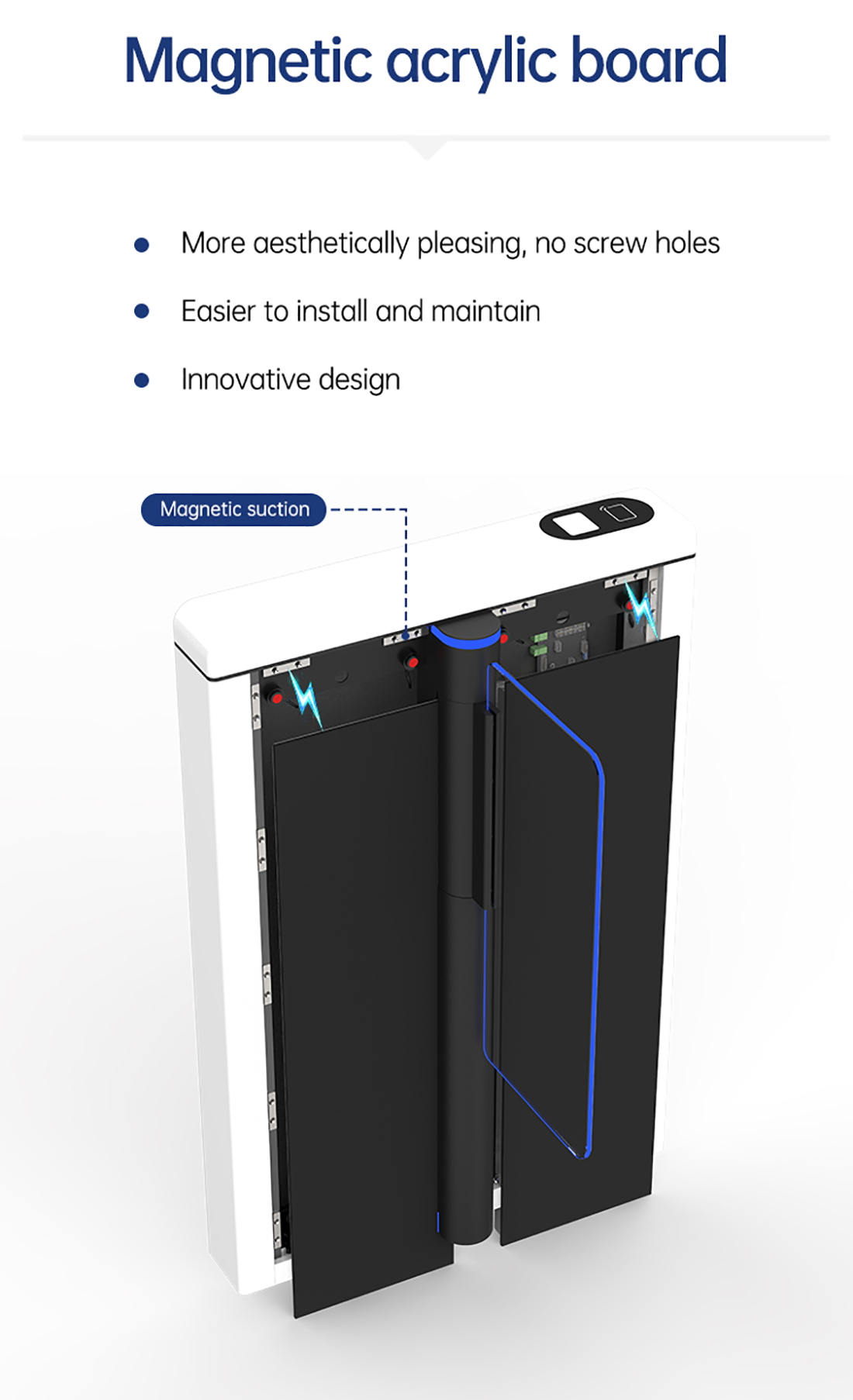

Spray-painted aluminum alloy + Spray-painted carbon steel + Black acrylic

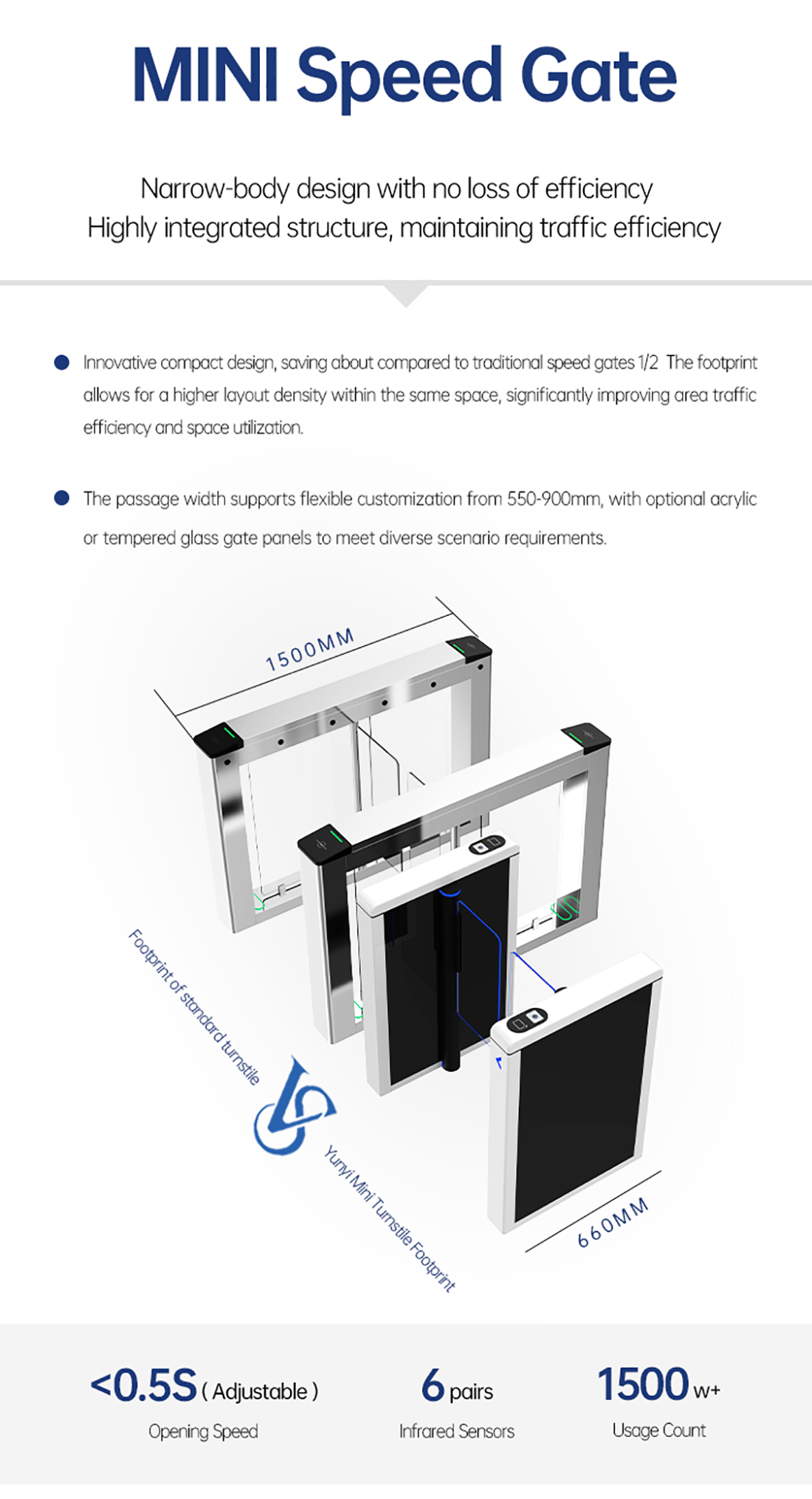

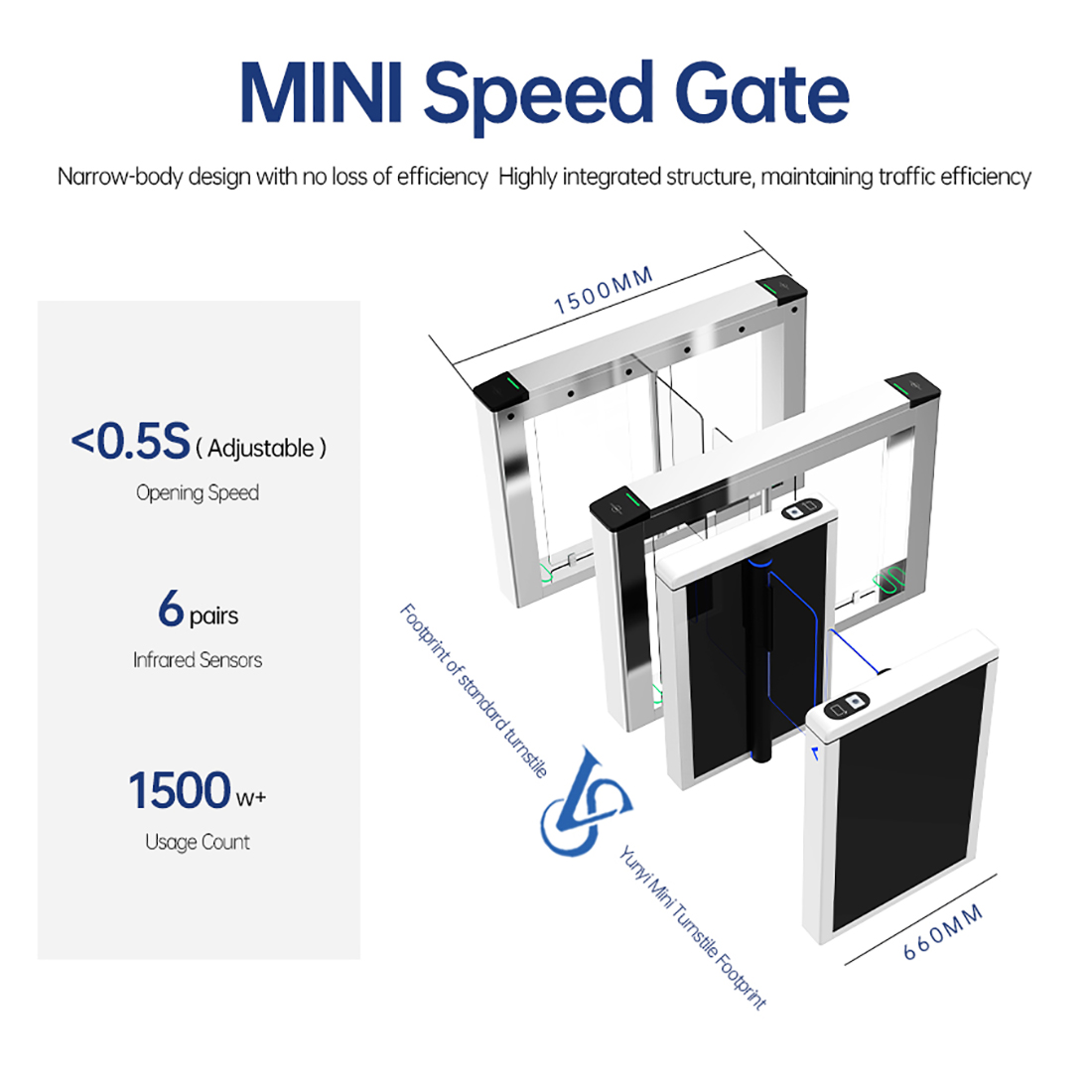

Dimensions
660×110×993mm (L×W×H)
Passage width
550mm - 900mm (Customizable)
Multifunctional customization
QR code ,Fingerprint ,card ,Face recognition,Smart Visitor ,Construction Attendance System,External LED screen etc.
Application scenarios
Commercial and public service places, campuses and enterprise parks, residential communities and smart buildings, etc.
For indoor or outdoor use?
indoor

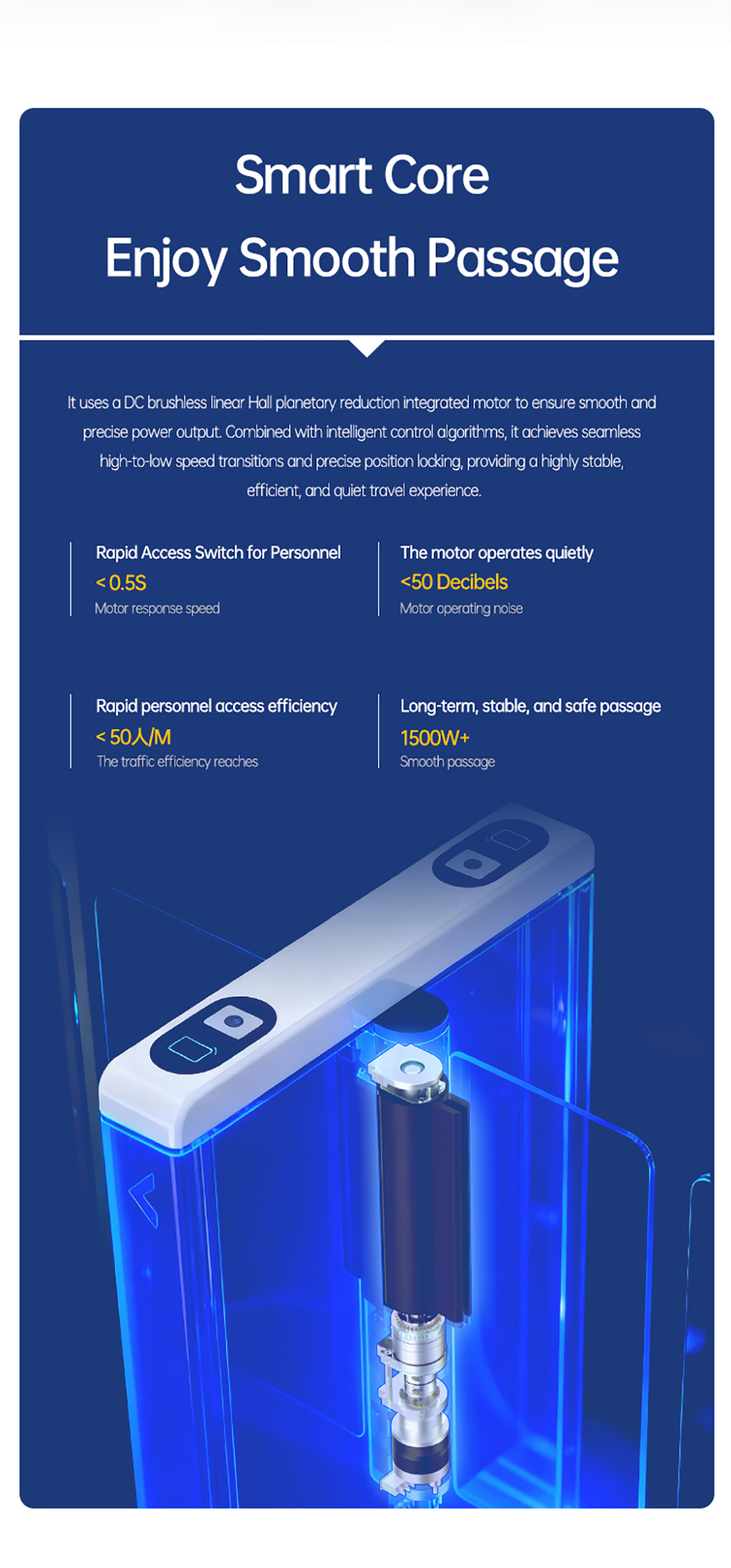

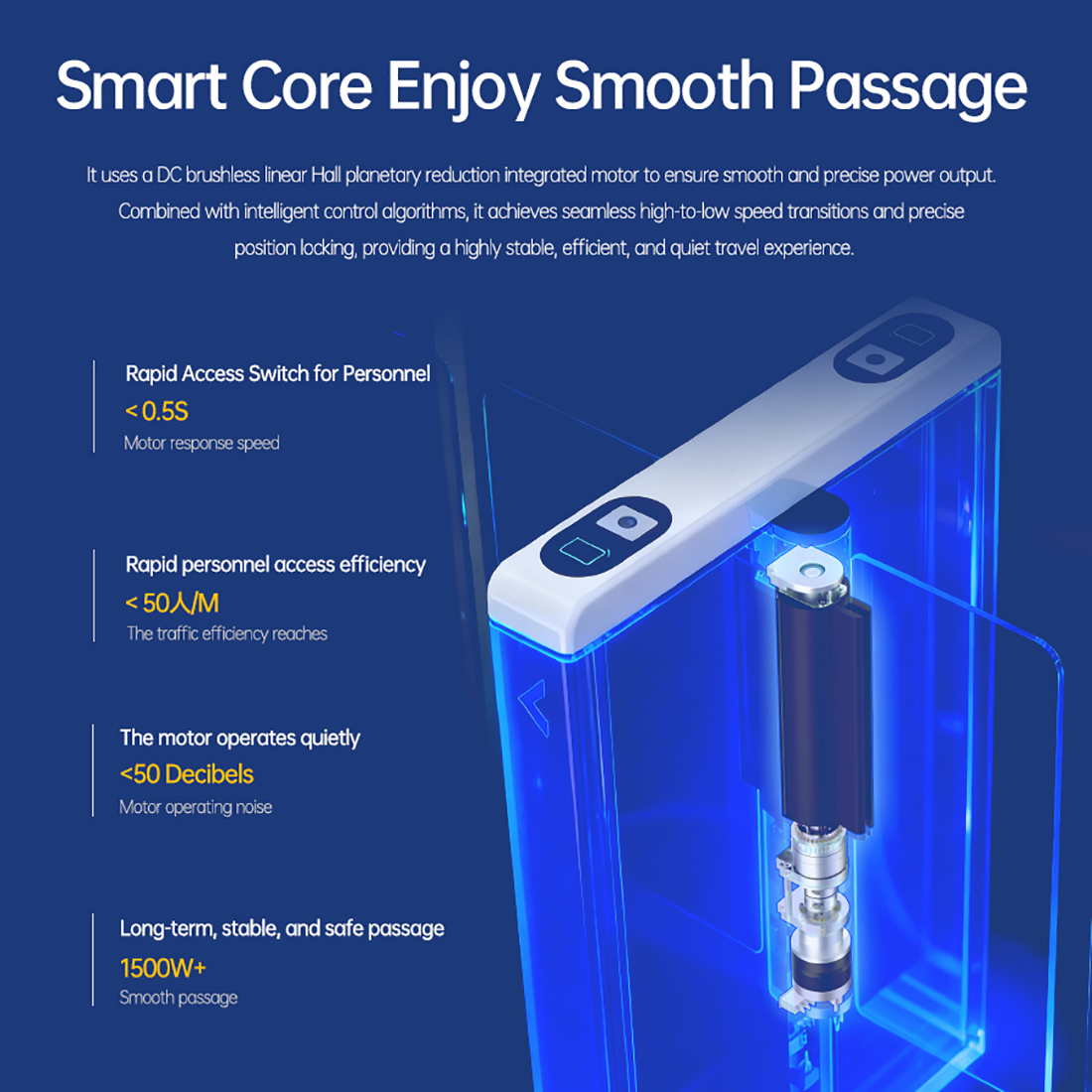

Motor Power
100W (Peak power: 350W)
Service Life
15 million continuous opening and closing cycles

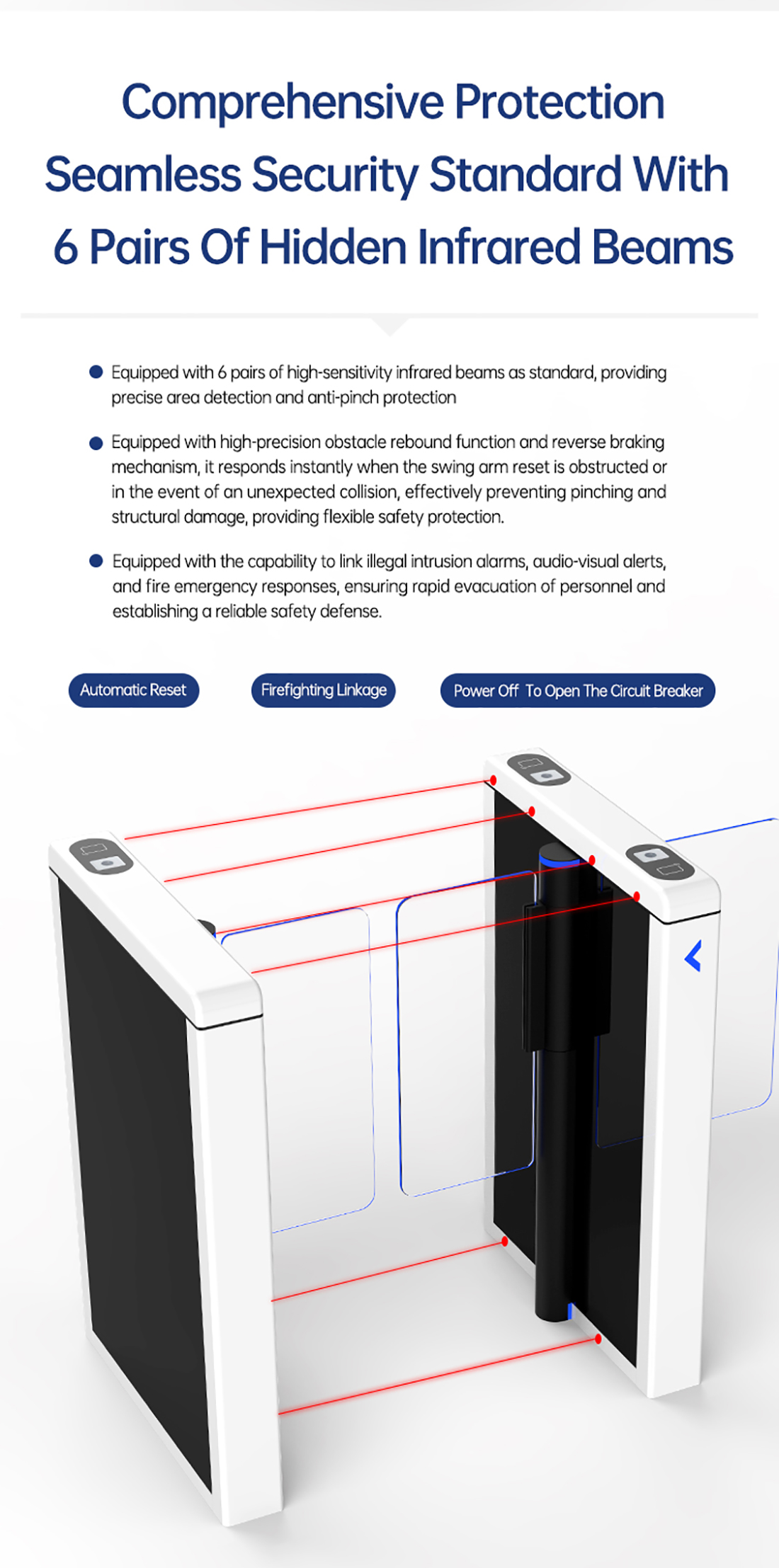

Infrared Sensors
6 pairs
Gate Opening Mode
RS485 / RS232 / IO
Gate Opening Speed
< 0.5S (Adjustable)
Passing Frequency
50 persons per minute
Power Supply:
DC24V 15A
Operating Environment
-20℃ ~ 75℃
Relative Humidity
0 ~ 90% (Non-condensing)
Movement options？
single movement or double movement are available.If you need a double movement, please contact us online.
Delivery time and freight？
We can ship as fast as within 2-7 days. Please provide your order information, and we will offer you a suitable freight rate and shipping time.
What is the price?
For an accurate quote, please provide us with more details product specifications（like logo or packaging customization requirements）,quantity preference,shipping address, etc.
Can I request product samples for testing before placing a bulk order?
Yes, we can provide samples. Please specify the product and quantity, and we'll arrange it.
Are samples available for free
I am sorry that the sample is not for free, we will have engineer cooperate with you.
Which shipping methods do you use?
We offer sea, air, and land freight as well as express delivery. The specific options depend on the quantity of the order.
What is the minimum order quantity?
Please specify the product type and any custom specifications you need so we can assist you further.





Shenzhen EASCO Intelligent Equipment Co., Ltd.

Established in December 2009, Shenzhen EASCO Intelligent Equipment Co., Ltd. is a national hightech enterprise specialized in R&D, manufacturing,
and sales of intelligent security hardware. With63 patents plus 5 software copyrights,
EASCO has emerged as a leading provider of smart access control solutions, focusing on turnstile gates that blend innovation, customization, and technical flexibility.


Core Turnstile Product Advantages

1. Customizable Access Modules

2. Support for Secondary Development，API & SDK

3. Customizable Baffle Designs & Materials

4.Custom Advertising Deployment

5. High quality aluminum alloy as the main material


Enterprise Strengths

1.Certified with ISO quality management system and recognized as a Guangdong Provincial Innovative SME.

2.Core technologies include contactless circuit control and anti-crushing protection for turnstiles.

3.Products serve global clients with annual revenue of 5-10 million USD, exported to over 20 countries.

4.Professional R&D team provides one-stop customization services from design to after-sales support.


EASCO’s turnstile gates combine industrial-grade reliability with flexible customization, making them the preferred choice for smart access control projects worldwide.
