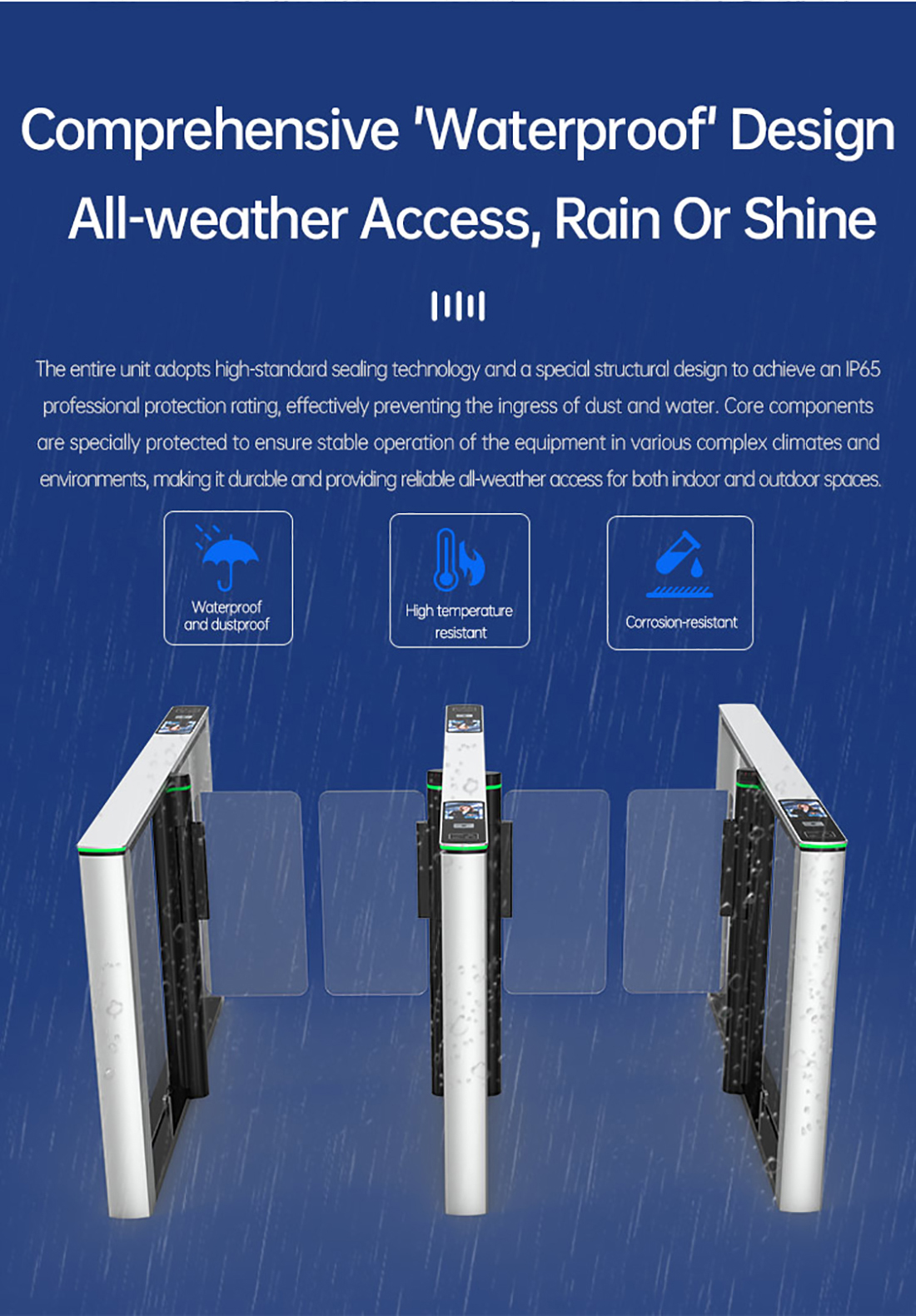

Water-resistant Face+card reading+QR code recognition Android Speed Gate
video
    video
    • 1/7

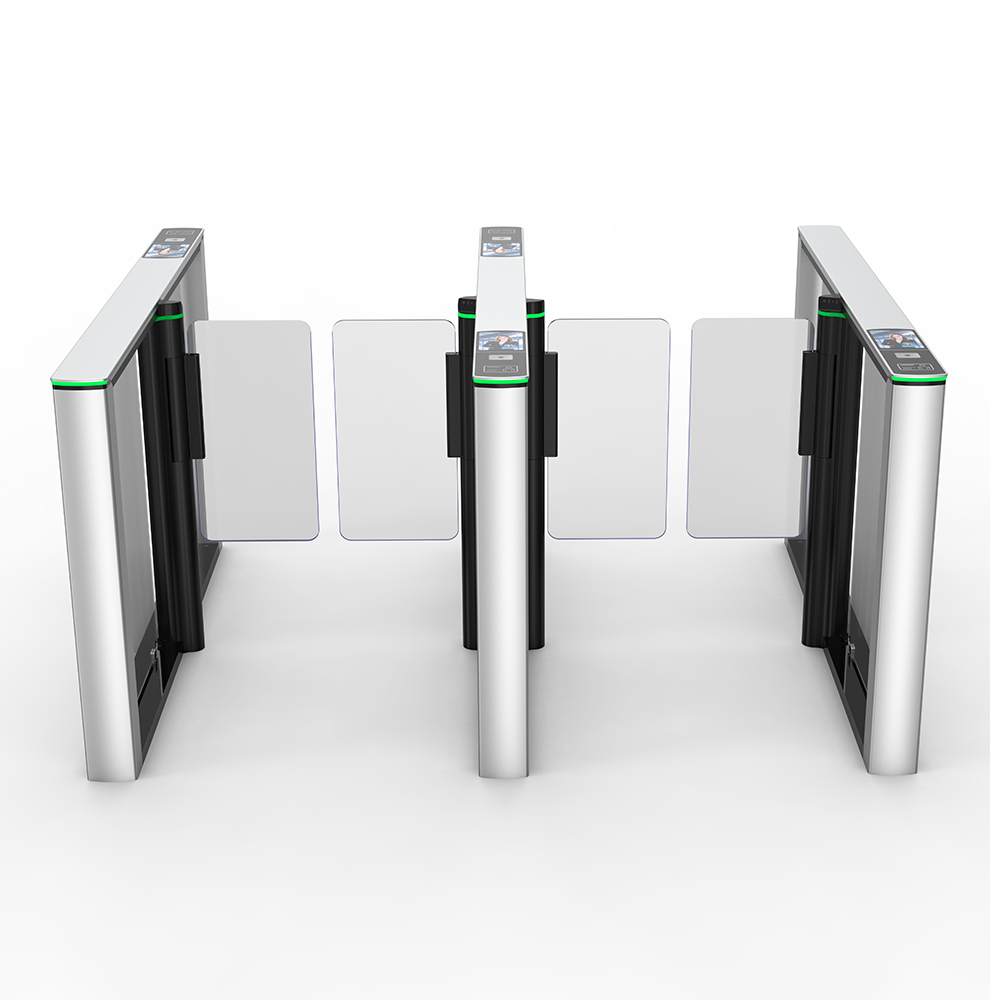

Water-resistant Face+card reading+QR code recognition Android Speed Gate

share
copy Link
Facebook
X
LinkedIn
Pinterest
Chassis Material Integrally die-cast aluminum alloy
Swing Gate Material Acrylic
Channel Width 550mm-1200mm (Customizable)
Motor Power 100W (Peak Power: 350W)
Service Life 15 Million Continuous Open/Close Cycles
Brand Easco

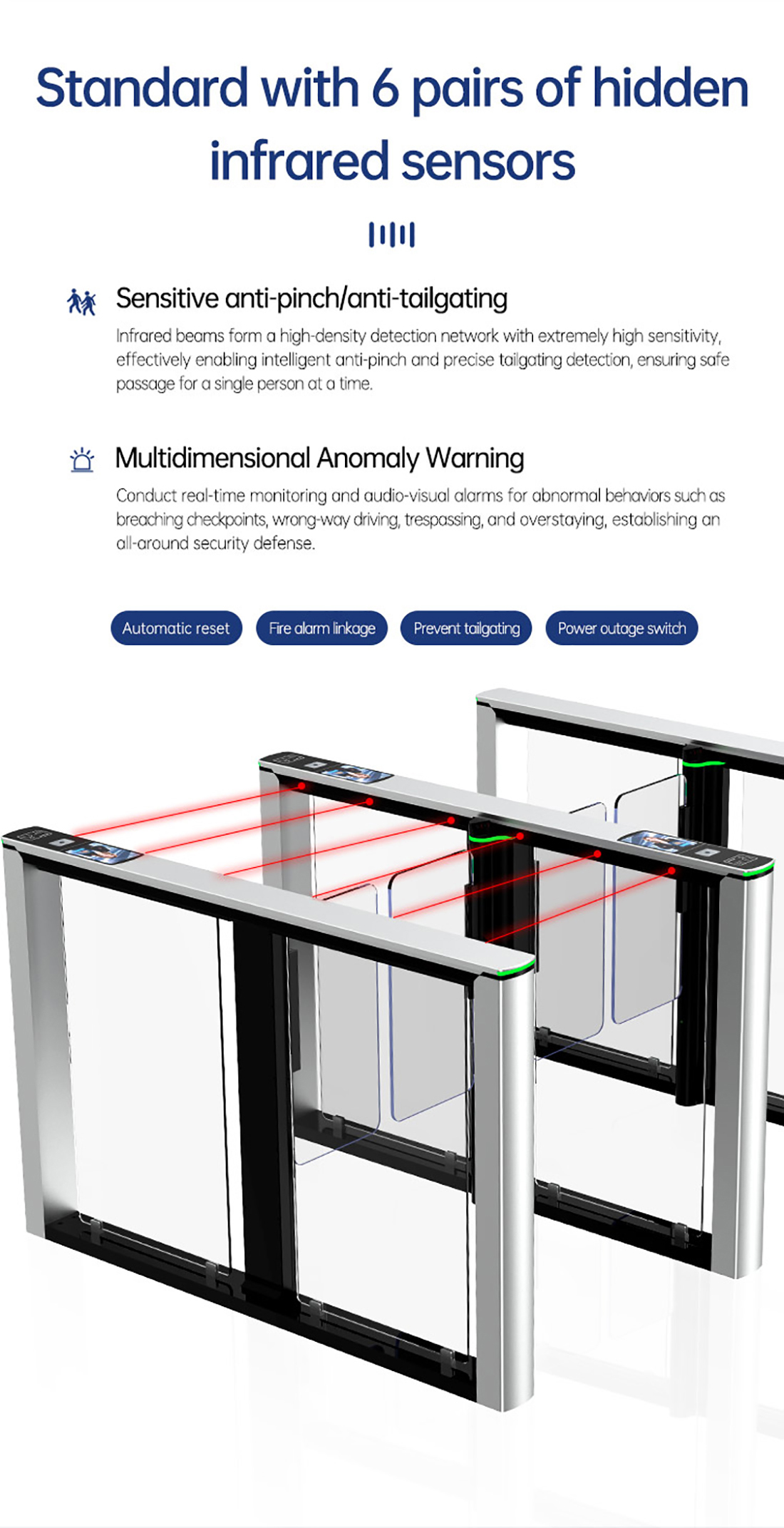

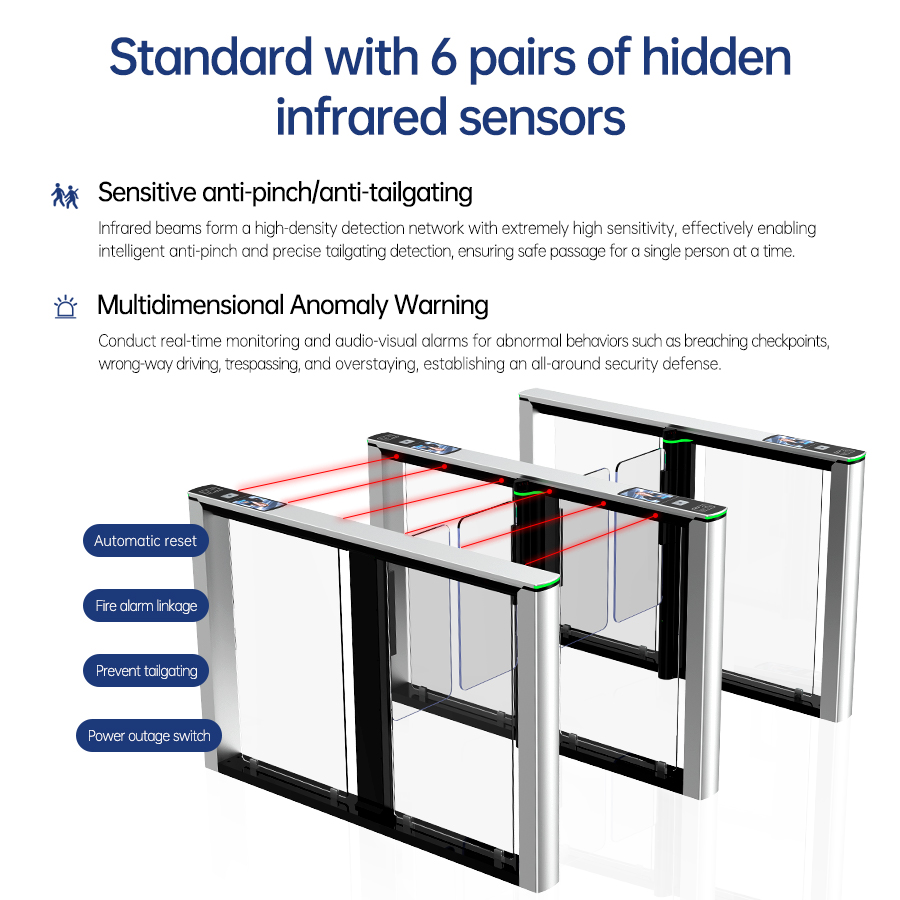

Infrared Sensors 6 Pairs (7 Pairs Optional)
Gate Opening Interfaces RS485/RS232/IO
Gate Opening Speed <0.5S (Adjustable)
Passage Rate 50 Persons/Minute
Application Environment indoor/outdoor
Warranty 1 Year
Chat for more Info
Leave your message
DetailProduct ParametersProduct DimensionCompany InformationPackaged and shipped

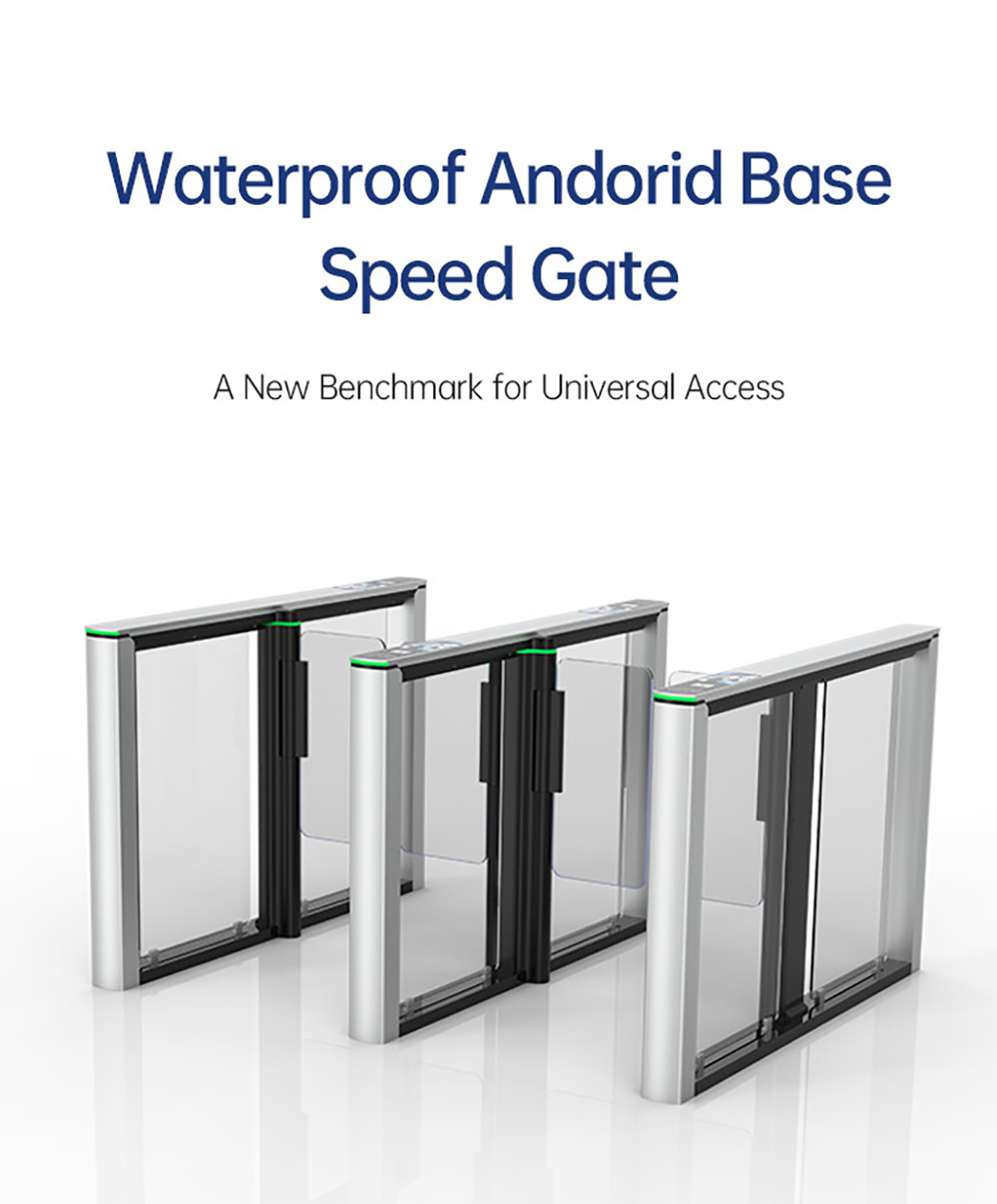

星耀英文_01.jpg星耀英文_01-1.jpg星耀英文_02.jpg星耀英文_03.jpg星耀英文_03-1.jpg星耀英文_04 -1.jpg星耀英文_04.jpg星耀英文_05 -1.jpg星耀英文_05.jpg星耀英文_06.jpg

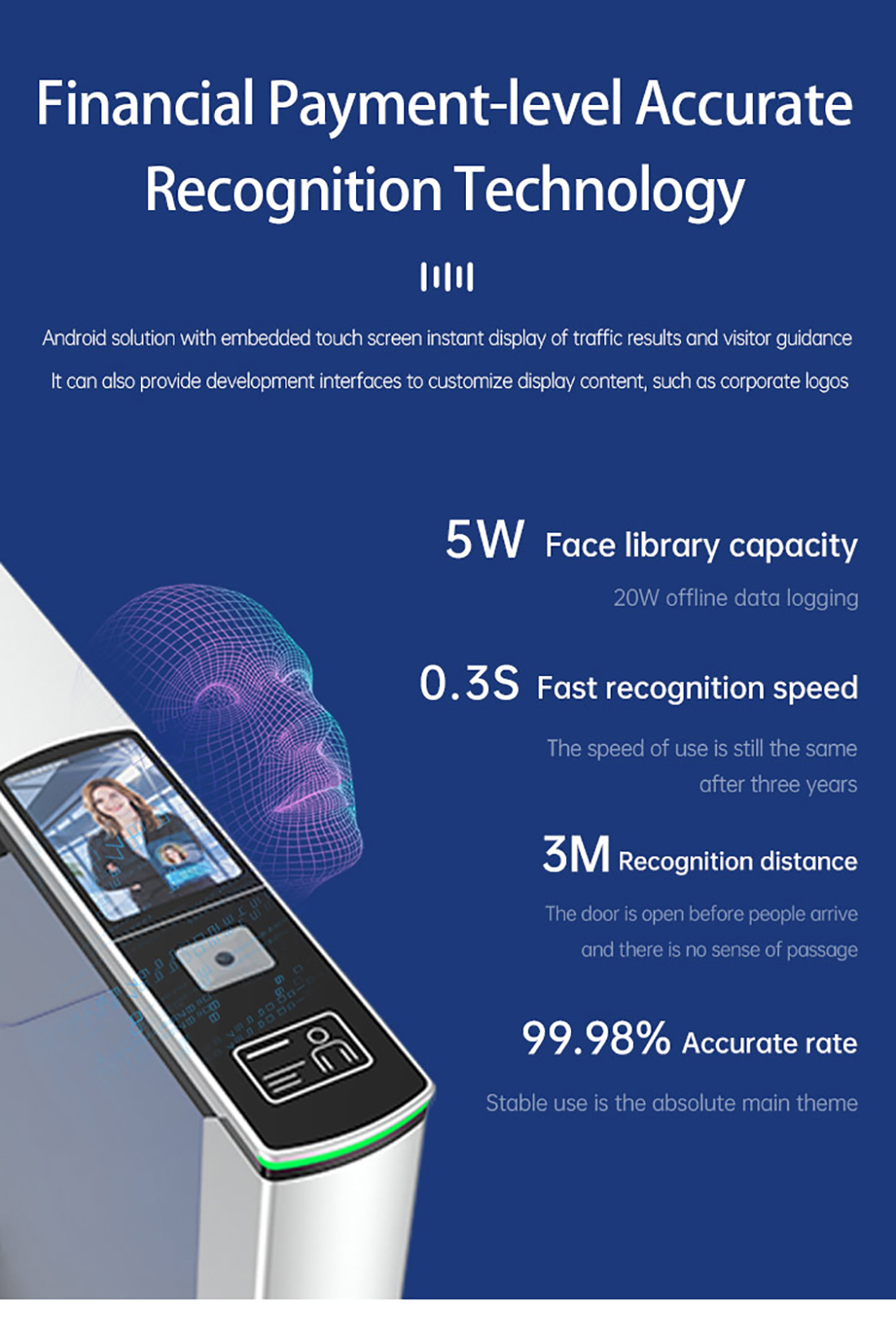

Face Recognition Parameters
Operating System
Android
RAM
2GB
Storage
32GB
LCD
7-inch, Resolution 800×1280
Camera
2MP HD, Wide Dynamic Range (WDR)
Face Capacity
50,000 faces
Offline Records
100,000 records with photos; 1,000,000 records without photos
Recognition Distance
0.5m - 3m
Liveness Detection
Supported, Infrared Sensing
Recognition Speed
200 - 300ms
Turnstile Parameters
Chassis Material
Integrally die-cast aluminum alloy; top cover thickness: 6mm, column wall thickness: 3mm
Swing Gate Material
Acrylic
Channel Width
550mm-1200mm (Customizable)
Drive Motor

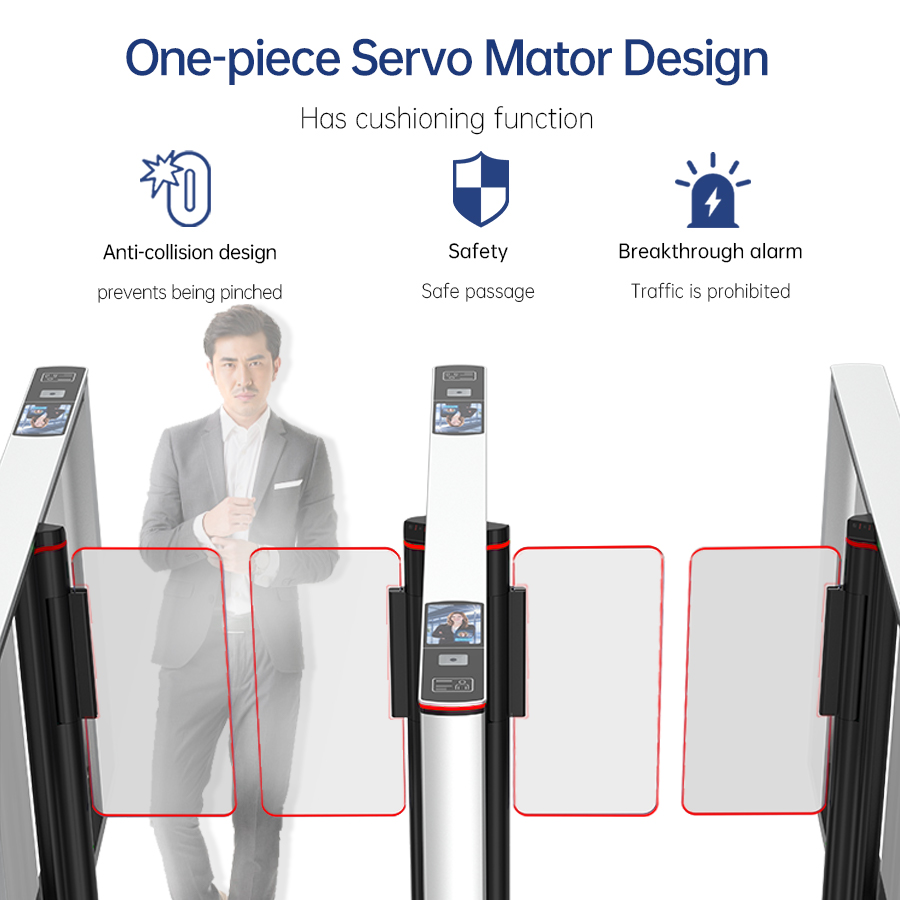

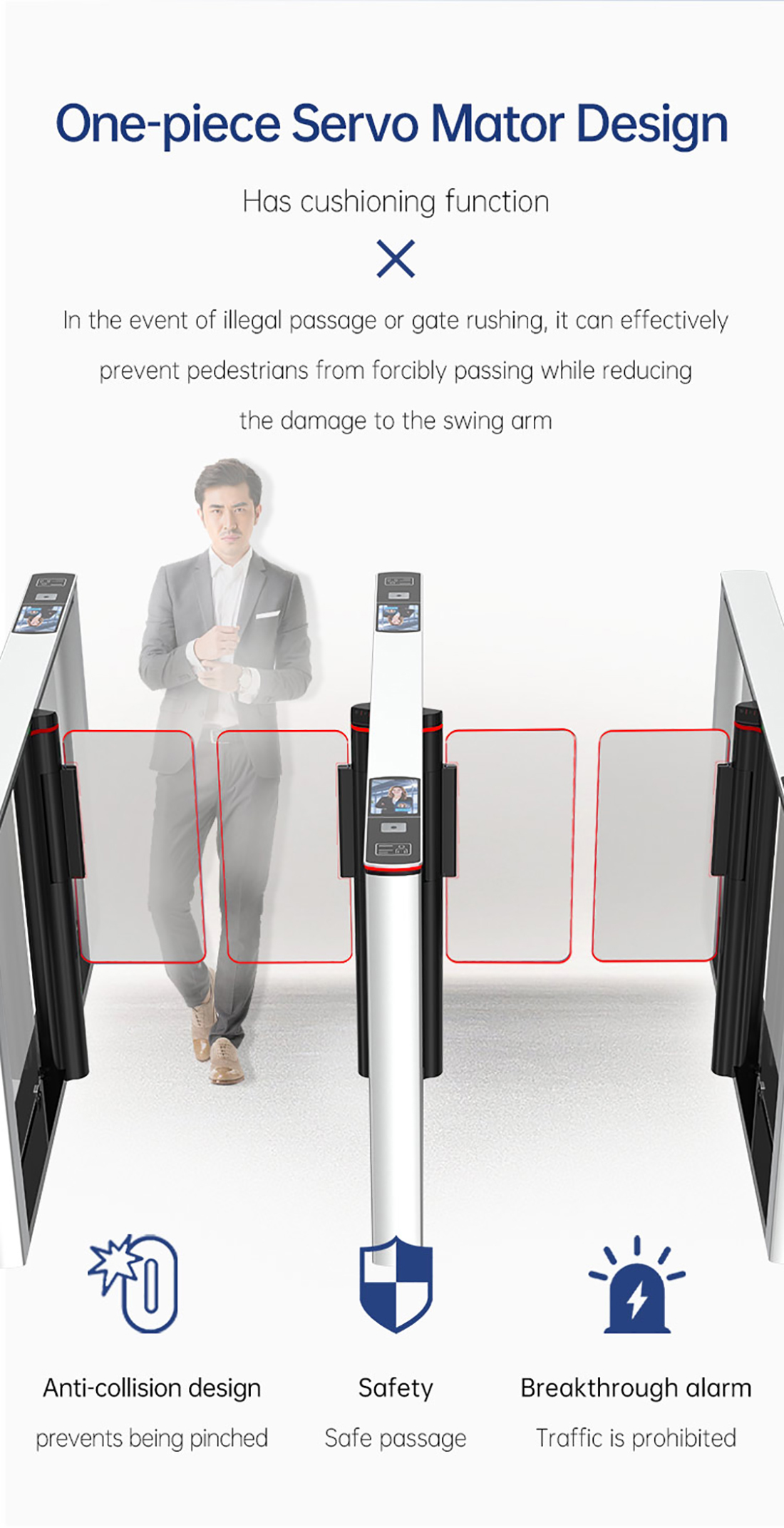

DC Brushless Motor with Linear Hall Sensor + Planetary Gearbox Integrated Unit
Motor Power
100W (Peak Power: 350W)
Service Life
15 Million Continuous Open/Close Cycles
Infrared Sensors
6 Pairs (7 Pairs Optional)
Gate Opening Interfaces
RS485/RS232/IO
Gate Opening Speed
＜0.5S (Adjustable)
Passage Rate
50 Persons/Minute
Power Supply
DC24V 15A
Operating Temperature
-20℃～75℃
Relative Humidity
0～90% (No Condensation)
Application Environment
Indoor/Outdoor

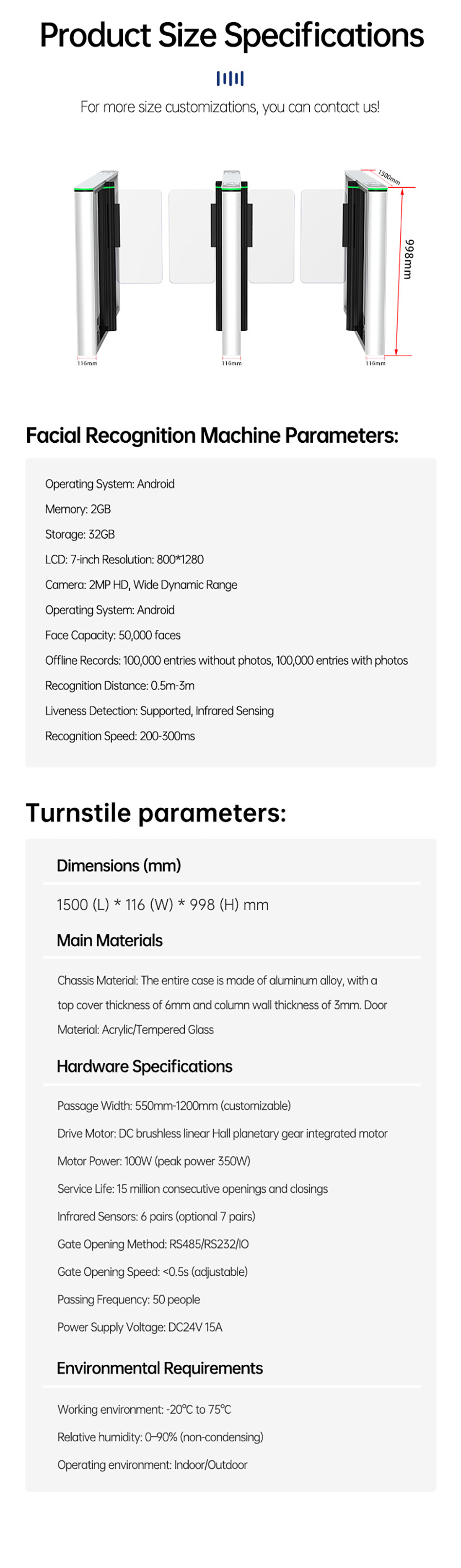

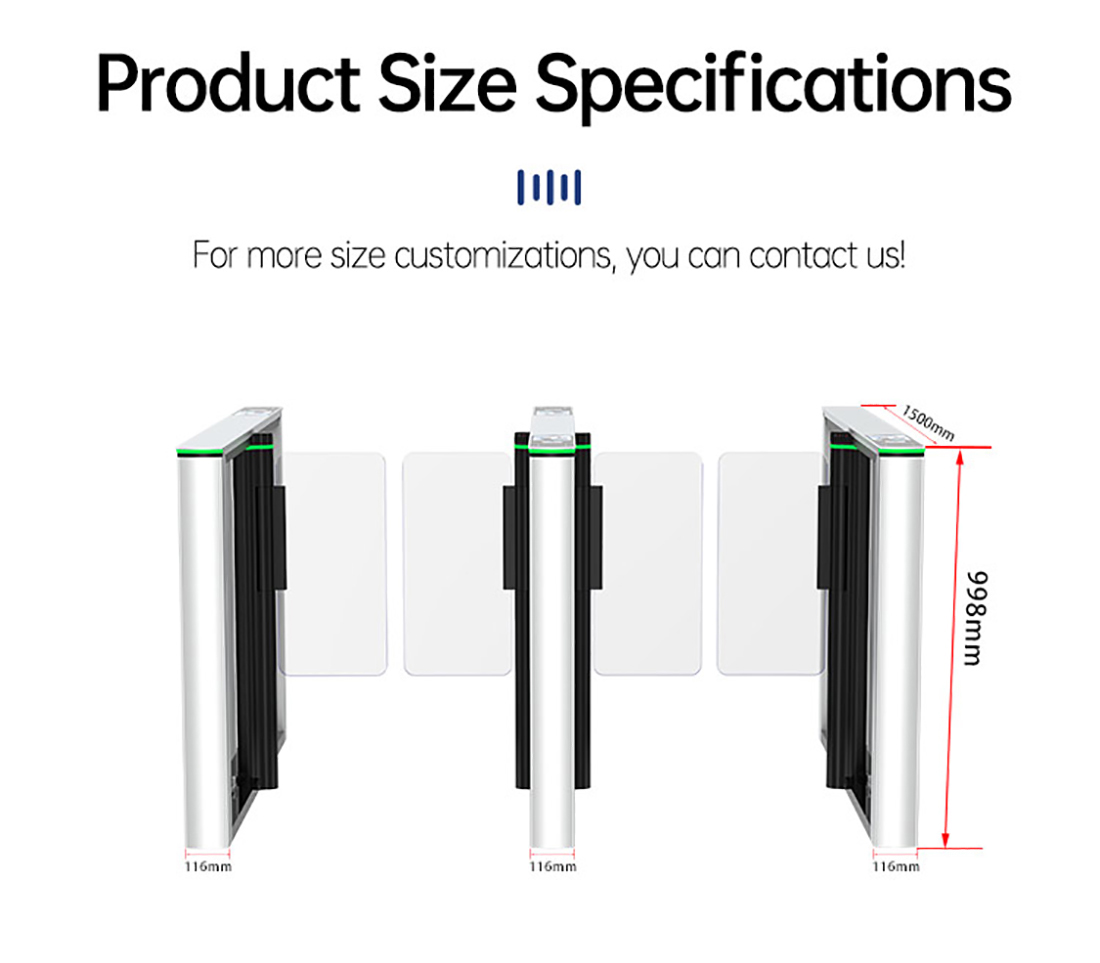

Product Dimensions
1500*116*988mm
